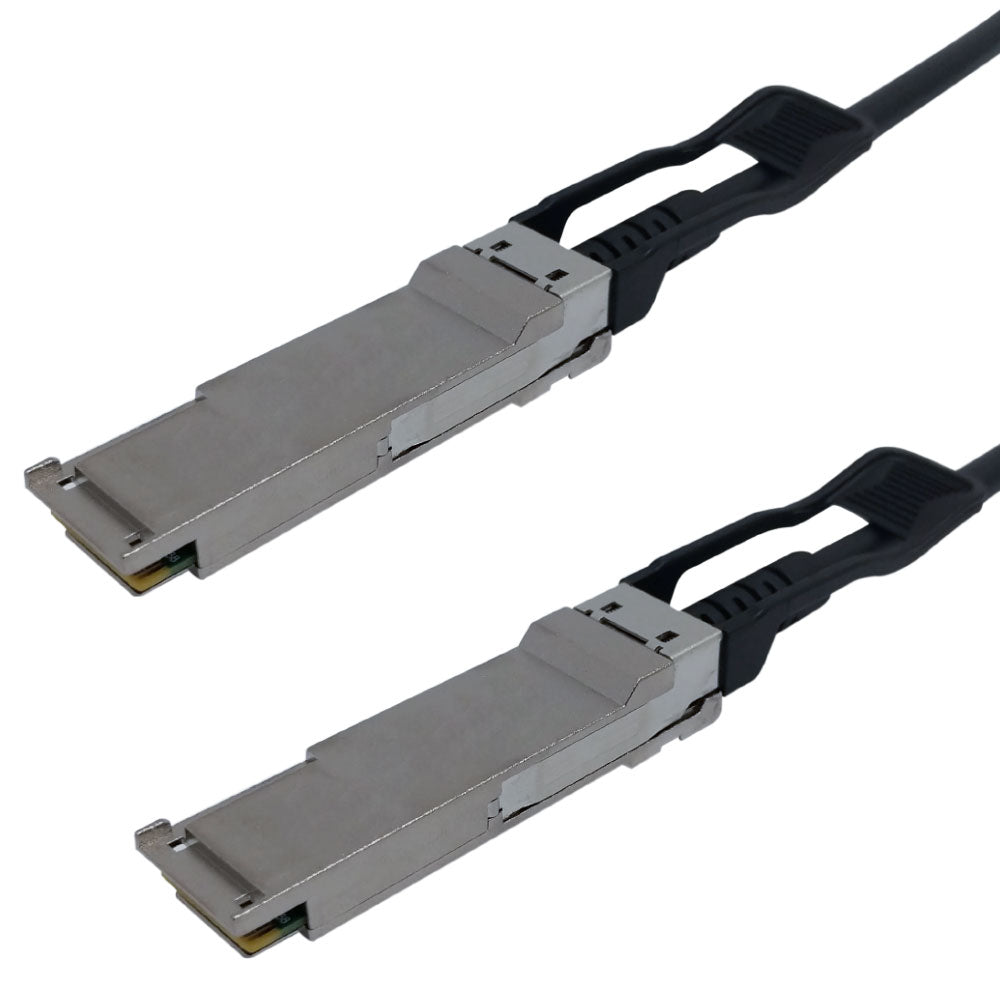

Name: QSFP+ (SFF-8436) to QSFP+ (SFF-8436) Cable - 28AWG
Brand: QSFP+ Cables
SKU: MS-500-0.5M
Price: 34.95 CAD
Availability: InStock

Description
Spec Sheets
Warranty
Product Weights

Description

This QSFP+ passive InfinitBand copper cable has a QSFP+ (SFF-8436) connector on both ends. It is typically used to directly attach switches/servers in point to point applications.

Physical Characteristics
Impedance	100±5 ohm
Application	Support 40G Infiniband, QDR/DDR/SDR Applications
Wire Gauge	28AWG
Cable Jacket Material	PVC
Contact Plating	Gold Plated
Connector Material	Zinc Die Cast, Nickel Plated Back Shells
Connectors
Connector A	QSFP+ (SFF-8436)
Connector B	QSFP+ (SFF-8436)
Environmental
RoHS	Yes
Packaging Information
Packaging Quantity	1 Cable
Warranty Information
Warranty	5 Year Warranty

Cable Weights
0.5m	1m	2m	3m	5m	7m
0.15 lbs [0.06kg]	0.35 lbs [0.1kg]	0.5 lbs [0.2kg]	0.65 lbs [0.2kg]	1.2 lbs [0.5kg]	1.4 lbs [0.6kg]

Spec Sheets

Download Spec Sheet - MS-500-xx

Download Spec Sheet - MS-501-xx

Download Spec Sheet - MS-504-xx

REACH Certificate

RoHS Certificate

Warranty

5-YEAR WARRANTY

Infinite Cables Inc. offers a 5-year warranty on SFP+/QSFP+ Cables & Transceivers to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

Product Weights

SKU	Options	Weight
MS-500-0.5M	0.5m / Generic	0.35 lb
MS-501-0.5M	0.5m / Cisco	0.35 lb
MS-504-0.5M	0.5m / Juniper	0.35 lb
MS-500-1M	1m / Generic	0.5 lb
MS-501-1M	1m / Cisco	0.5 lb
MS-504-1M	1m / Juniper	0.5 lb
MS-500-2M	2m / Generic	0.65 lb
MS-501-2M	2m / Cisco	0.65 lb
MS-504-2M	2m / Juniper	0.65 lb
MS-500-3M	3m / Generic	1.2 lb
MS-501-3M	3m / Cisco	1.2 lb
MS-504-3M	3m / Juniper	1.2 lb
MS-500-5M	5m / Generic	1.4 lb
MS-501-5M	5m / Cisco	1.4 lb
MS-504-5M	5m / Juniper	1.4 lb
MS-500-7M	7m / Generic	1.75 lb
