Premium Phantom Cables DB25 Male to 8 x RCA Male 8-channel Snake cable (Tascam pinout)

Snake CablesSKU: S8-25-RCA-03TAS

Length: 3ft
Price:
Sale price$75.20 CAD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com

Description

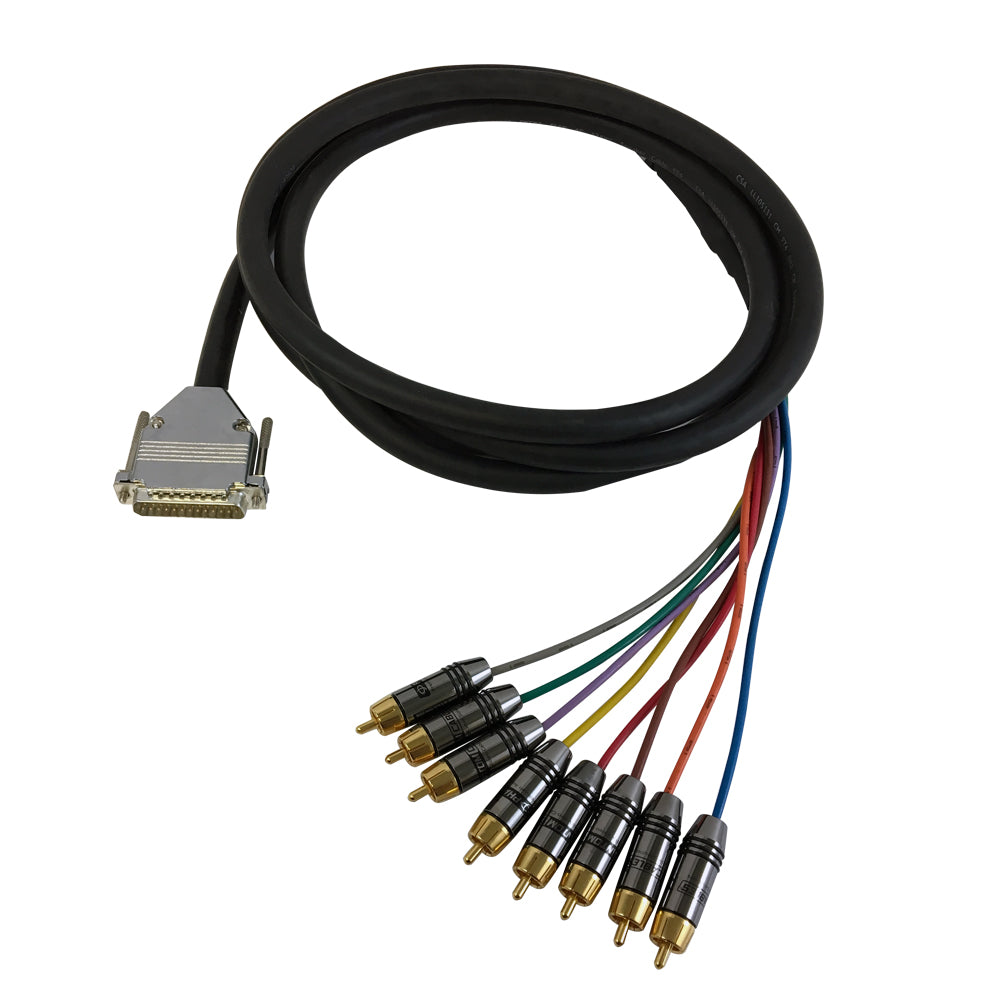

This audio snake cable has a DB25 male on one end and eight RCA males on the other. It has a TASCAM pinout and is typically used to connect a 7.1 surround sound source to a preamp or receiver.

  • Premium twisted 24 awg Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
  • Dual 100% aluminum Mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • High quality, gold plated shielded connectors allow for optimum connectivity and maintain a clean signal integrity
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color Black
Contact Plating (DB25) Gold
Connector Plating Gold
Cable Shielding Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil
Wire Gauge 24AWG
Pinout TASCAM
Connectors
Connector A 1 - DB25 Male
Connector B 8 - RCA Male
Environmental
RoHS Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft 35ft 50ft
1.95 lbs 2.40 lbs 3.00 lbs 3.75 lbs 5.25 lbs 6.75 lbs 9.00 lbs
