Description

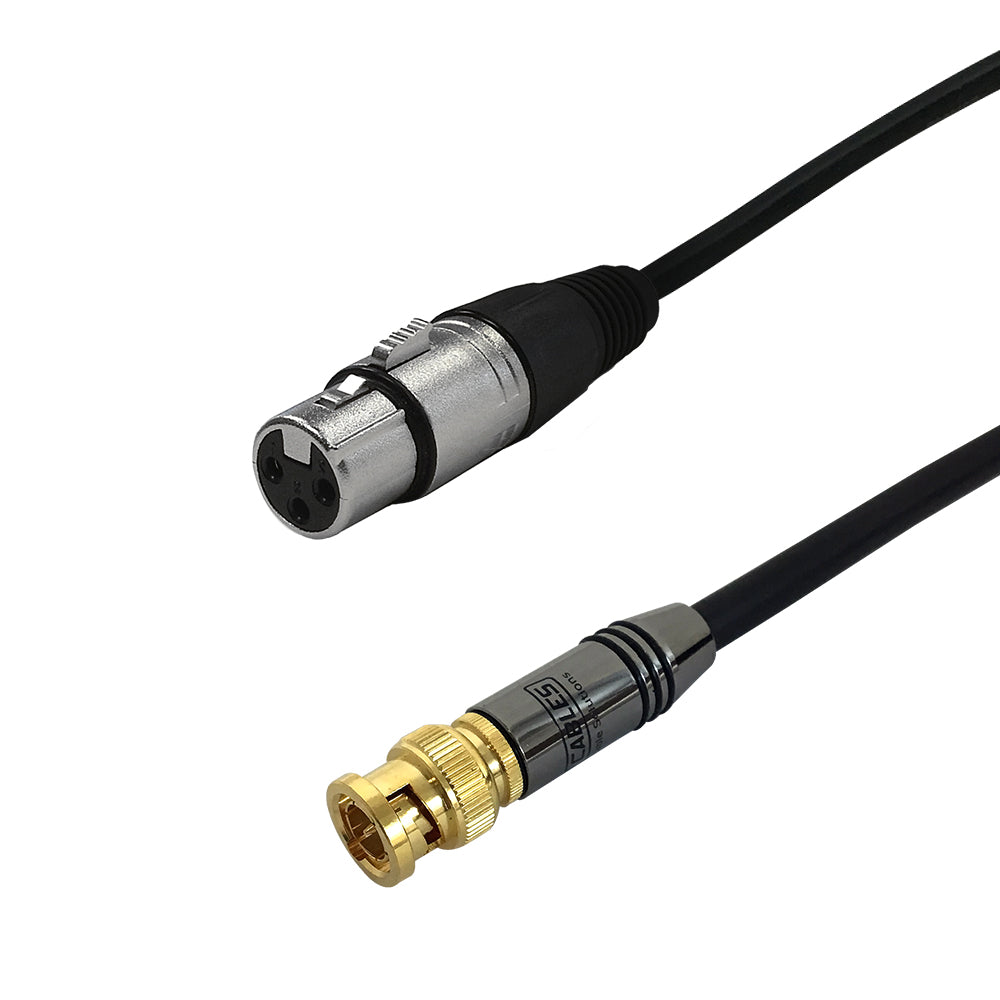

This premium time code cable has a XLR female on one end and a BNC male on the other. It is typically used in broadcast video applications.
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 5.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 90% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Strain Relief | Metal Shell |
Connectors | |
| Connector A | 1 - BNC Male |
| Connector B | 1 - XLR Female |
Approvals | |
| cUL | Yes - Cable |
Environmental | |
| RoHS | Yes |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs |
