Description

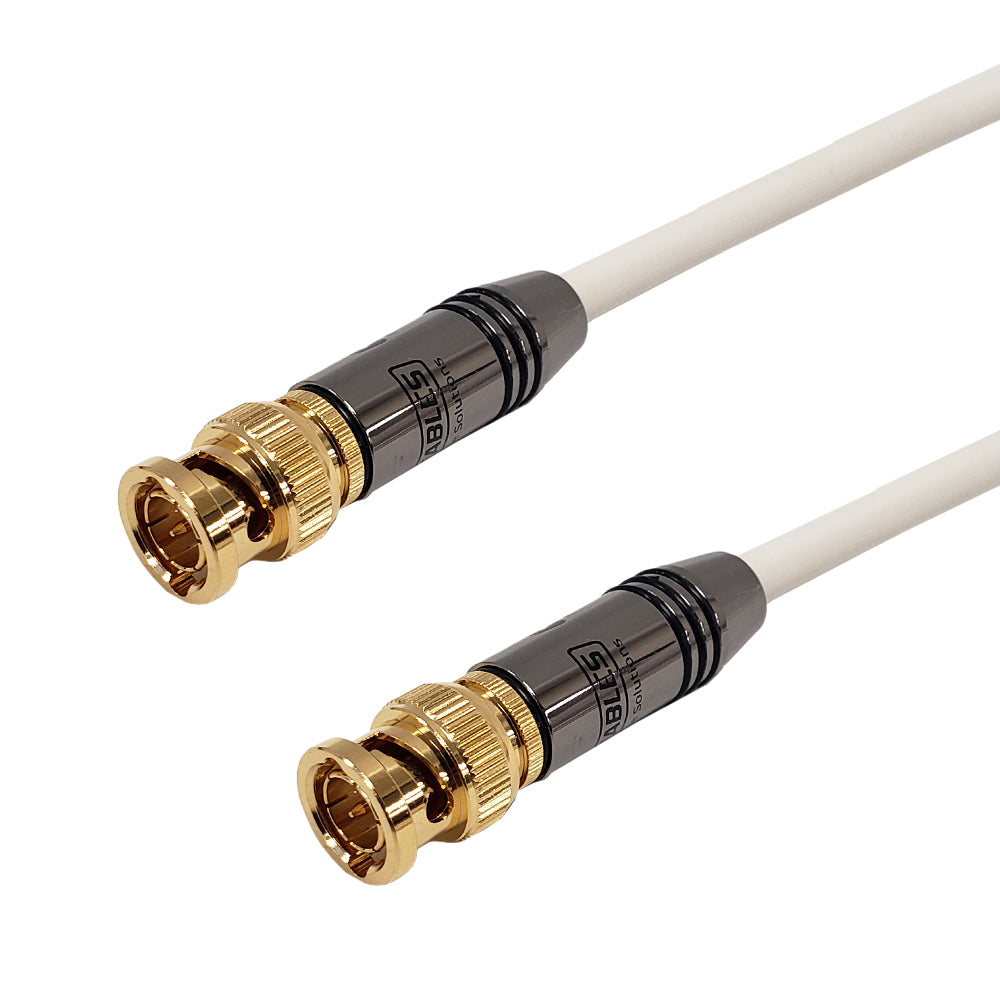

This plenum rated BNC composite cable consists of BNC male connectors on both ends. It is typically used to connect a video cameras BNC composite output to a monitors BNC composite input.
- Constructed shielded 75 ohm RG6 solid 18AWG cable
- Cable jacket is CMP plenum rated
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
|---|---|
| Color | White |
| Connector Plating | Gold |
| Cable Type | RG6 75 Ohm CCS |
| Wire Gauge | 18AWG Solid |
| Jacket Material | CMP Plenum Rated |
| Fire Rating | CMP |
Connector(s) | |
| Connector A | 1 - BNC Male |
| Connector B | 1 - BNC Male |
Environmental | |
| RoHS | Yes |
Packaging Information | |
| Package Quantity | 1 - Cable |
Warranty Information | |
| Warranty | Limited Lifetime |
| 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|
| 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs | 6.50 lbs | 7.75 lbs |
