Description

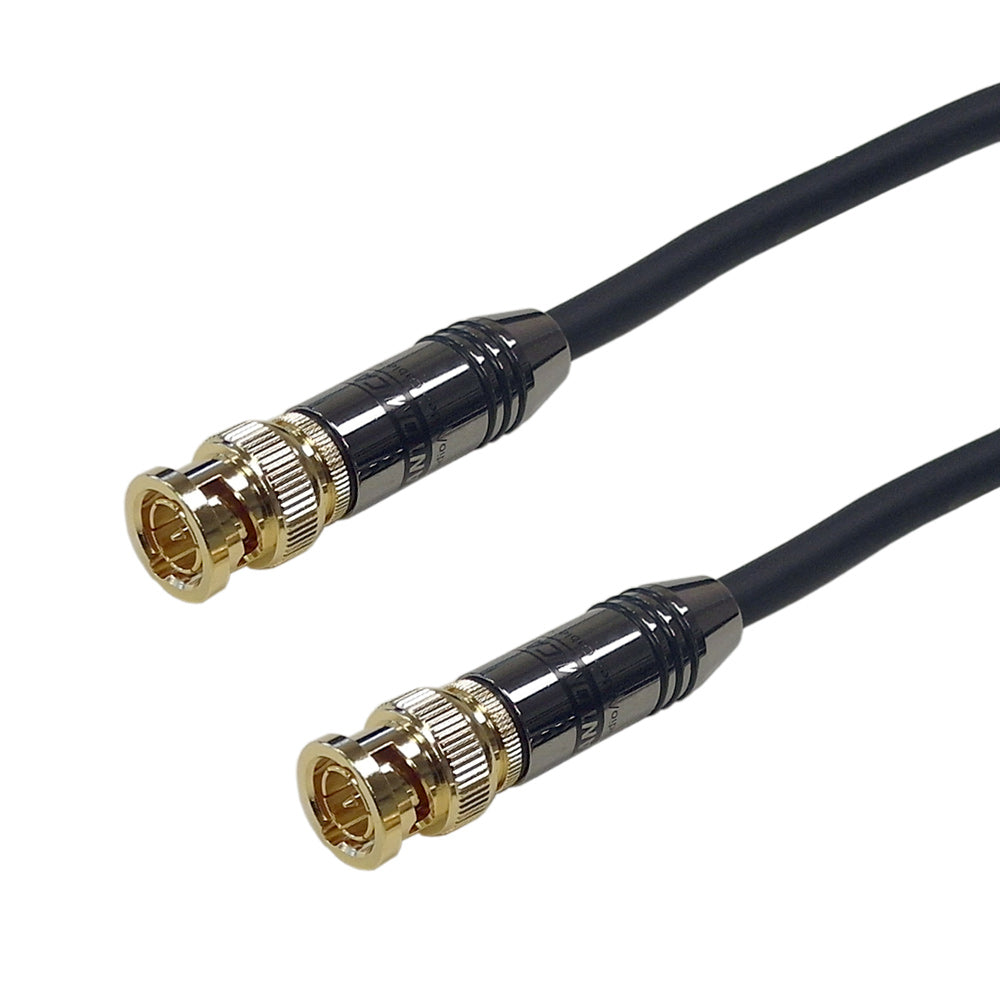

This premium double shielded RG6 cable consists of BNC male connectors on both ends. It is typically used to connect a video cameras BNC composite output to a monitors BNC composite input.
- Constructed of low-loss, High Definition 75 ohm RG6 solid 18 awg cable
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Cables nominal capacitance is an exceptional 17.3 pf/ft and has a nominal attenuation of 3.10 dB/100ft @ 200Mhz
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Type | RG6 |
| Cable Diameter | 6.86mm |
| Wire Gauge | 18AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | Dual Shielding 100% aluminum/mylar foil, plus a 95% tinned copper braid |
| Connectors | |
| Connector A | BNC Male |
| Connector B | BNC Male |
| Approvals | |
| c(UL)us | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.40 lbs | 0.55 lbs | 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs | 6.50 lbs | 7.75 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
