Description

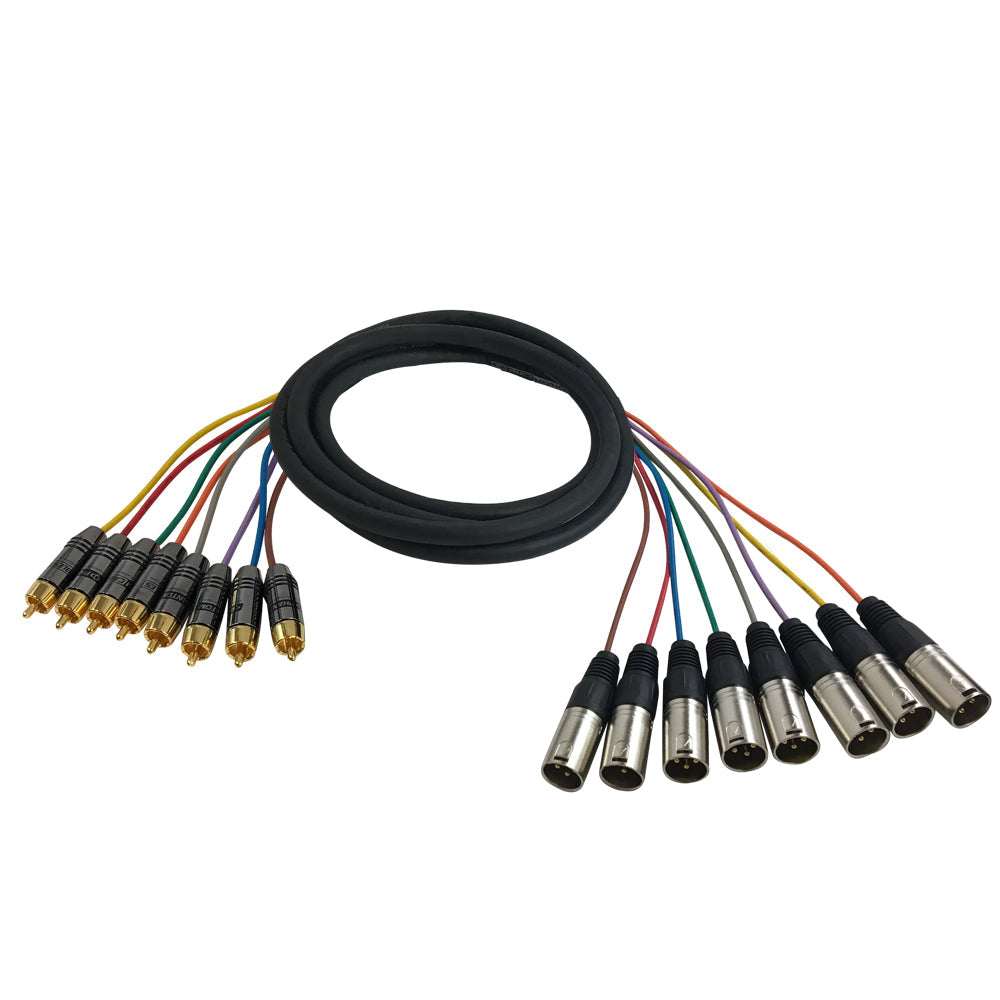

This audio snake cable has eight RCA male on one end and eight XLR males on the other. It is typically used to connect mixing consoles and patch bays.
- Premium twisted 24AWG Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
- Dual 100% aluminum mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- High quality, gold plated connectors allow for optimum connectivity and maintain a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating (RCA) | Gold |
| Contact Plating (XLR) | Gold |
| Cable Shielding | Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil |
| Wire Gauge | 24AWG |
| Jacket Fire Rating | FT4 (Riser) |
Connectors | |
| Connector A | 8 - RCA Male |
| Connector B | 8 - XLR Male |
Environmental | |
| RoHS | Yes |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|
| 2.20 lbs | 2.65 lbs | 3.25 lbs | 4.00 lbs | 5.50 lbs | 7.00 lbs | 9.95 lbs |
