Description

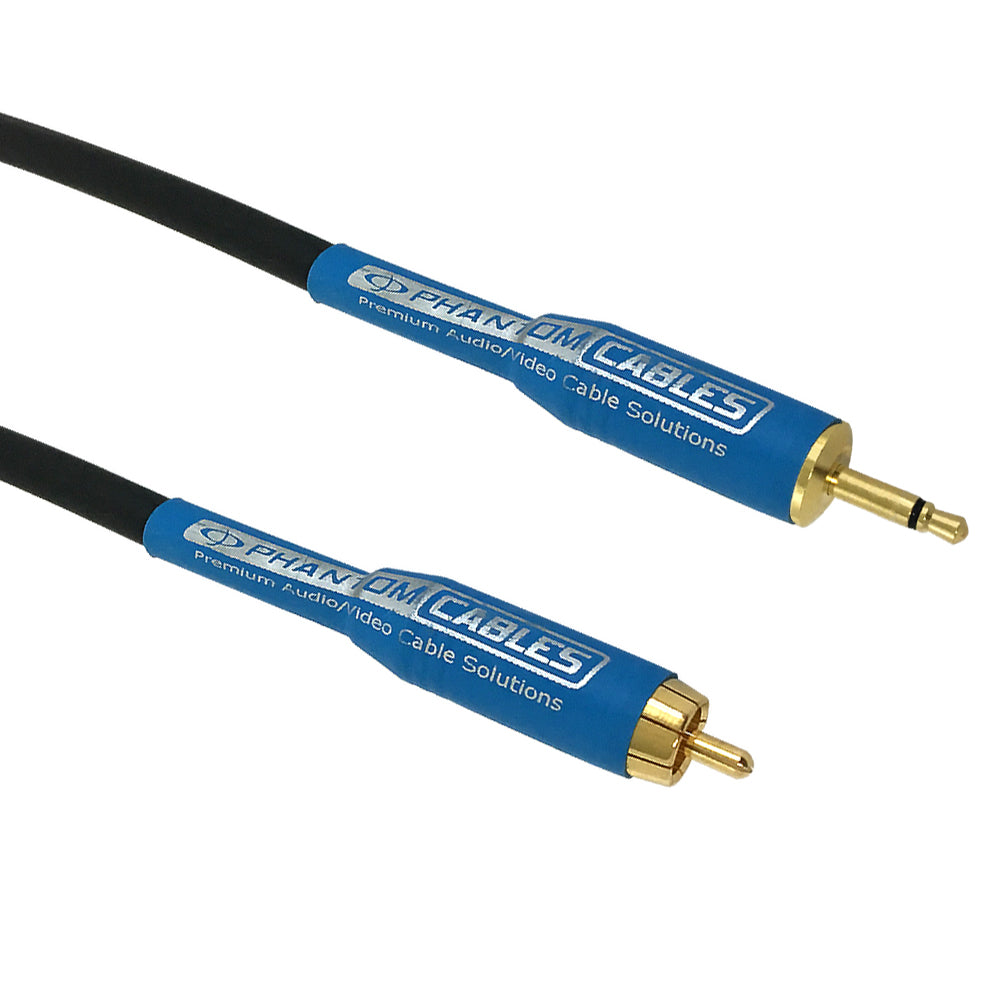

This digital audio cable has a RCA male on one end and a 3.5mm mono male on the other. It is typically used to connect a 3.5mm digital audio output of a PC to digital coax RCA input of surround sound system.
- Constructed of double shielded, 75 ohm, RG6, 18 awg, digital coax cable for ultra crisp sounding digital audio
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Cables nominal capacitance is an exceptional 17.3 pf/ft and has a nominal attenuation of 3.10 dB/100ft @ 200Mhz
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Type | RG6 |
| Cable Diameter | 6.86mm |
| Wire Gauge | 18AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | Dual Shielding 100% Aluminum/Mylar Foil, Plus a 95% Tinned Copper Braid |
Connectors | |
| Connector A | RCA Male |
| Connector B | 3.5mm Mono Male |
| Connector A Diameter | 12.7 mm |
| Connector B Diameter | 12.7 mm |
Approvals | |
| cUL | Yes - Cable |
Environmental | |
| RoHS | Yes |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.35 lbs | 0.40 lbs | 0.55 lbs | 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs |
