Description

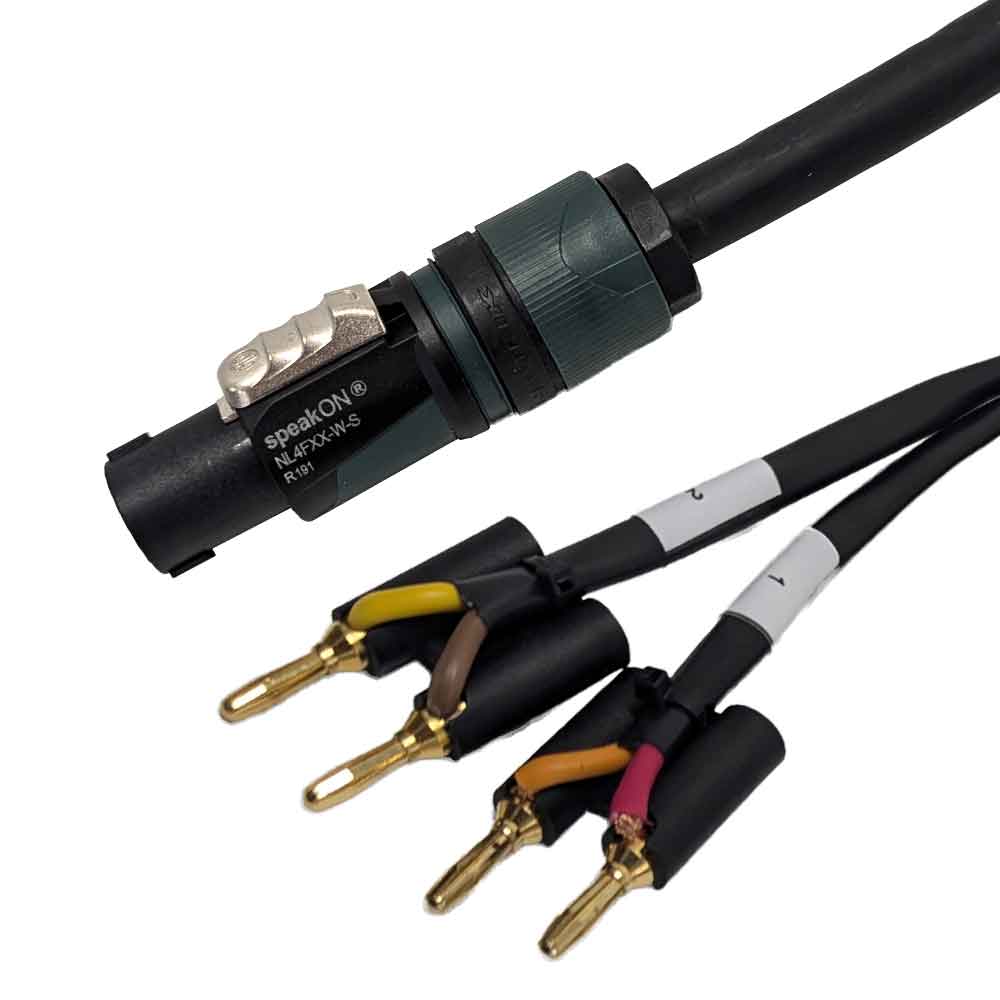

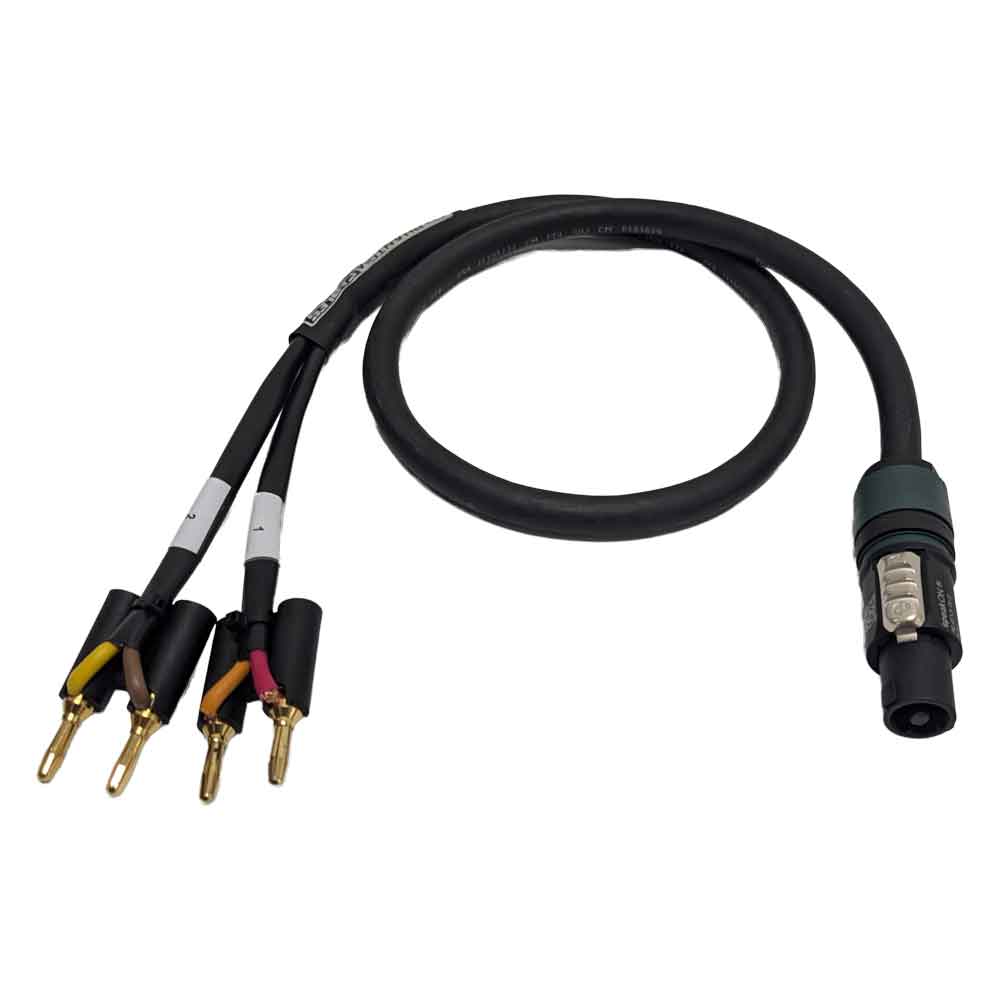

This audio speaker cable has a 4-pole speakON male on one end and two dual banana clip males on the other. It is typically used to connect pro audio speakers to an amplifier.
- A hi-flex jacket combined with a multi-stranded heavy cable allows for extra cable flexibility and no sacrifice in audio quality
- 14 gauge OFHC (Oxygen Free Copper) conductors achieve maximum sound clarity
- Multi-stranded copper cable is used to capture all the highs & lows for optimum audio performance
- Four conductor twisted cable construction enhances signal timing accuracy
- Premium Neutrik 4-pole speakON connector (NL4FX)
- Premium REAN (NYS508-B) dual banana clips
Available options
| Wire Gauge | Overall Cable Diameter |
| 4C 14AWG Stranded 80/0.18 | 10.7mm |
| 4C 12AWG Stranded 7/50/0.12 | 14.5mm |
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating (speakON) | Silver |
| Connector Plating (Banana) | Gold |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
|
Connectors
|
|
| Connector A | 1 - 4-Pole Neutrik speakON NL4FX |
| Connector B | 2 - Banana Clip Pair Black |
|
Environmental
|
|
| RoHS | Yes |
|
Certifications
|
|
| cUL | Yes - Cable |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14AWG | 1.20 lbs | 1.65 lbs | 2.25 lbs | 3.00 lbs | 4.50 lbs | 6.00 lbs | 8.25 lbs | 12 lbs | 19.50 lbs | 13.00 lbs | 23.25 lbs |
| 12AWG | 1.35 lbs | 1.95 lbs | 2.75 lbs | 3.75 lbs | 5.75 lbs | 7.75 lbs | 10.75 lbs | 15.75 lbs | 20.75 lbs | 25.75 lbs | 30.75 lbs |
