Description

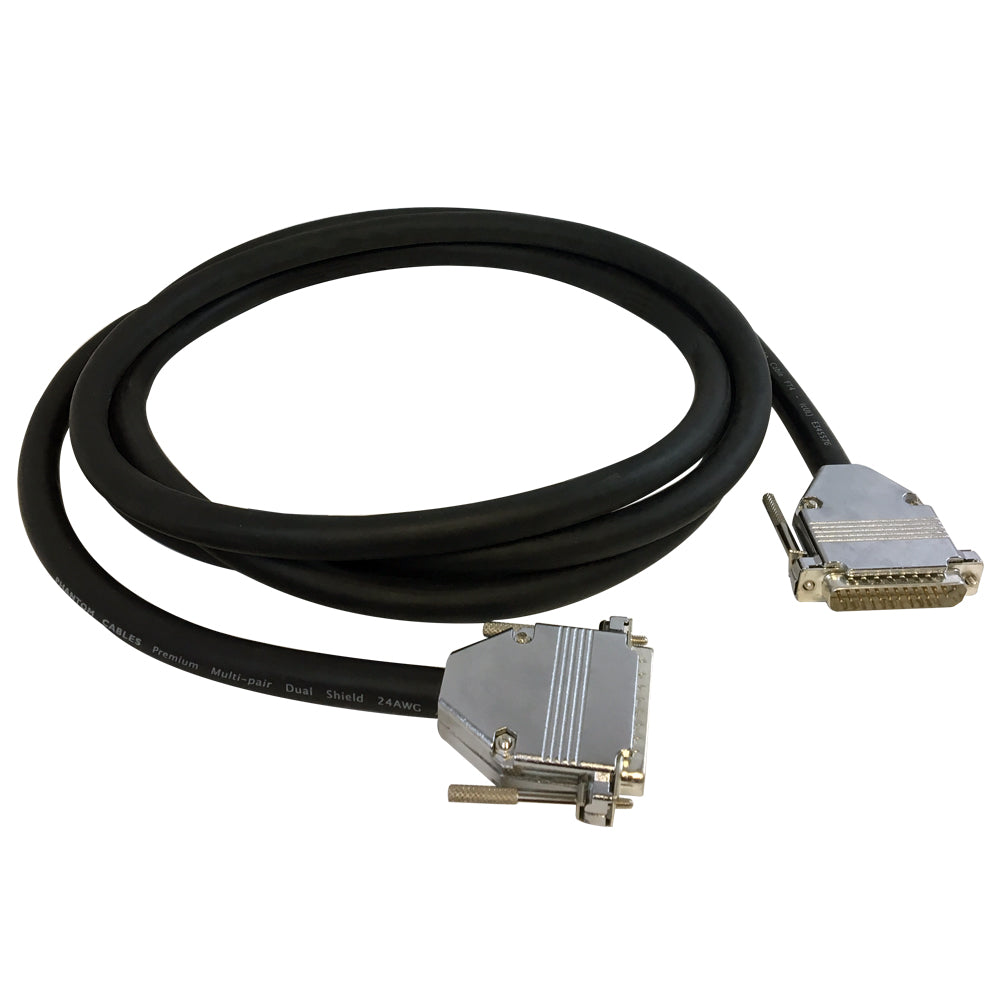

This audio snake cable has a DB25 male on one end and a DB25 male on the other. It is typically used to connect Tascam compatible equipment such as pro audio mixers, patch bays and recorders.
- Premium twisted 24 awg Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
- Dual 100% aluminum mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- High quality, gold plated shielded connectors allow for optimum connectivity and maintain a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Shielding | Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil |
| Wire Gauge | 24AWG |
| Pinout | Tascam |
Connectors | |
| Connector A | 1 - DB25 Male |
| Connector B | 1 - DB25 Male |
Environmental | |
| RoHS | Yes |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|
| 1.45 lbs | 1.90 lbs | 2.50 lbs | 3.25 lbs | 4.75 lbs | 6.25 lbs | 8.50 lbs |
