Description
Overview

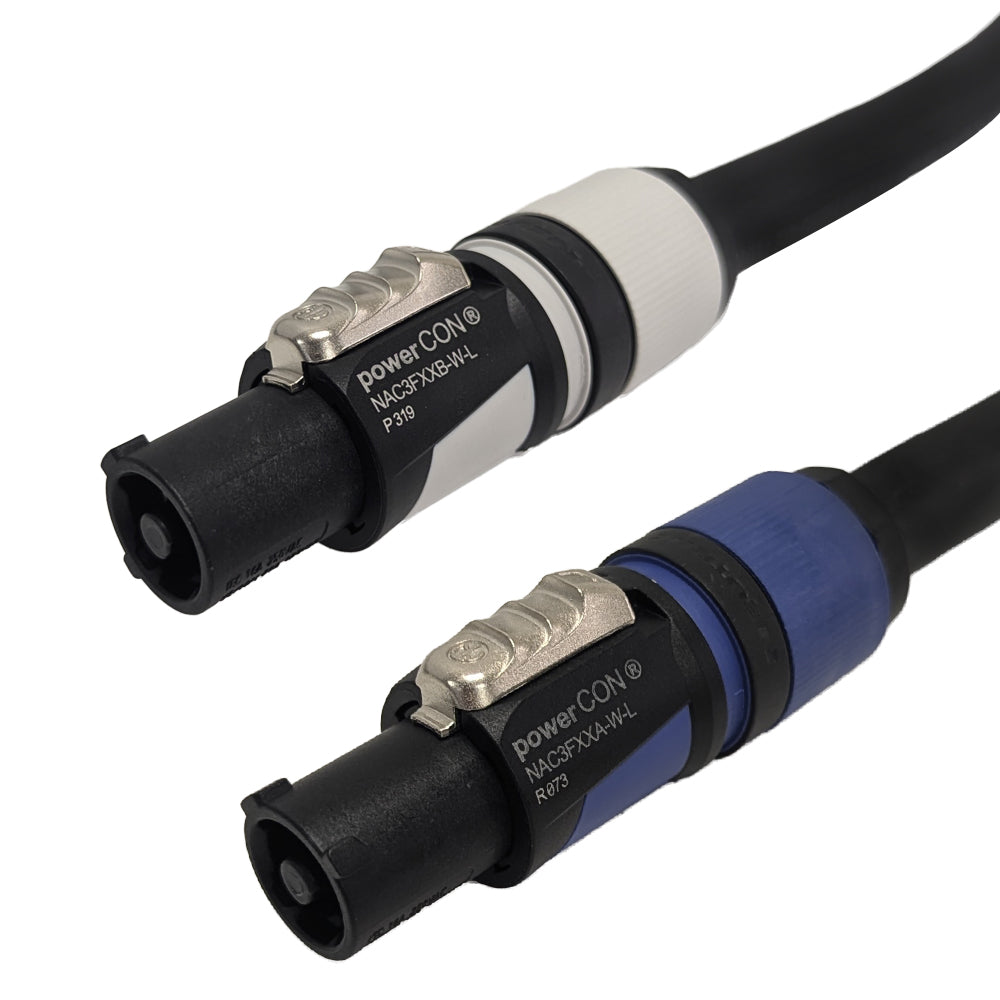

This power cord consists of a powerCON grey AC power-out on one end and a powerCON blue AC power-in on the other end. It is typically used for power connection in Pro AV lighting and display applications.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12AWG |
| Jacket | SOOW |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -33 °C to +80 °C |
|
Connector(s)
|
|
| Connector A | powerCON Blue AC Power-out (Grey) |
| Connector B | powerCON Blue AC Power-in (Blue) |
|
Performance
|
|
| Power Rating |
20 Amp / 125 Volt (12AWG) |
|
Approvals
|
|
| powerCON AC Power-in | c(UL)us |
| Cable | c(UL)us |
| powerCON AC Power-in | VDE |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.19 lbs | 0.29 lbs | 0.50 lbs | 0.70 lbs | 1.00 lbs | 1.57 lbs | 2.10 lbs | 2.90 lbs | 4.80 lbs |
