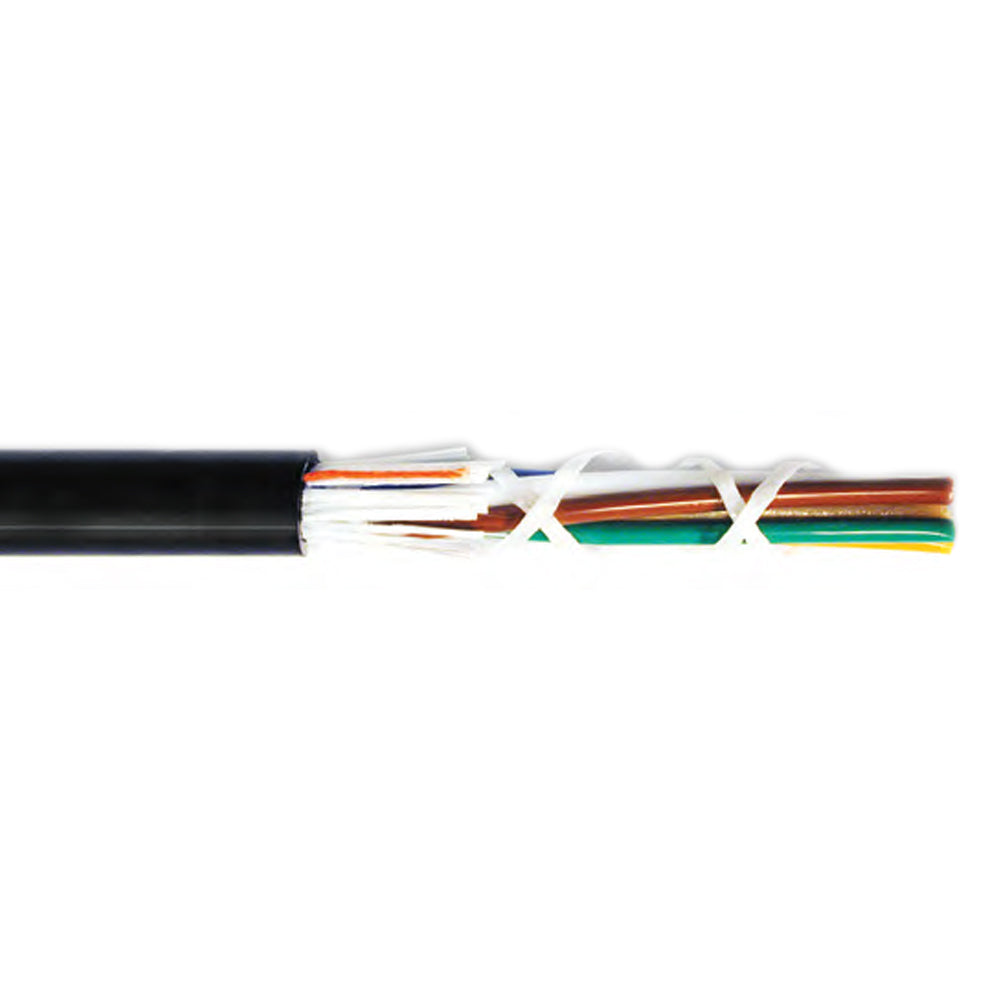

This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, speeds fiber access/cleanup and dielectric design eliminates grounding issues.

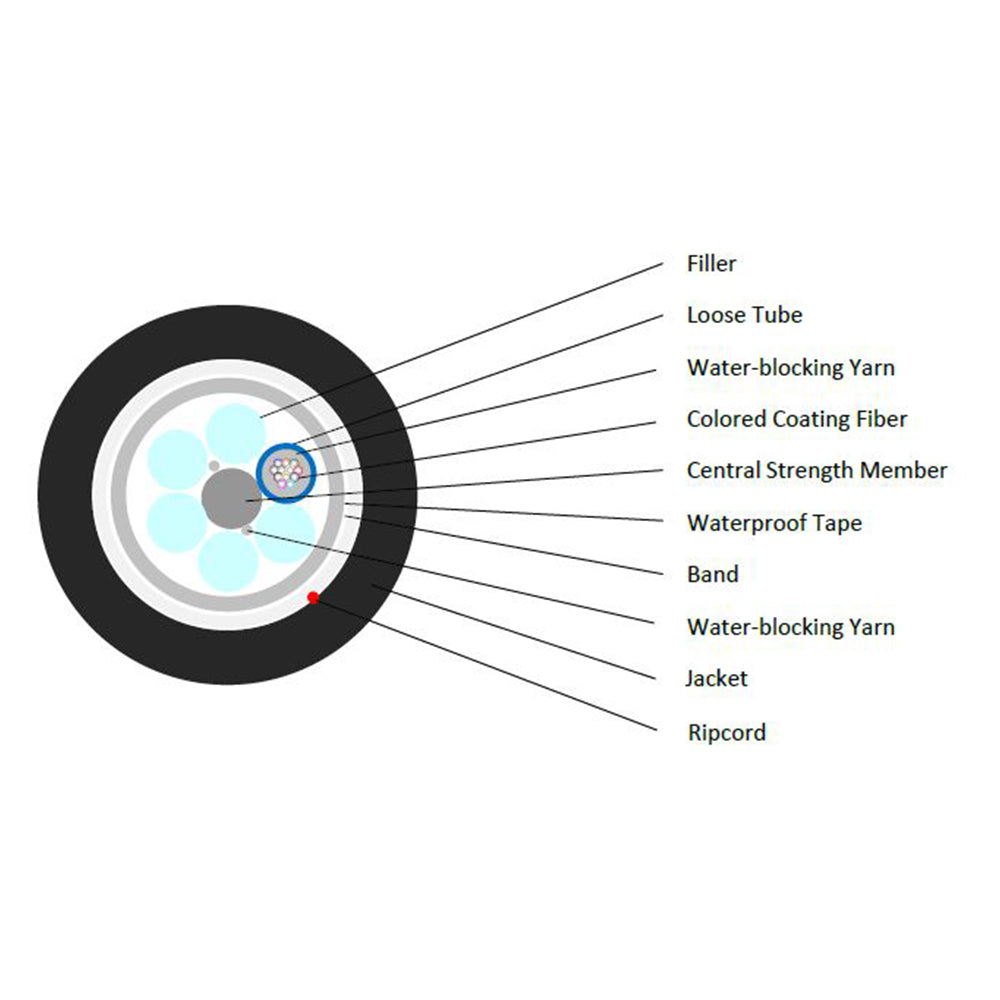

| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OSP Loose Tube Singlemode Outdoor Duct/Lashed Aerial Cable |
| Glass Fiber | G657A2 |
| Color Coating Fiber | Dimension: 250µm±15µm Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua |
| Jacket | UV Rated Material: PE Outer Jacket Dimension: 10.2mm±0.5mm |
| Loose Tube | Dimension: 2.0mm±0.1mm Material: PBT Color: Blue |
| Filler | Dimension: 2.0mm±0.1mm Material: PP Color: Natural |
| Central Strength Member | Diameter: 2.0mm Material: FRP |
| Strength Member Material | Glass Yarn |
| Fiber Count | 48-Strand |
| Tension(Long Term) | 890 N |
| Tension(Short Term) | 2700 N |
| Crush (Long Term) | 300 N/10cm |
| Crush (Short Term) | 1000 N/10cm |
| Min Bending Radius(Dynamic) | 20D mm |
| Min Bending Radius(Static) | 10D mm |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Installation Temperature | -30℃ ~ +70℃ |
| UV Rated | Compliant |
| Fiber Parameters | |
| Mode Field Diameter | 1310nm: 8.6±0.4μm 1550nm: 9.6±0.5μm |
| Cladding Diameter | 125.0±0.7μm |
| Cladding Non-Circularity | ≤0.7% |
| Core-Cladding Concentricity Error | ≤0.5μm |
| Coating Diameter | 245±5μm |
| Coating Non-Circularity | ≤6.0% |
| Cladding-Coating Concentricity Error | <12.0μm |
| Cable Cutoff Wavelength | λcc≤1260nm |
| Attenuation(max.) | 1310nm: ≤0.5 dB/km 1550nm: ≤0.4 dB/km |
| Macro-Bending Loss | 1turn×7.5mm radius @1550nm: ≤0.5 dB 1turn×7.5mm radius @1625nm: ≤1.0 dB |
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
