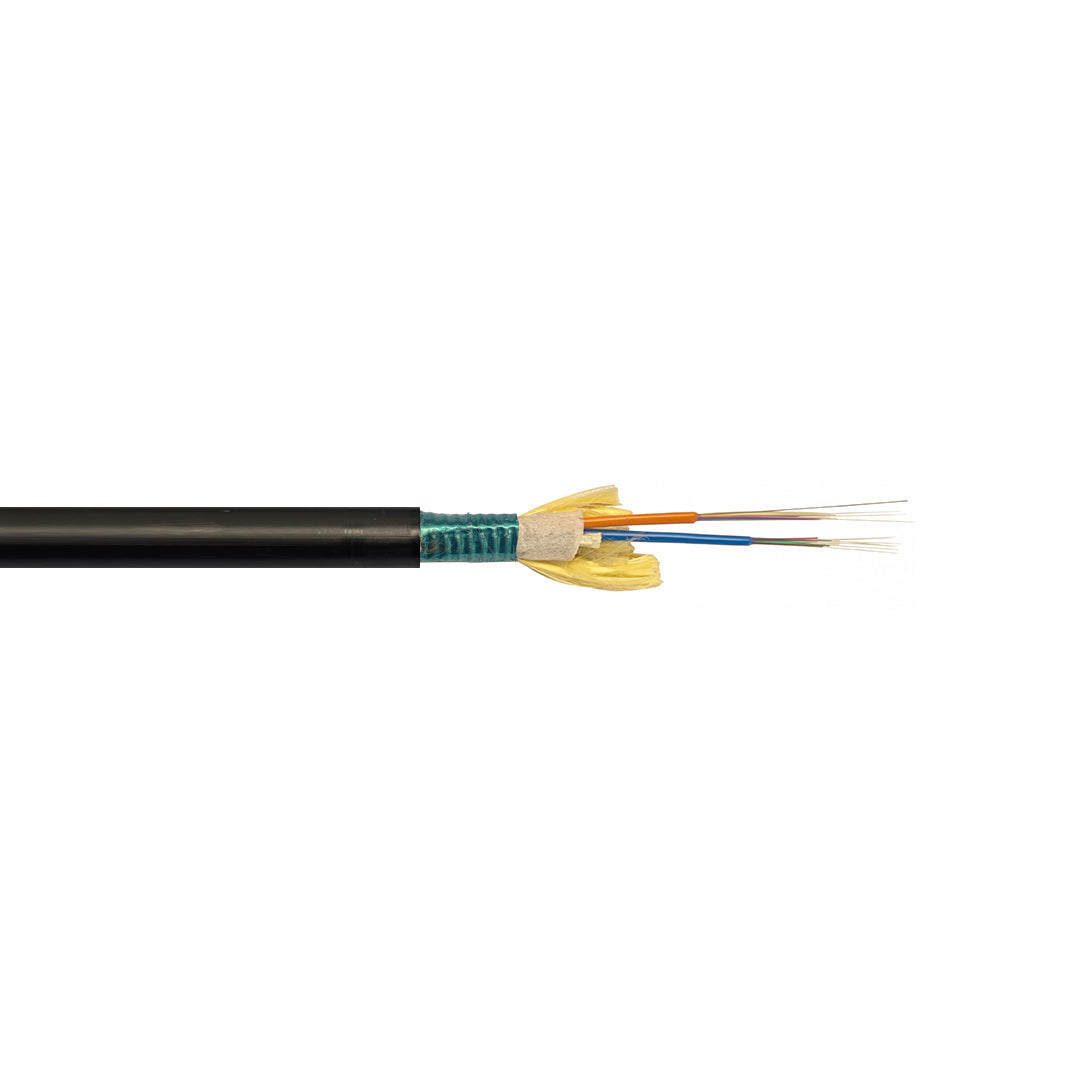

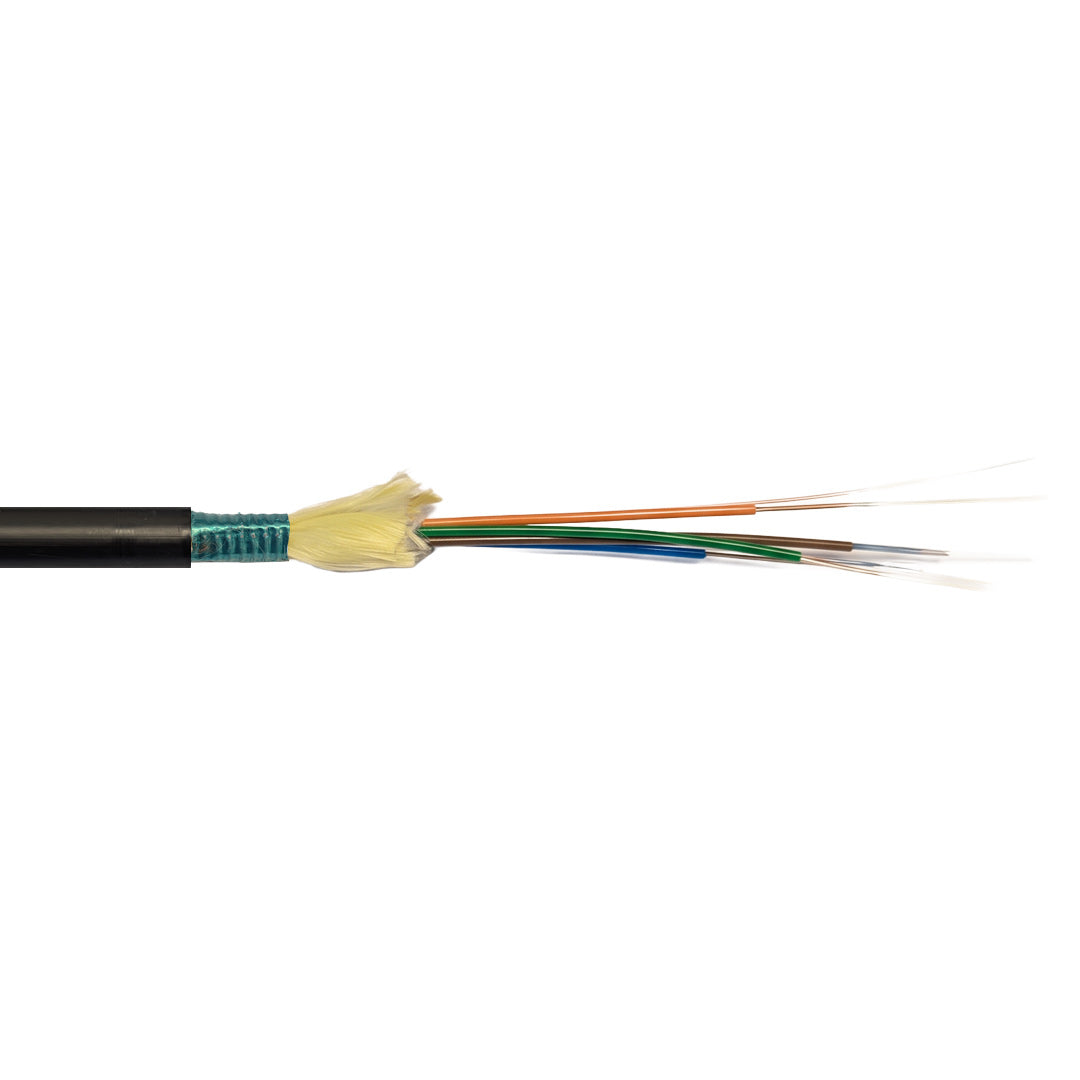

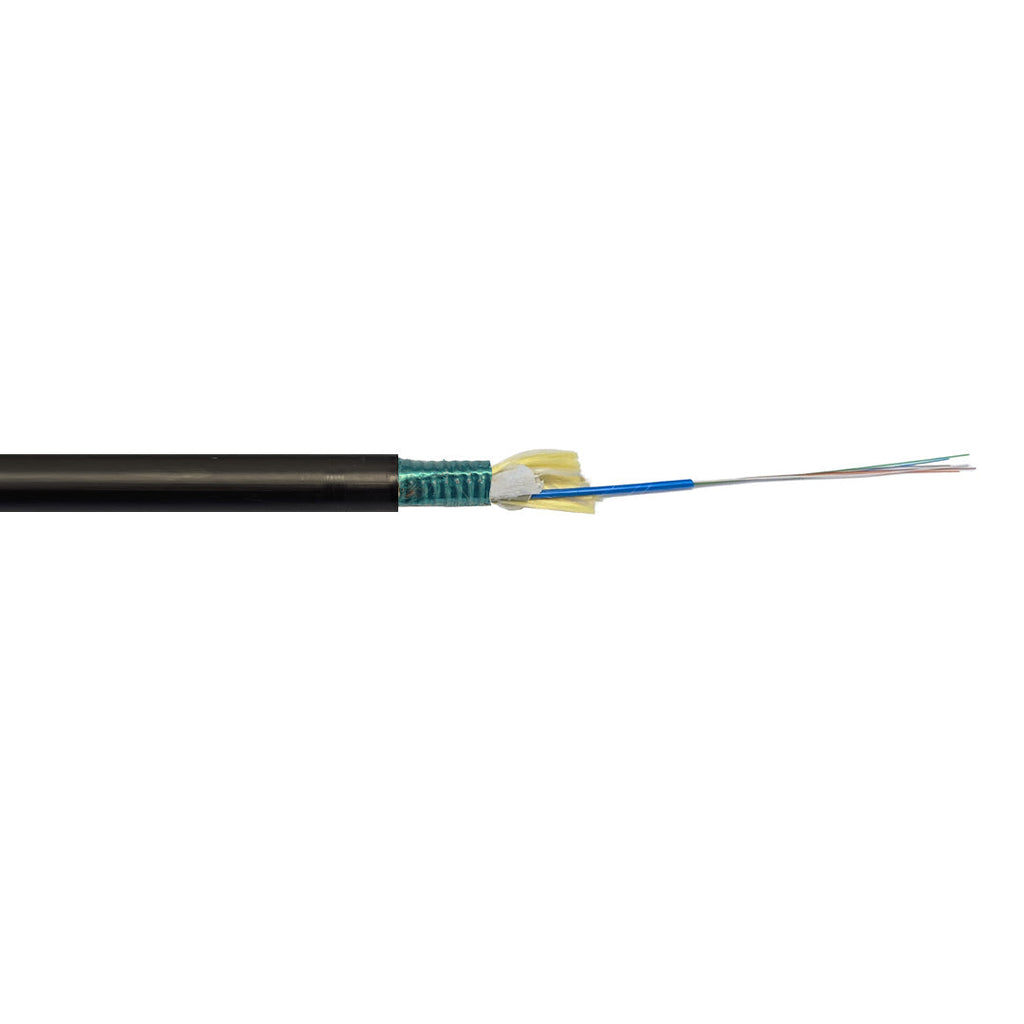

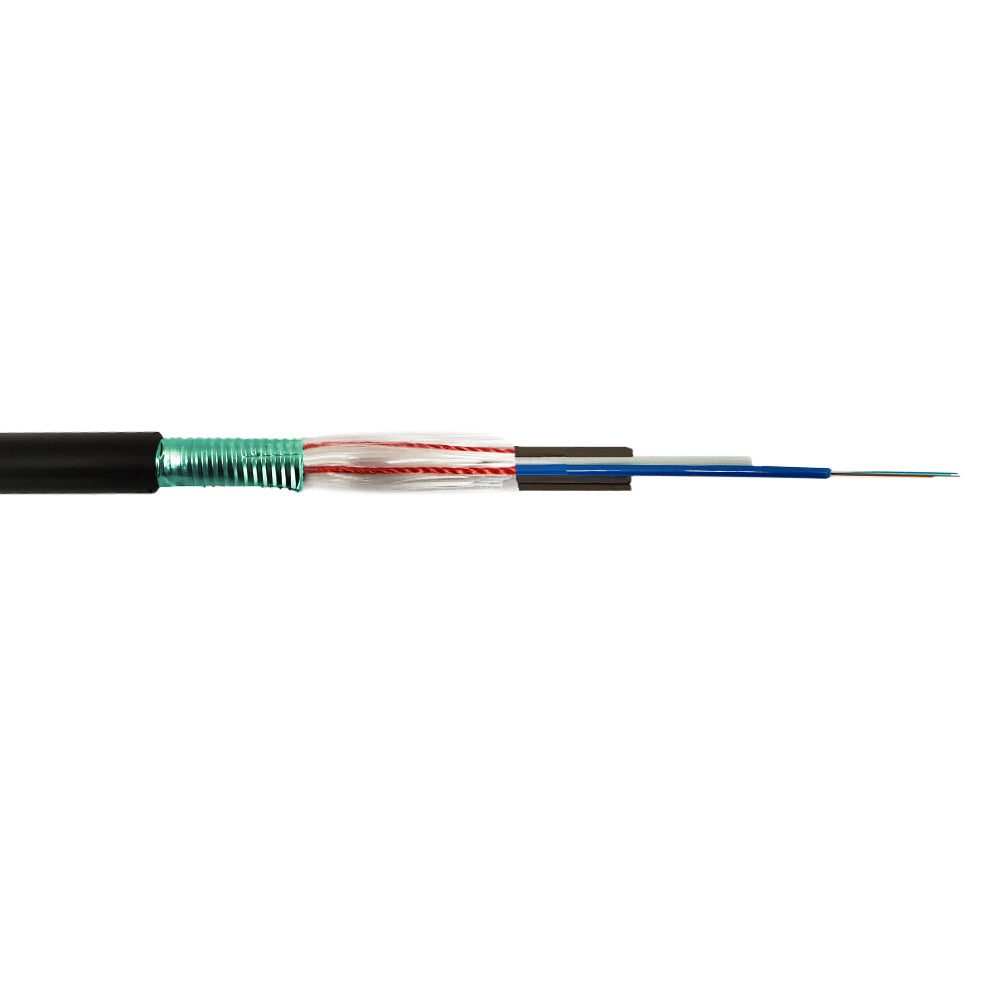

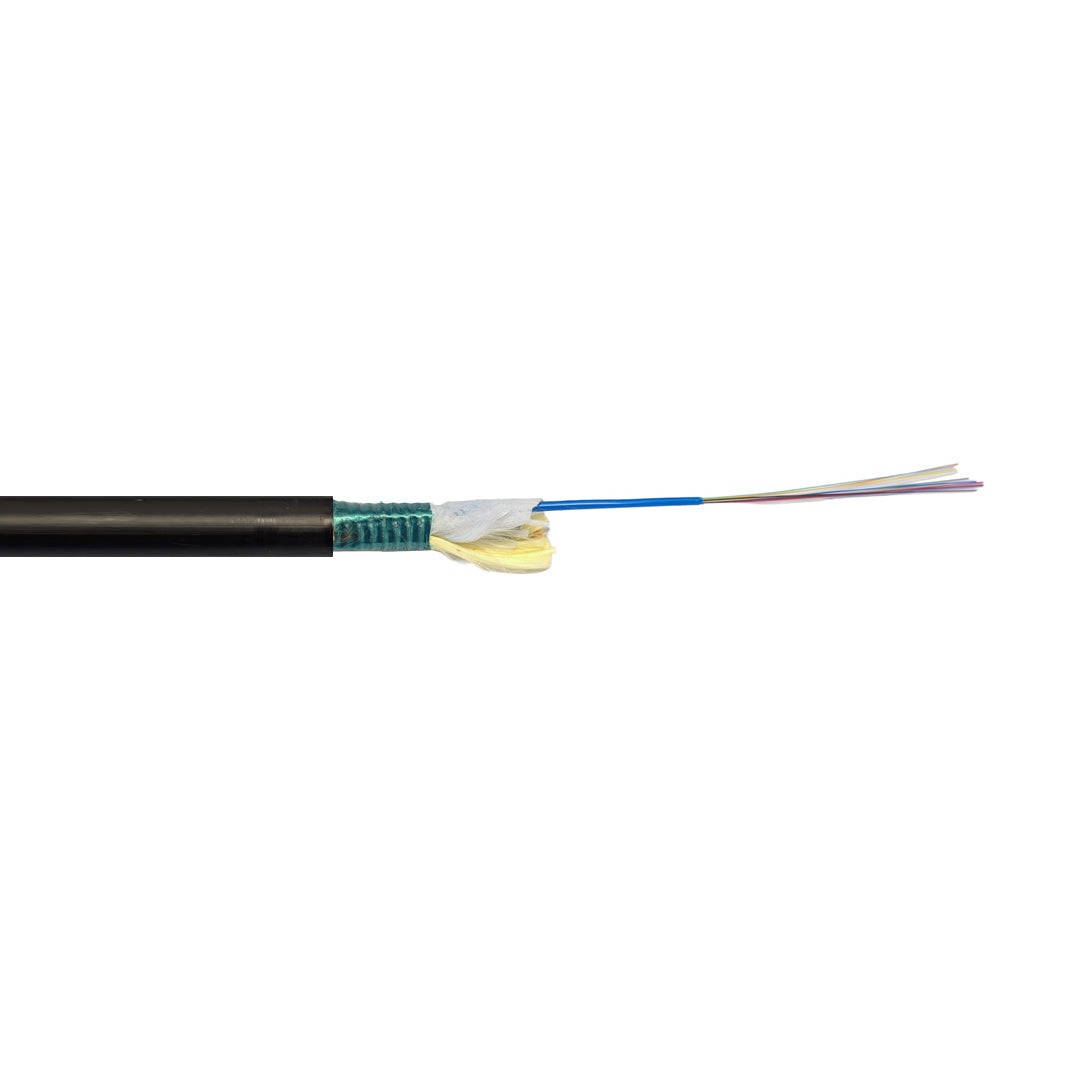

This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, improves compressive strength and rodent protection, and speeds fiber access/cleanup.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OSP Loose Tube Outdoor Direct Burial Armoured Cable |
| Glass Fiber | G657A2 |
| Fiber Count | 6-Strand / 12-Strand / 24-Strand / 48-Strand |

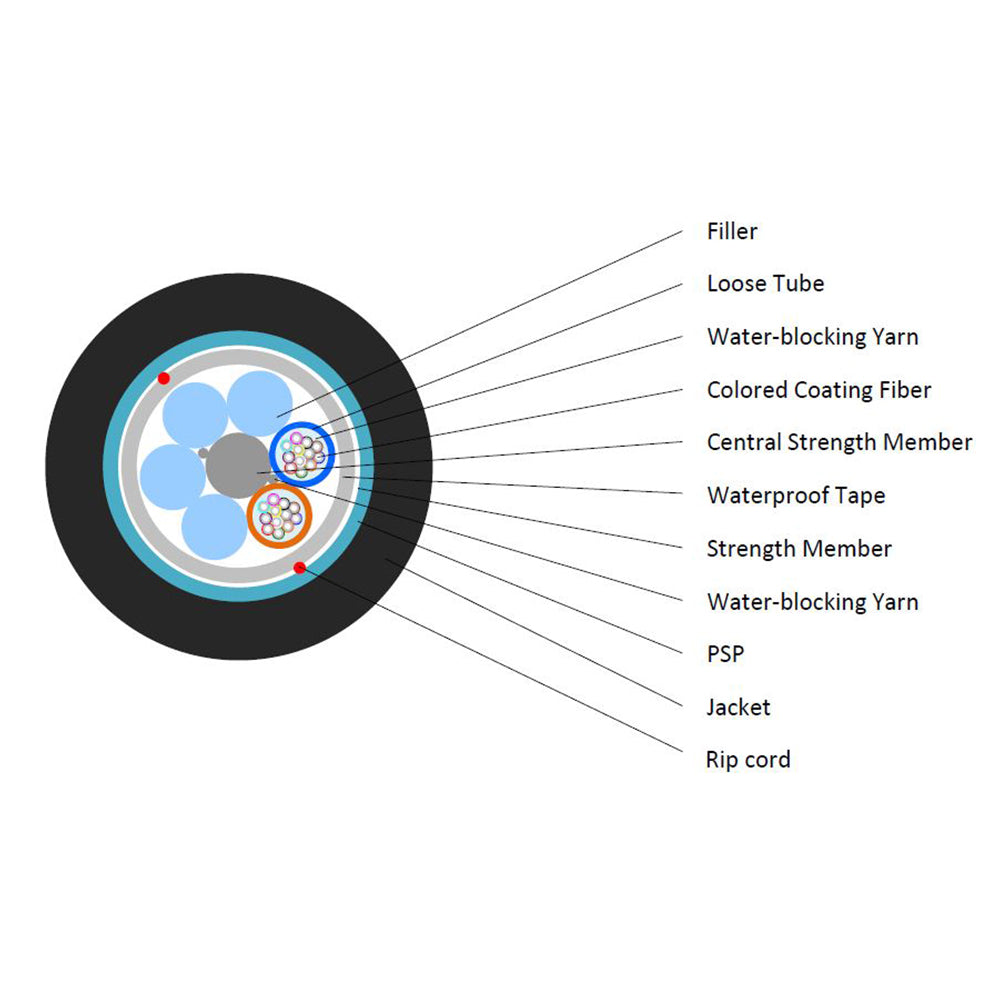

| Color Coating Fiber | Dimension: 250µm±15µm Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua |
| Jacket | UV Rated Material: PE Outer Jacket Dimension: 11.7mm±0.5mm |
| Loose Tube | Dimension: 2.0mm±0.10mm Material: PBT Color: Blue, Orange |
| Filler | Dimension: 2.0mm±0.10mm Material: PP Color: Natural |
| Central Strength Member | Diameter: 2.0mm Material: FRP |
| Strength Member Material | Glass Yarn |
| Tension(Long Term) | 890 N |
| Tension(Short Term) | 2700 N |
| Crush (Long Term) | 1000 N/10cm |
| Crush (Short Term) | 3000 N/10cm |
| Min Bending Radius(Dynamic) | 20D mm |
| Min Bending Radius(Static) | 15D mm |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Installation Temperature | -30°C ~ +70°C |
| UV Rated | Yes |
| Fiber Parameters | |
| Mode Field Diameter | 1310nm: 8.6±0.4μm 1550nm: 9.6±0.5μm |
| Cladding Diameter | 125.0±0.7μm |
| Cladding Non-Circularity | ≤0.7% |
| Core-Cladding Concentricity Error | ≤0.5μm |
| Coating Diameter | 245±5μm |
| Coating Non-Circularity | ≤6.0% |
| Cladding-Coating Concentricity Error | <12.0μm |
| Cable Cutoff Wavelength | λcc≤1260nm |
| Attenuation(max.) | 1310nm: ≤0.5 dB/km 1550nm: ≤0.4 dB/km |
| Macro-Bending Loss | 1turn×7.5mm radius @1550nm: ≤0.5 dB 1turn×7.5mm radius @1625nm: ≤1.0 dB |
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
