Description

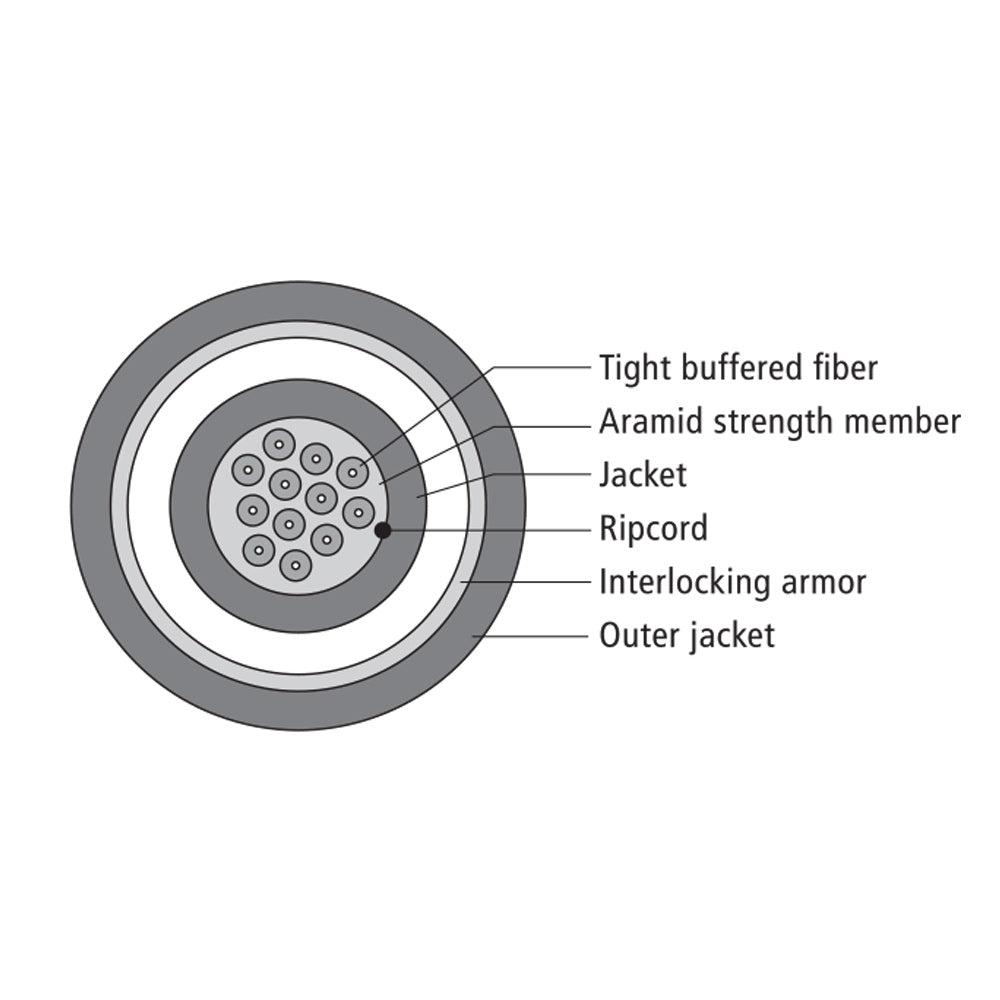

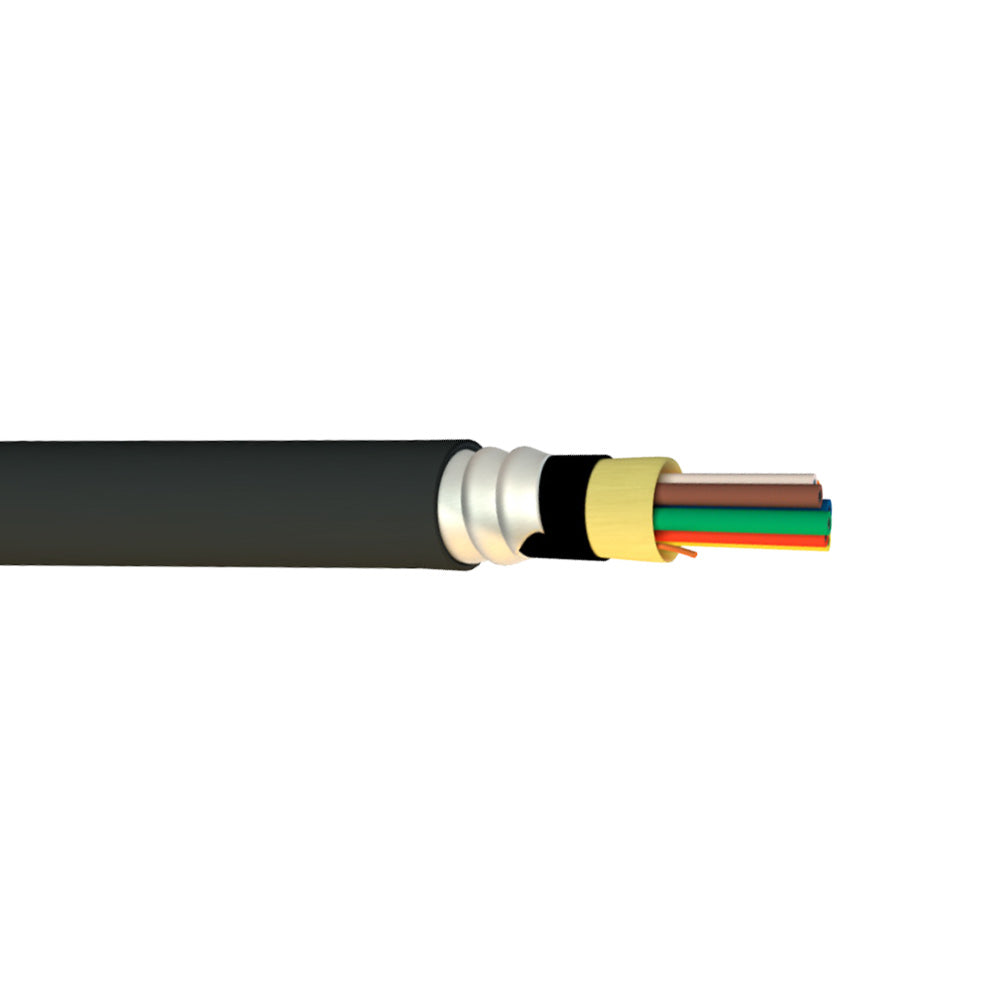

This bulk OS2 armored fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's aluminum interlocking armor provides the best balance of ruggedness, flexibility, and low weight.
Features
- Provides superior crush resistance for added protection
- Eliminates the need for inner duct or conduit thus saving installation time
- RoHS Compliant
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 9 micron Singlemode Plenum Indoor/Outdoor Armored Tight Buffered Cable |
| Fiber Count | 6-Strand/12-Strand |
| Glass Fiber | Corning SMF-28 Ultra |
| Armorer |
Aluminum Interlocking Armor |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 13.0mm : 6-Strand 14.7mm : 12-Strand |
| Bending Radius | 26.0cm : 6-Strand 29.4cm : 12-Strand |
| Pulling Tension | 300lbs |
| Operating Temperature | -40℃ to +70℃ |
| Storage Temperature | -40℃ to +70℃ |
| Performance | |
| Wavelength |
1310nm/ 1550nm |
| Attenuation Max. |
@1310nm 0.5dB/km @1550nm 0.4dB/km |
| Link Length |
@1300nm = 10000m @1550nm = 5000m |
| 1/10 Gigabit Ethernet Min. Link Distance | @1550nm = 5000m |
| Fire Rating | OFCP |
| Certification(s) | |
| UL |
Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
