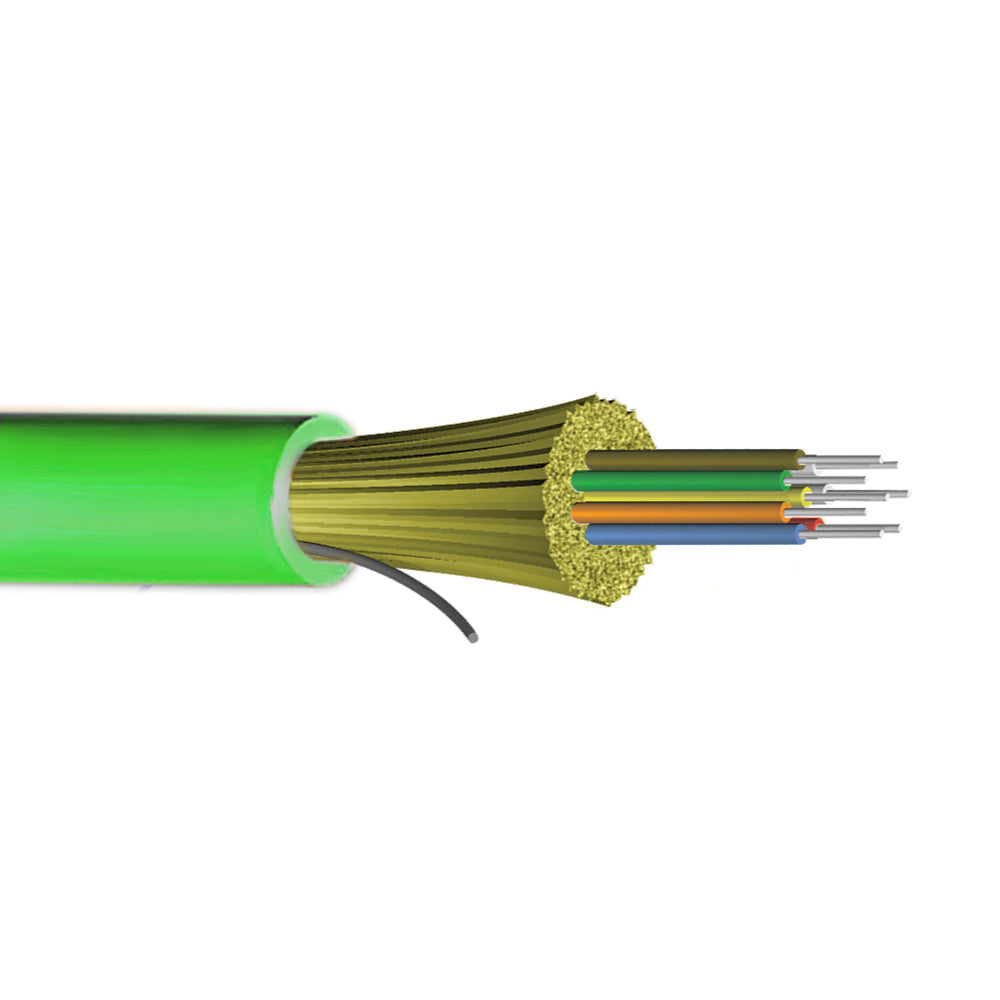

Description
This bulk OM5 fiber cable is indoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments.
Features

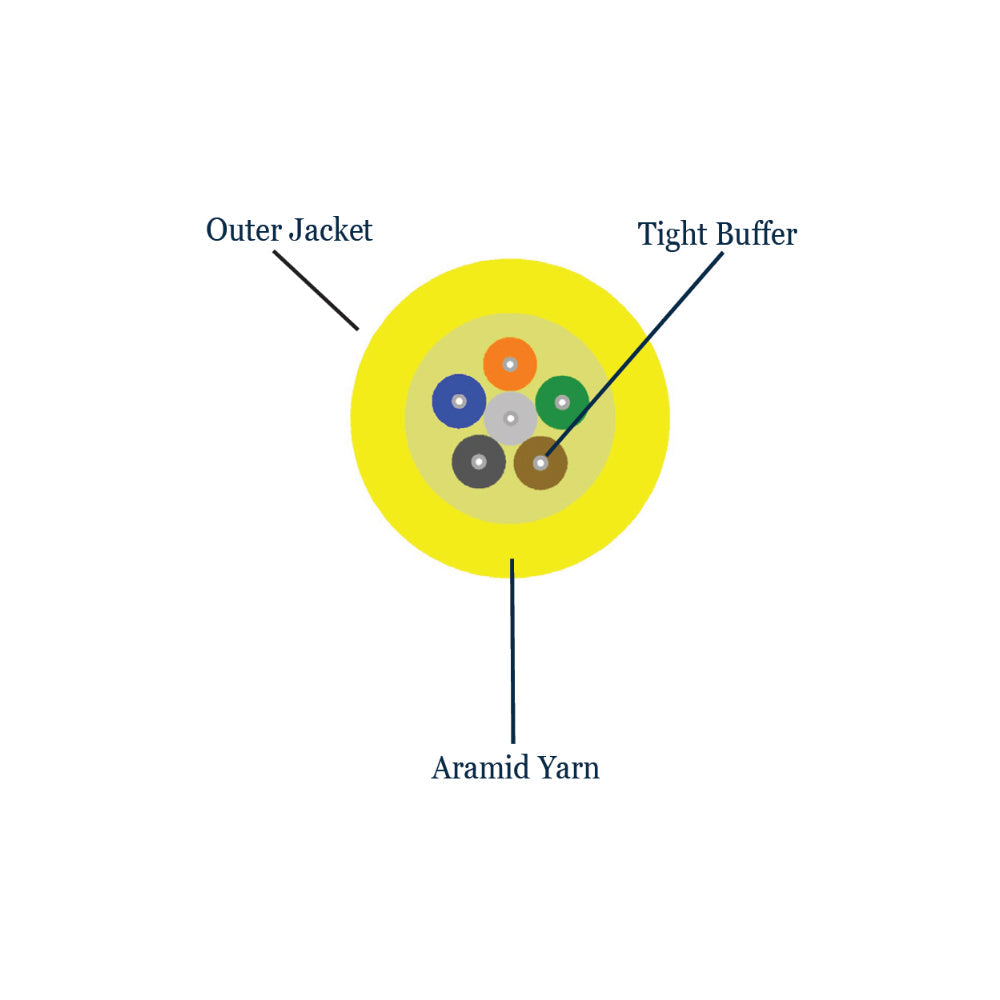

- 900µm Tight Buffers
- Aramid yarn strength members
- Exclusive use of Corning® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
|
Physical Characteristics
|
|
|---|---|
| Color | Green |
| Fiber Optic Type | OM5 50 micron Multimode Plenum Indoor Cable |
| Fiber Count | 6-Strand/12-Strand |
| Glass Fiber | Corning ClearCurve |
| Outer Jacket Material/Tight Buffer Material | Flame Retardant PVC |
| Strength Member | Aramid Yarn |
| Weight |
57 lbs / km (6-strand) 81 lbs/km (12-strand) |
| Nominal Outer Diameter |
4.8mm (6-strand) 5.8mm (12-strand) |
| Minimum Bend Radius, Installation |
7.2cm (6-strand) 8.7cm (12-strand) |
| Minimum Bend Radius, Operation |
4.8cm (6-strand) 5.8cm (12-strand) |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Wavelength | 850 / 1300nm |
| Maximum Attenuation | 3.0 / 1.0 dB/km |
| Link Length | 550m (10Gb/s@850nm) |
| Bandwidth (EMB High Performance)[MHz.km] | 4,700 @850 |
|
Certification(s)
|
|
| UL | Yes |
|
Product Support
|
|
| RoHS | Yes |
| Country of Origin | USA |
