Overview

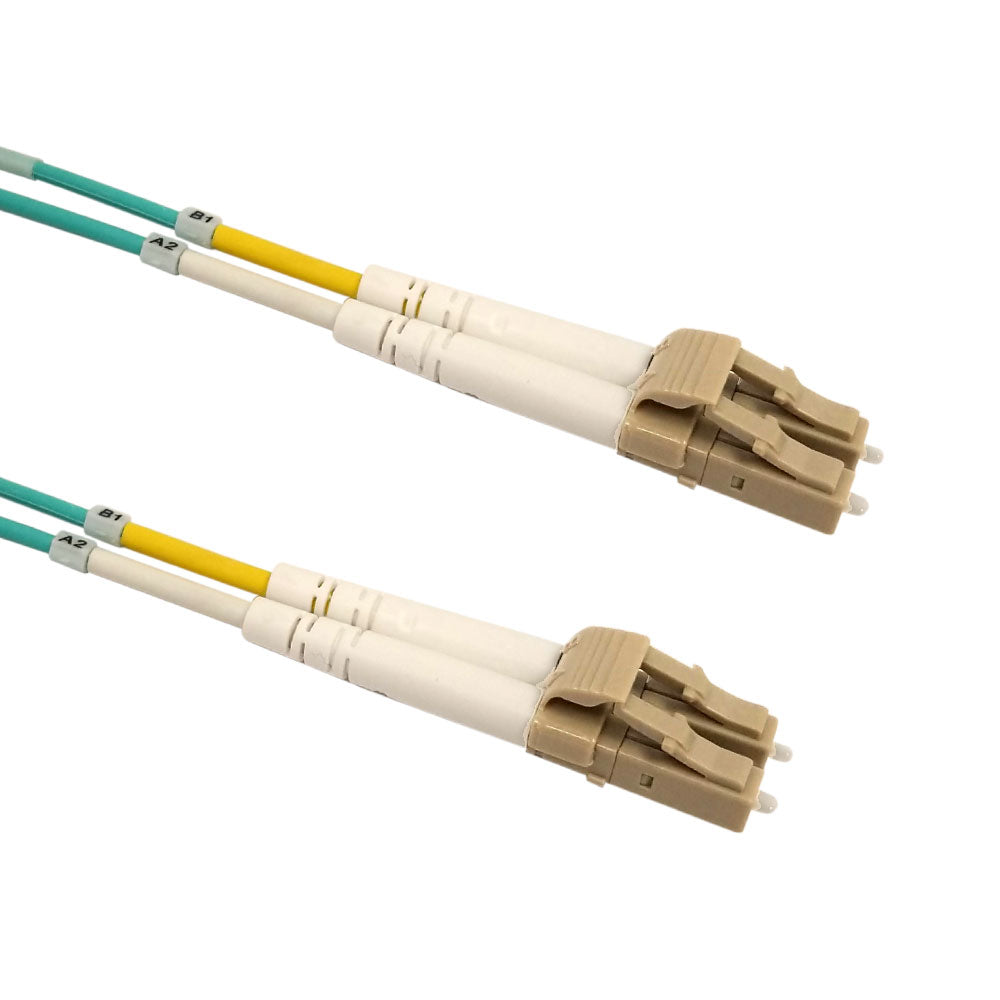

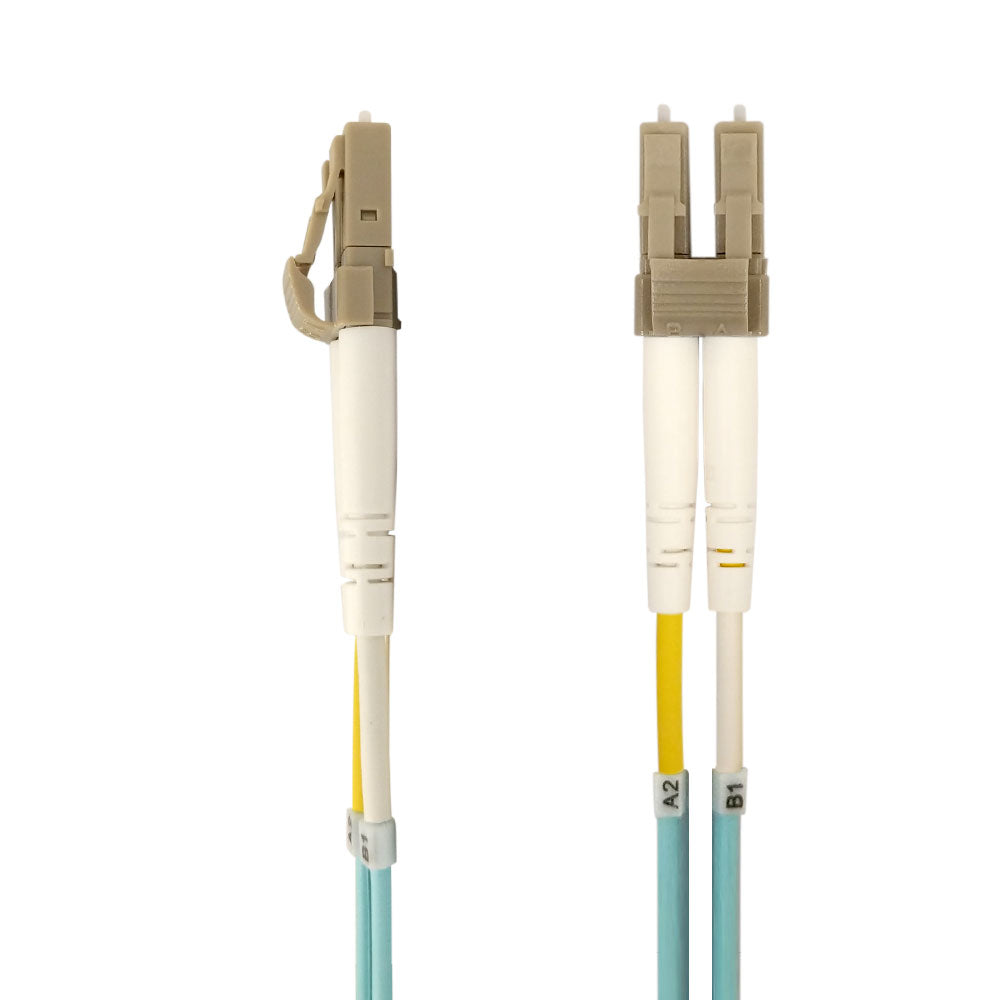

This 50 micron (OM4) laser optimized fiber optic cable is made with Corning glass fiber. It has 2mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Premium Cables Made with CorningĀ® Glass Fibers
All of our multimode fiber cables are made with CorningĀ® ClearCurve glass for optimal performance and quality.
|
Individually Serialized Cables
Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation. |
Dual Rated LSZH/OFNR Rated Jacket
These cables have a dual rating (low-smoke-zero-halogen and riser) ideal for use in data center installations.
|
Bend Insensitive Fibers
Our multimode fiber cables are designed with CorningĀ® ClearCurve glass which can withstand tighter bends than traditional multimode fiber. |
Ceramic Ferrule
All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss. |
3D Interferometer Tested
Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.
|
Certifications
Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards. |
100% Fully IL Tested
Our multimode cables are 100% tested for insertion loss to stringent parameters and come with a test report. |
Lifetime Warranty
Our cables come with a limited lifetime warranty against manufacturing defects.
|
Application
Specifications
| Physical Characteristics |
| Color |
Aqua |
| Cable Diameter |
2mm |
| Fiber Size |
50/125 micron - Laser Optimized |
| Fiber Type |
Multimode |
| Glass Manufacturer |
Corning Glass |
| Connector Ferrules |
Ceramic |
| Fiber Classification |
OM4 |
| Jacket Rating |
Low Smoke Zero Halogen (LSZH) & Riser (OFNR) |
| Operating Temperature |
-10Ā°C ~ +70Ā°C
|
|
Connector(s)
|
| Connector A |
LC Duplex Male |
| Connector B |
LC Duplex Male |
| Performance |
| Insertion Loss |
<0.3db @ 1300nm |
| Speed |
10Gbps, 40Gbps, 100Gbps and Higher |
| Interferometer Tested |
100% Tested |
| Approvals |
| c(UL)us |
Yes |
| Environmental |
| RoHS |
Yes |
| Conflict Minerals |
Yes |
| Packaging Information |
| Warranty |
Limited Lifetime |
| 8inch - 0.2m |
1.5ft - 0.5m |
3ft - 1m |
5ft - 1.5m |
6ft - 2m |
10ft - 3m |
13ft - 4m |
15ft - 5m |
20ft - 6m |
23ft - 7m |
26ft - 8m |
| 0.02 lbs |
0.05 lbs |
0.08 lbs |
0.08 lbs |
0.09 lbs |
0.13 lbs |
0.16 lbs |
0.20 lbs |
0.23 lbs |
0.29 lbs |
0.30 lbs |
| 30ft - 10m |
40ft - 12m |
50ft - 15m |
65ft - 20m |
80ft - 25m |
100ft - 30m |
131ft - 40m |
164ft - 50m |
| 0.38 lbs |
0.44 lbs |
0.52 lbs |
0.77 lbs |
0.86 lbs |
1.03 lbs |
1.39 lbs |
2.05 lbs |
Spec Sheets
Download attachment - FO-458B-xx_spec_sheet
