Description

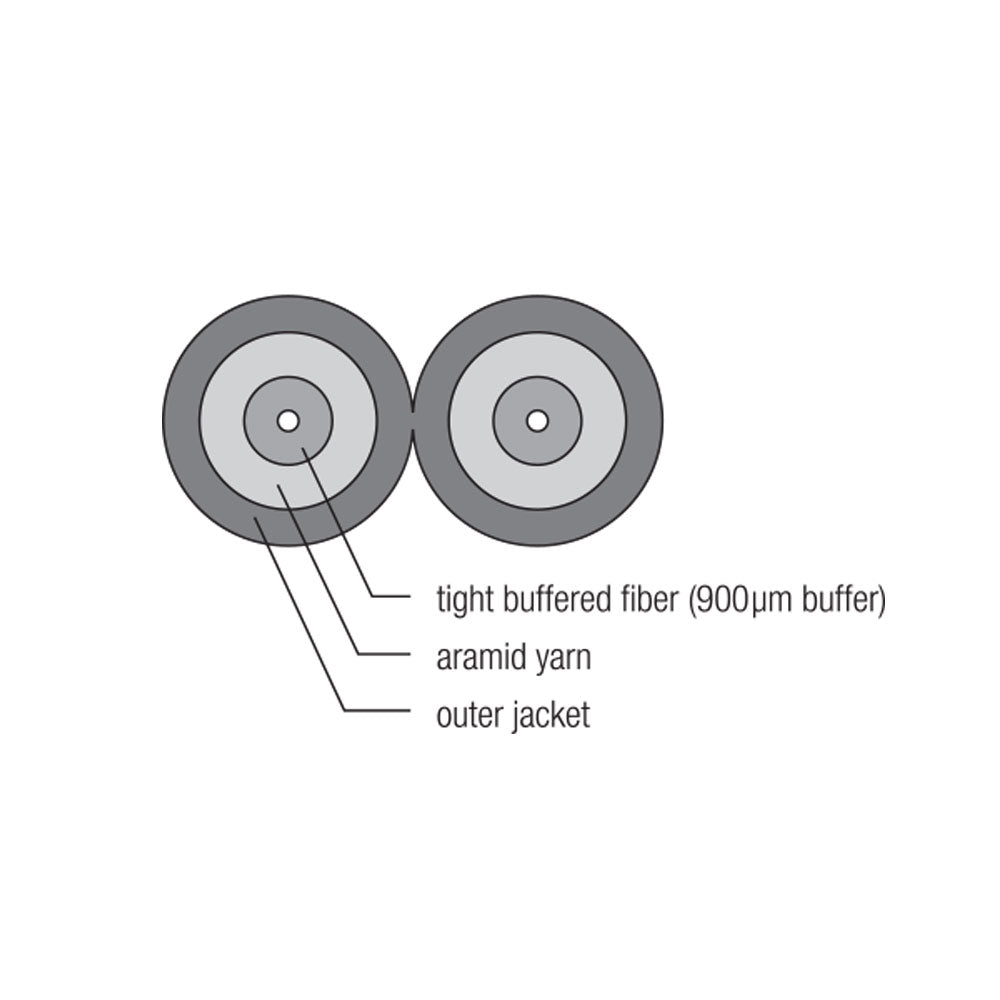

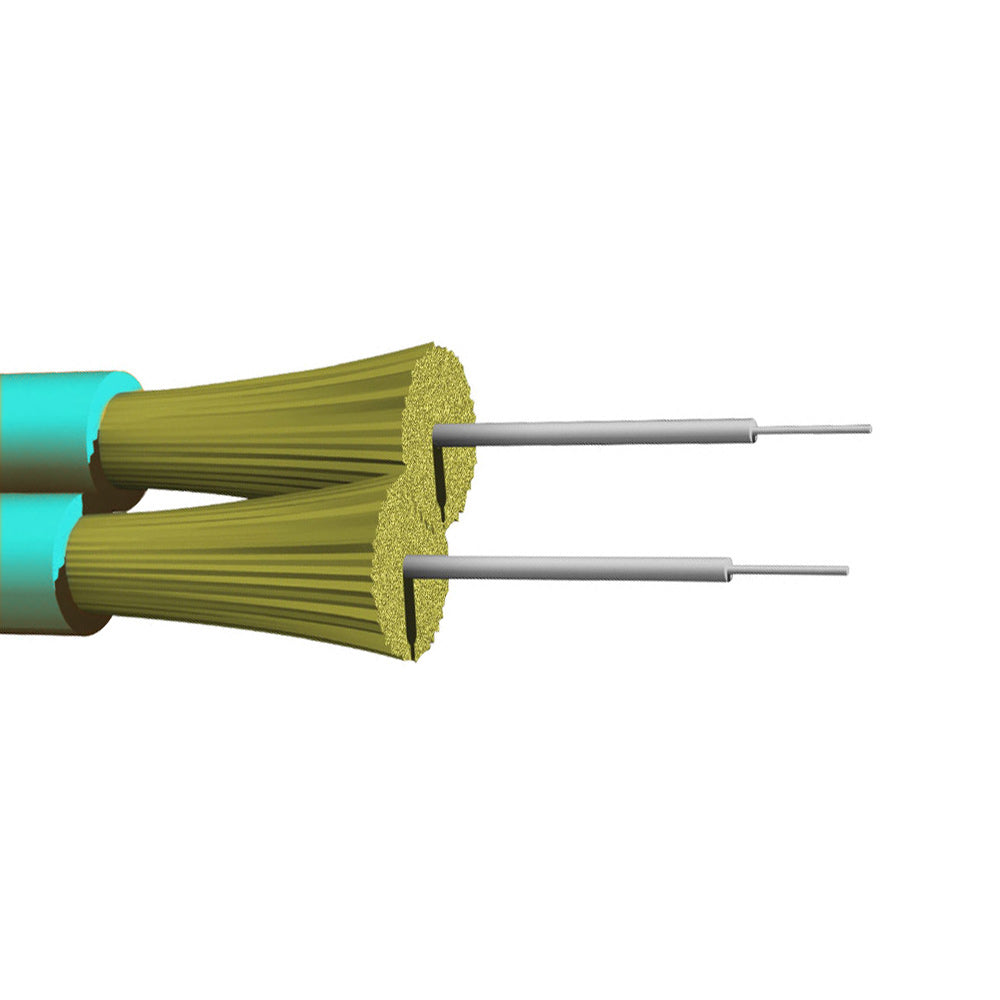

This bulk fiber optic cable is a multimode duplex 9 micron plenum zip cord 1.6mm jacket OFNP. This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM4 Plenum Zipcord 1.6 Multimode Duplex 50/125 micron |
| Fiber Core Diameter | 50 micron ± 2.5 micron |
| Nominal Diameter | 1.6mm x 3.4mm |
| Tension(Installation) | 27 lbs |
| Tension(Long Term) | 13.5 lbs |
| Bending Radius(Installation) | 2.0cm |
| Bending Radius(Long Term) | 1.0cm |
| Operating Temperature | -10℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| Attenuation Range |
≤3.5dB/km @1850nm ≤1.5dB/km @1300nm |
| Bandwidth Range |
3500MHz/km @850nm 500MHz/km @1300nm |
| Effective Modal Bandwidth | ≥4700MHz/km @850nm |
| 10 Gigabit Ethernet Min. Link Distance | 550m @850nm |
| Max. Crush Resistance | 1000 N/100mm2 |
| Fire Rating | OFNP |
| Certification(s) | |
| c(UL)us | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | China |
