Description

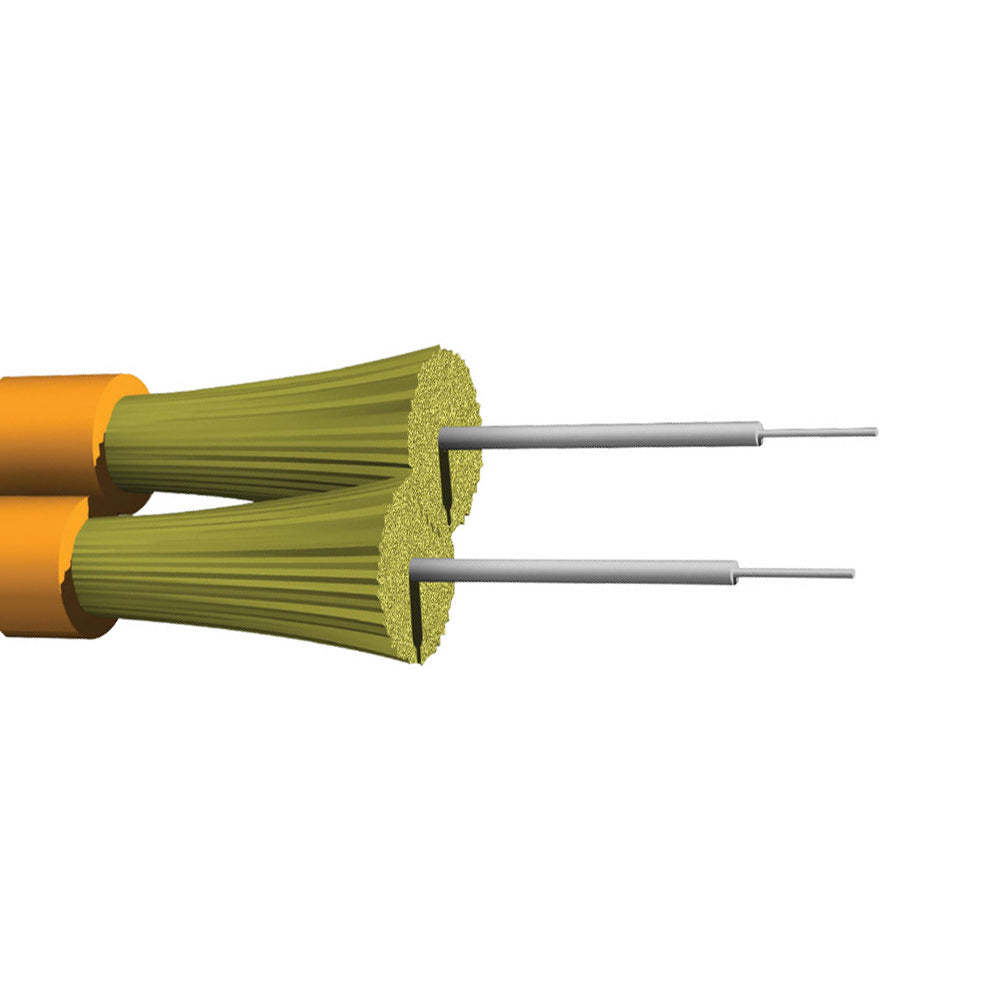

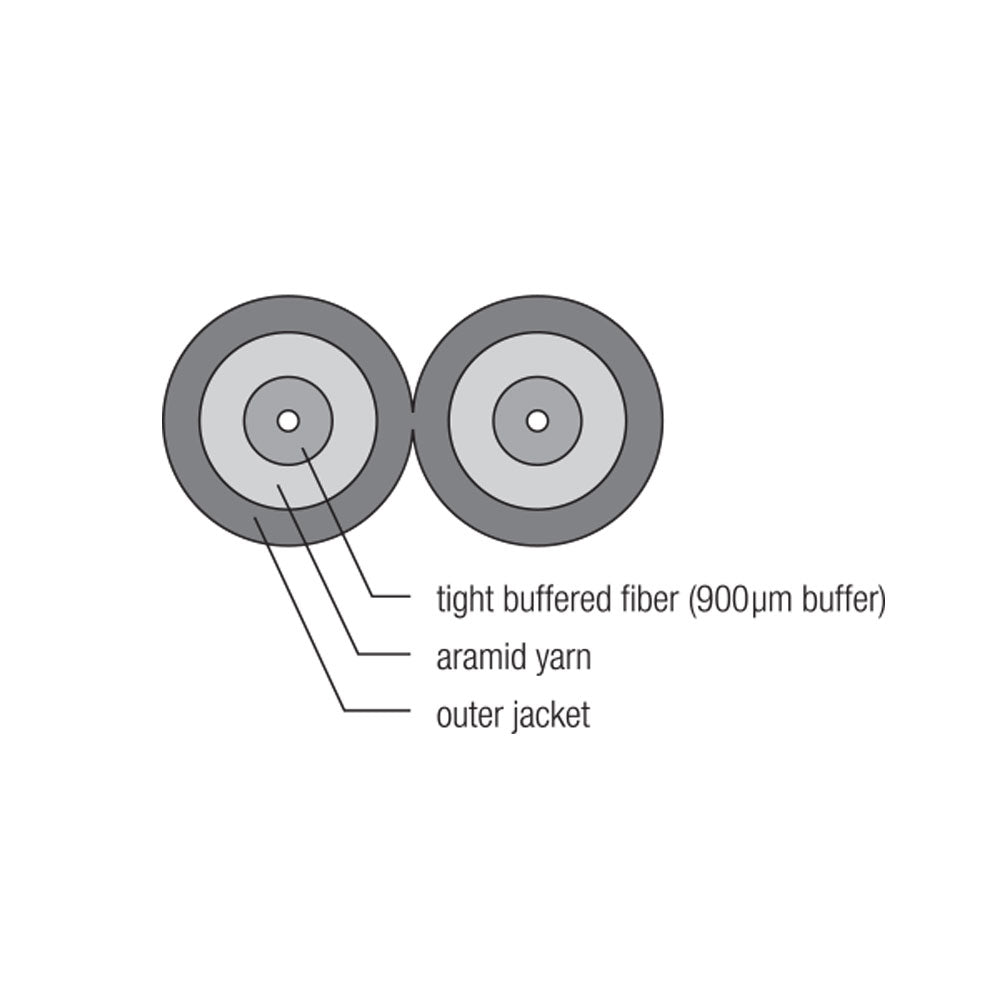

This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Fiber Optic Type | Multimode 62.5/125 micron OM1 duplex |
| Fiber Core Diameter | 62.5 micron ± 2.0 micron |
| Nominal Diameter | 1.95mm x 4.1mm |
| Tension | 9 lbs |
| Bending Radius | 7.5mm |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wavelength | 850/1300nm |
| Attenuation (Max) |
3.5dB/km @850nm 1.5dB/km @1300nm |
| Bandwidth | 220 MHz/km @850nm |
| Link Length |
300m (1Gb/s@850nm) |
| Fire Rating | OFNR Riser |
| Certification(s) | |
| c(UL)us |
Yes |
| Product Support | |
| RoHS, REACH | Yes |
| Country of Origin | USA |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-F2Z-OM1B-R-T | 0.03 lb |
