Description
This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Orange |

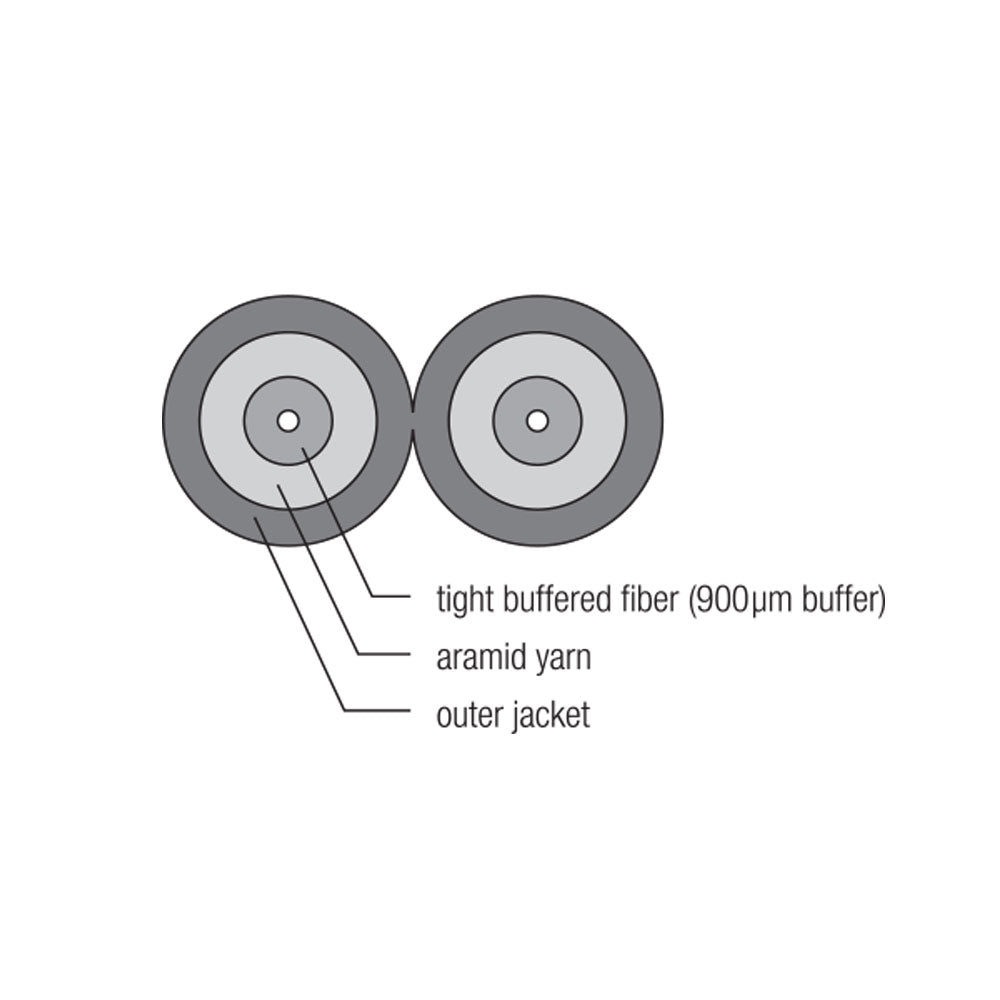

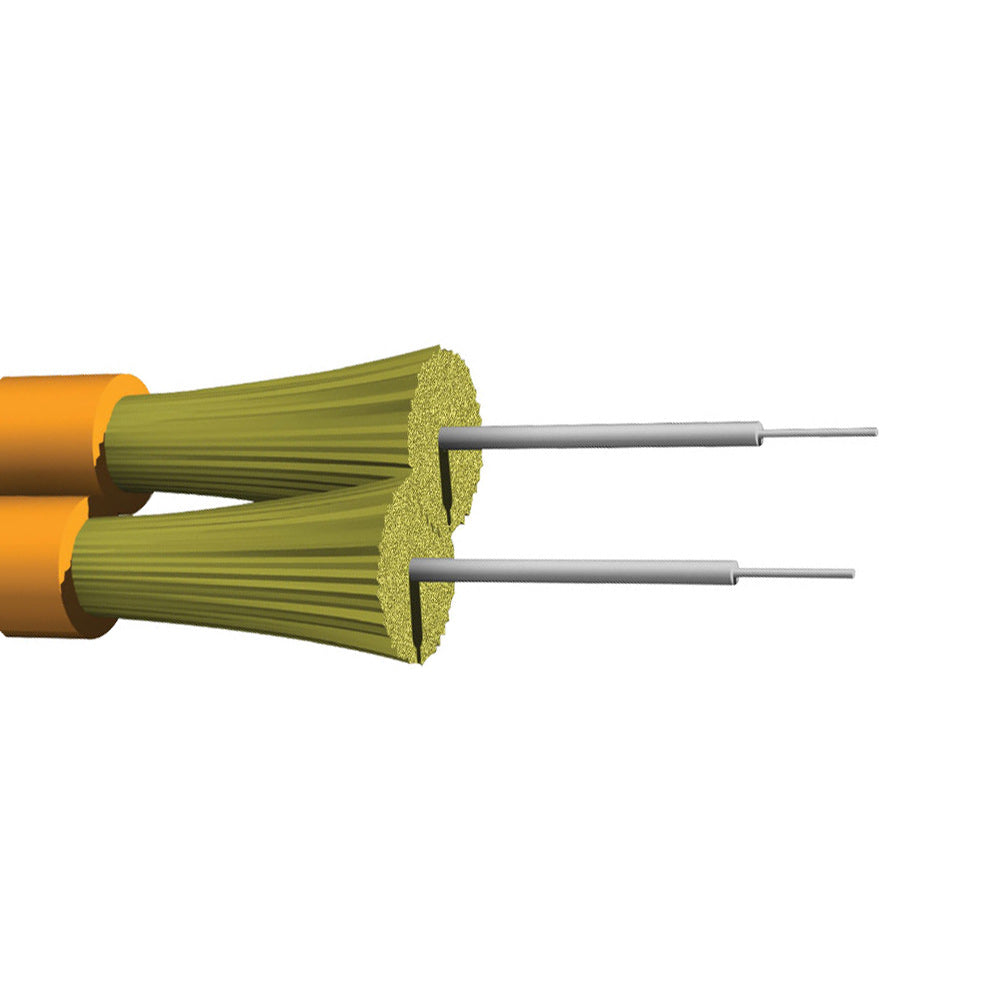

| Fiber Optic Type | OM1 Plenum Zipcord 2.0 Multimode Duplex 62.5/125 micron |
| Glass | Corning Infinicor 300 |
| Fiber Core Diameter | 62.5 micron ± 2.0 micron |
| Nominal Diameter | 1.95 x 4.1mm |
| Tension(Installation) | 9 lbs |
| Bending Radius | 10mm |
| Operating Temperature | 0℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Attenuation Range | 3.5 dB/km max @ 850nm |
| Bandwidth Range | @850nm - 200 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300m |
| Fire Rating | OFNP |
| Certification(s) | |
| UL |
Yes |
| Product Support | |
| RoHS, REACH | Yes |
| Country of Origin | USA |
