Description

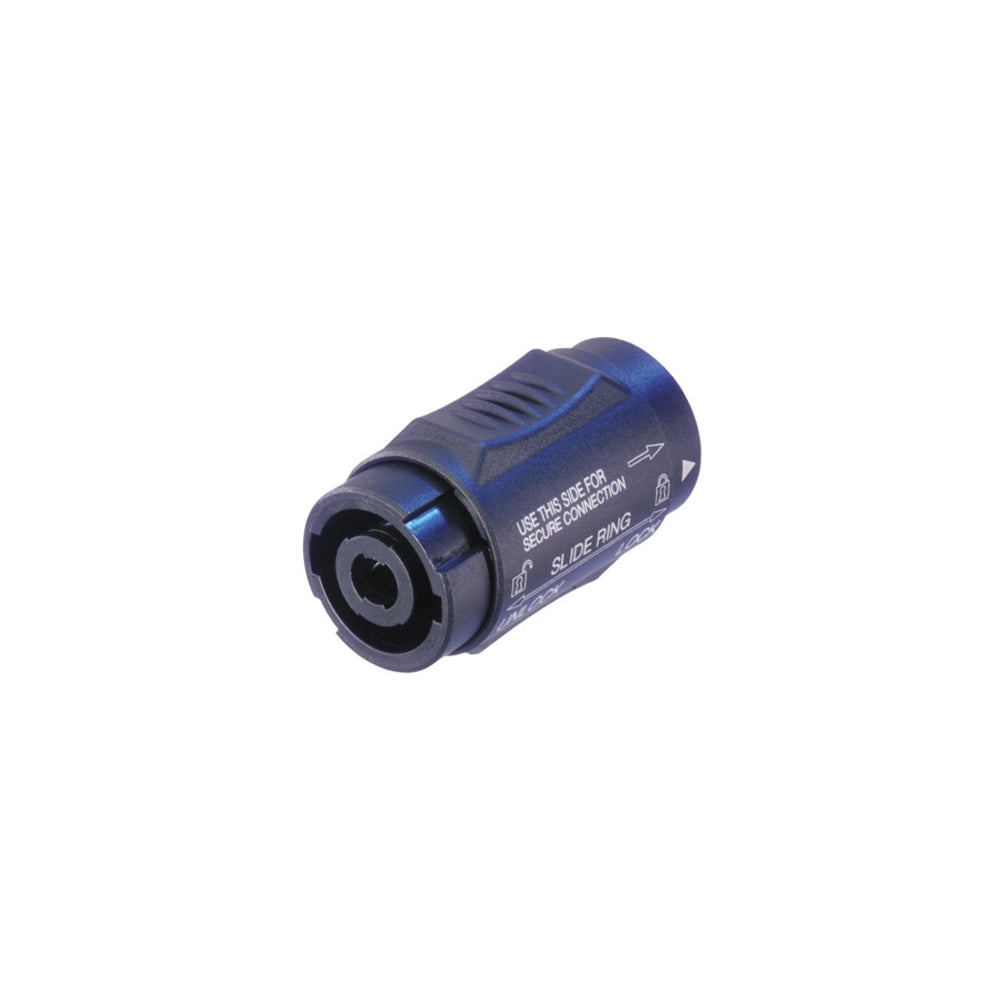

This coupler can be used for cable extension and changes the gender to male when locked onto the cable. It features a permanent secure connection on a speakON cable connector.
Physical Characteristics | |
---|---|
Color | Blue |
Connector Type | speakON |
Temperature Range | -30℃ to +80℃ |
Contact Plating | 4 µm Ag |
Contacts | Bronze |
Insert | Polyamide |
Shell | Polyamide |
Gender | Male |
Electrical Characteristics | |
Contact Resistance | ? 3 mΩ (after lifetime) |
Dielectric Strength | 4 kVdc (peak) |
Insulation Resistance | > 1 GΩ (after damp heat) |
Rated Current Per Contact | 15 A rms continuous 30 A audio signal, duty cycle 50% |
Rated Voltage | 250 V (Insulation) |
Mechanical Characteristics | |
Lifetime | > 5000 mating cycles |
Locking Device | Quick Lock |
Environmental | |
Flammability | UL 94 HB |
Solderability | Complies with IEC 68-2-20 |
Manufacturer Information | |
Neutrik Part Number | NL4MMX |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 0.02 lbs [0.01 kg] |
