Description

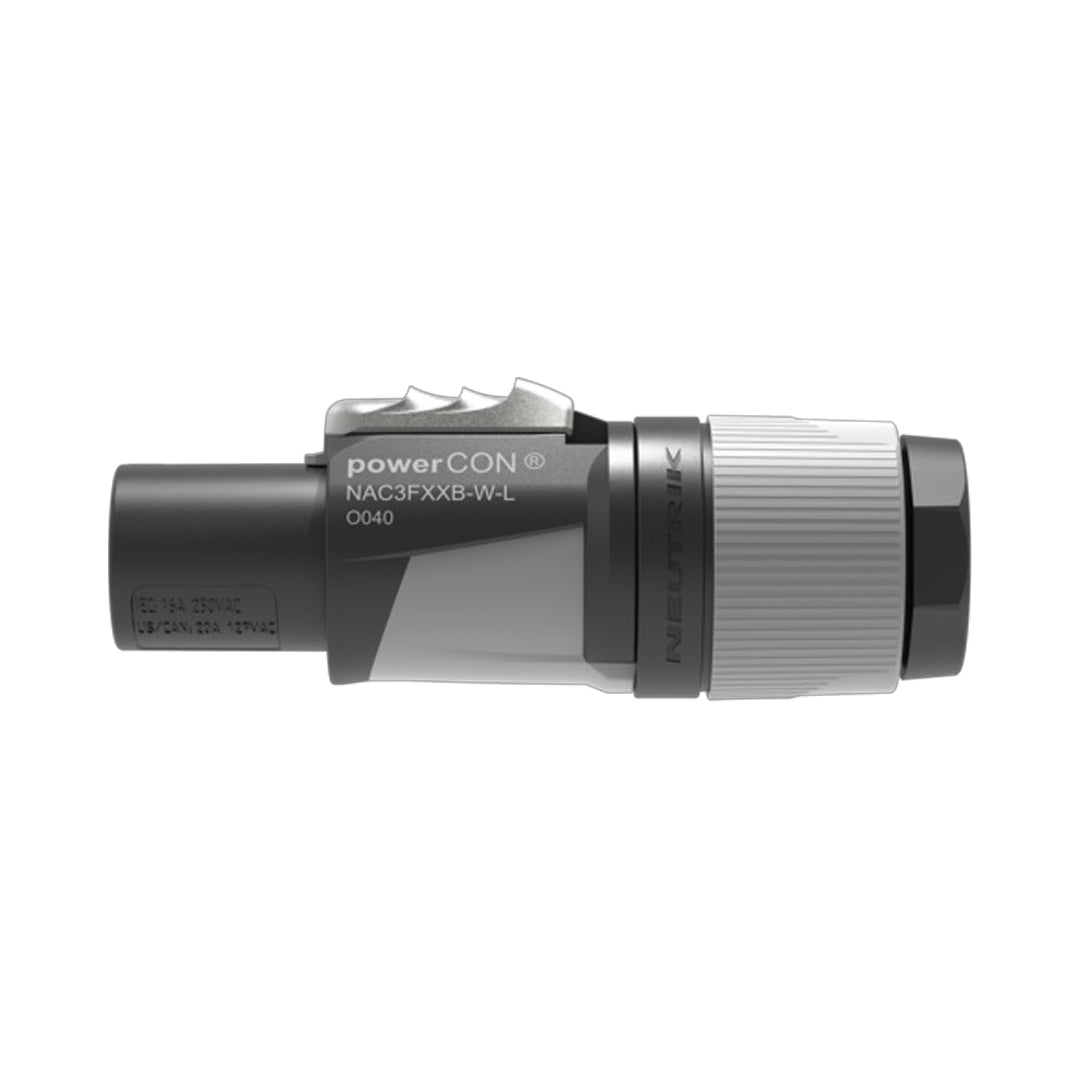

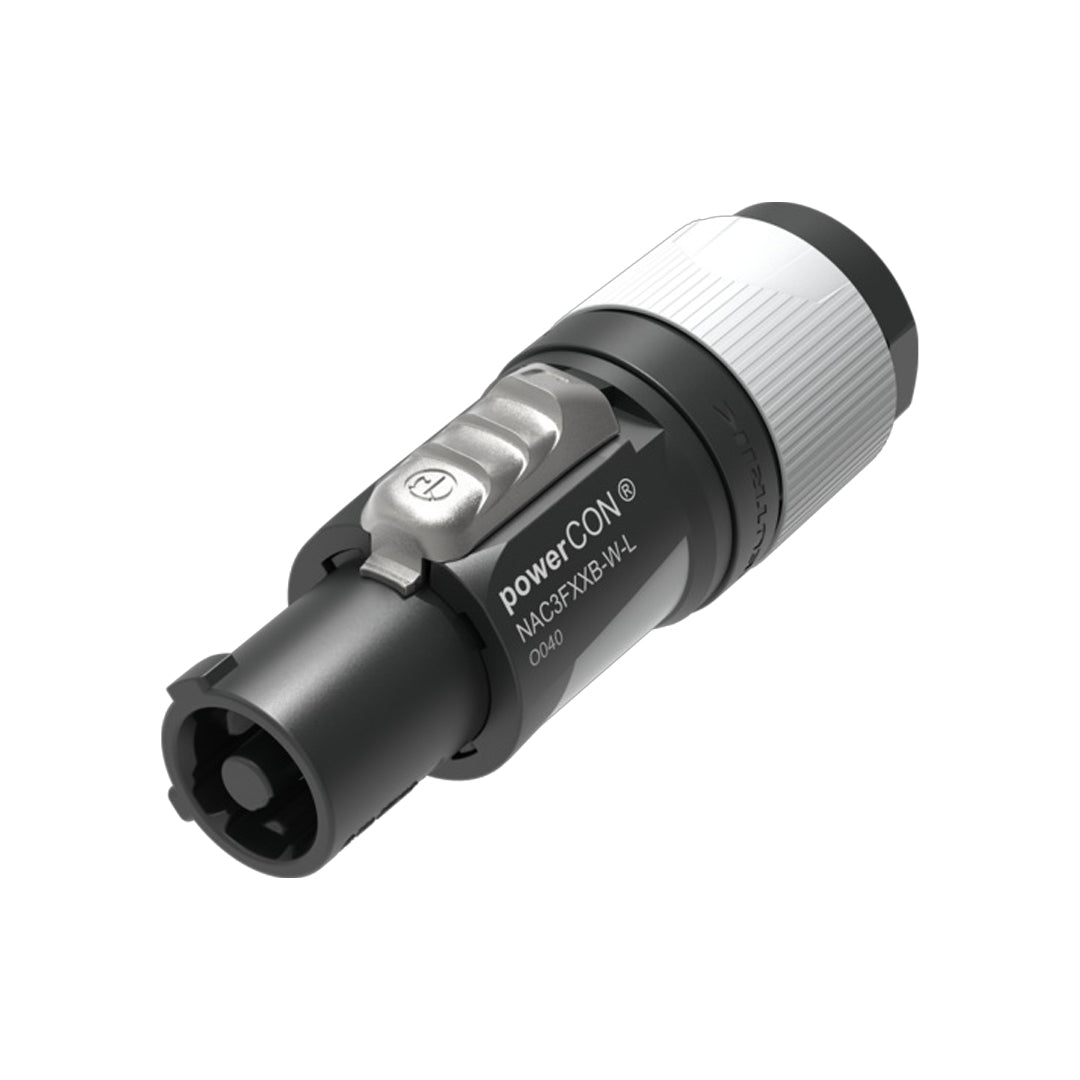

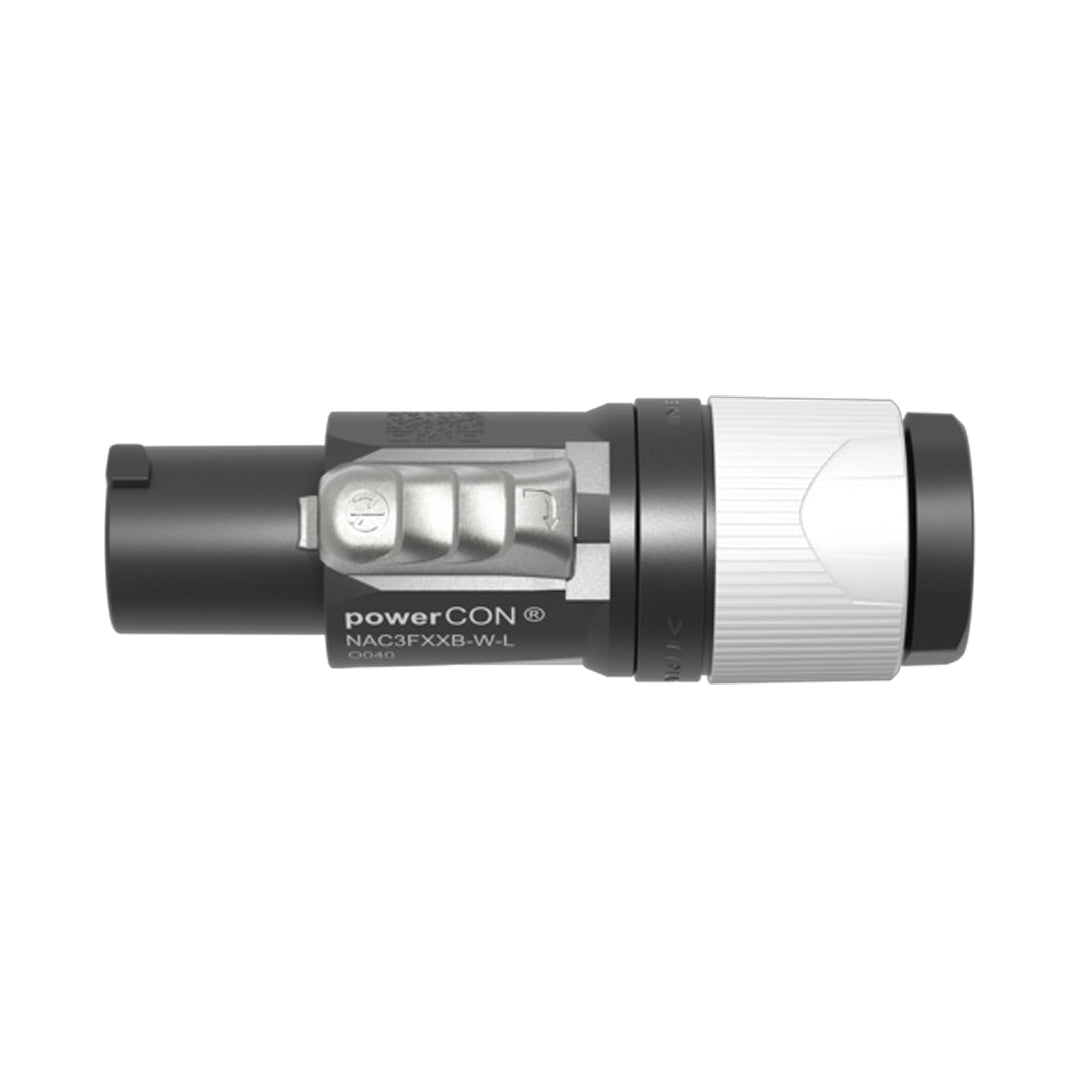

This locking 3 conductor equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Features:
- Ergonomic design with slip-proof two-component molded housing
- Unique locking bushing and strain relief for cable diameters 10 mm to 16 mm
- Superior quality standard, extremely robust and reliable
- Improved kink protection by two-component bushing
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
| Physical Characteristics | |
|---|---|
| Color | Grey |
| Temperature Range | -33℃ to +80℃ |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Zinc Diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain Relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Gender | Female |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
| Electrical Characteristics | |
| Contact Resistance | ≤ 2 mΩ |
| Dielectric Strength | 3 kVac (after mating cycles) |
| Insulation Resistance | > 10 GΩ (initially) |
| Number of Electronical Contacts | 2 + PE |
| Rated Voltage | 20 A 127 V AC / 14 - 12 AWG |
| Mechanical Characteristics | |
| Cable O.D. | 10 – 16 mm |
| Lifetime | Typically 5’000 mating cycles |
| Wire size | 1.5 – 2.5 mm² 14 – 12 AWG |
| Locking Device | Twist lock |
| Termination Type | Screw |
| Approvals | |
| cUL | Yes |
| Certifications | |
| VDE | Yes |
| Manufacturer Information | |
| Neutrik Part Number | NAC3FXXB-W-L |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.08 lbs [0.03 kg] |
