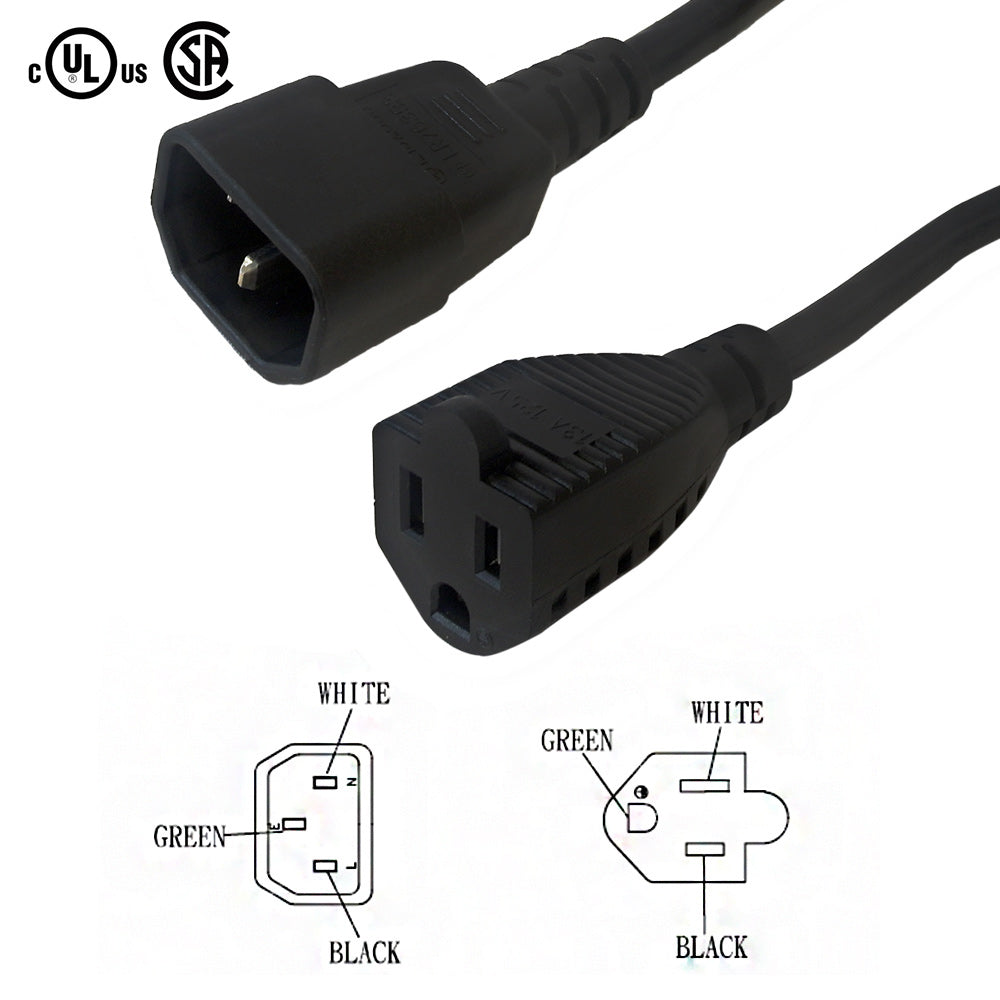

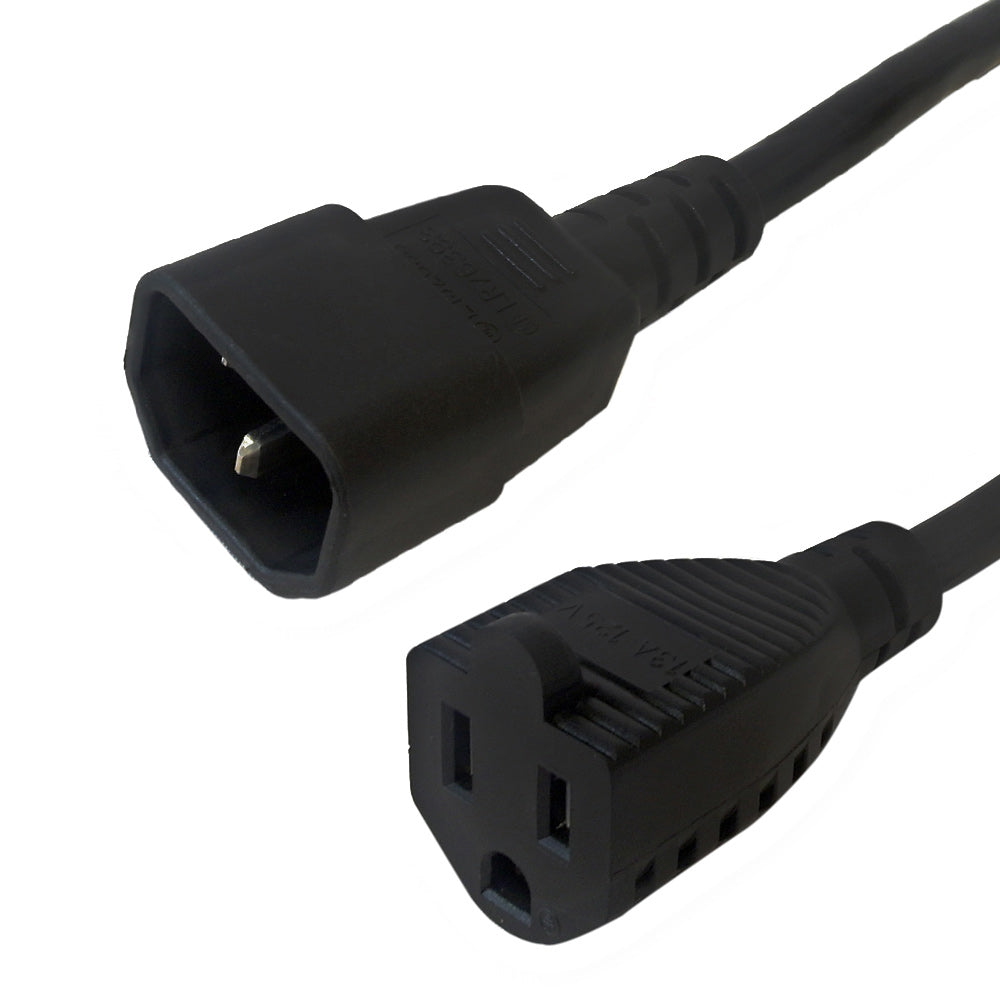

NEMA 5-15R to IEC C14 Power Cable - SJT Jacket

AC Power CordsSKU: PWC-106B-01

Length: 1ft
Wire Gauge: 16AWG
Price:
Sale price$3.20 CAD
Stock:
In stock

Description

This power cord consists of a C14 male on one end and a 5-15R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14 AWG / 16 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA 5-15R
Connector B IEC 60320 C14
Performance
Power Rating 15 Amp / 125 Volt (14 AWG)
13 Amp / 125 Volt (16 AWG)
Approvals
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft
0.24 lbs 0.49 lbs 0.70 lbs
