NEMA 5-15P to IEC C13 Power Cable - SJT Jacket - Shielded

AC Power CordsSKU: PW-105C-03SH

Length: 3ft
Price:
Sale price$4.00 CAD
Stock:
In stock

Description

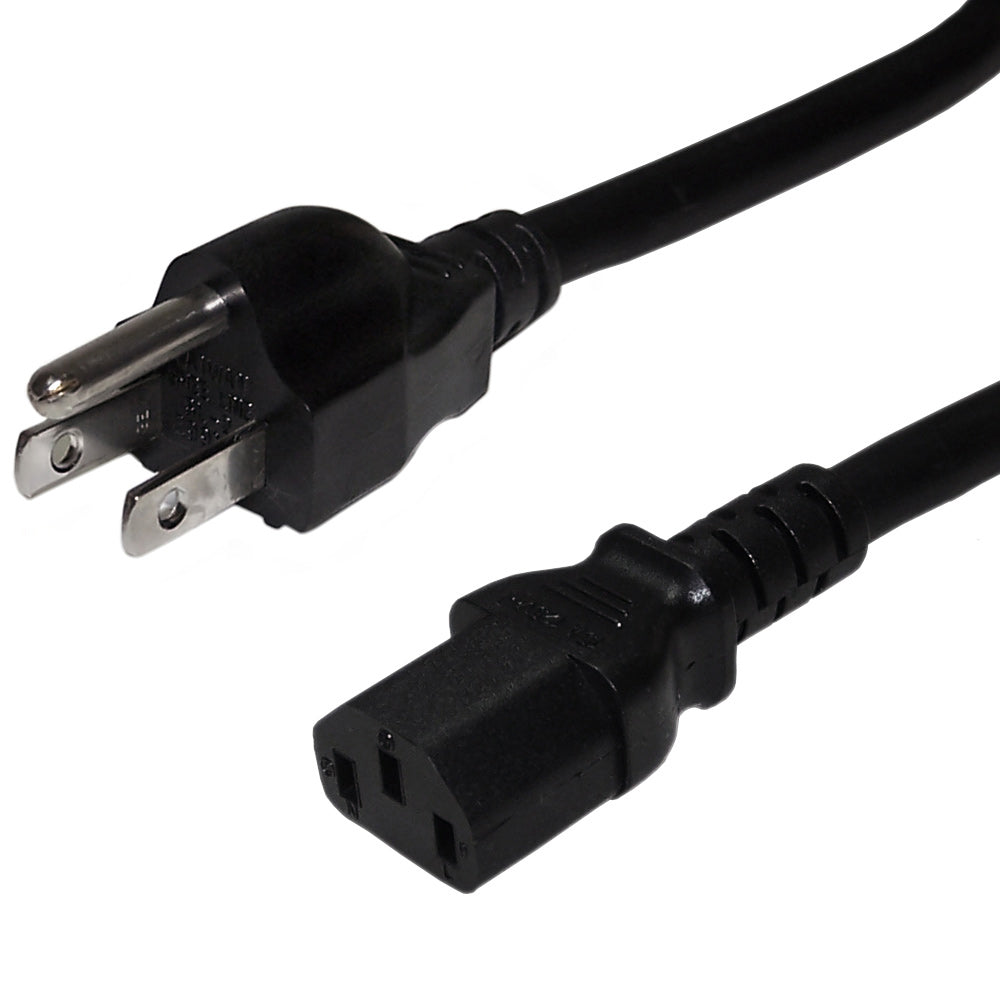

This shielded power cable consists of a 5-15P male on one end and a C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14 AWG
Jacket Heavy Duty SJT
Shielding Yes
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C

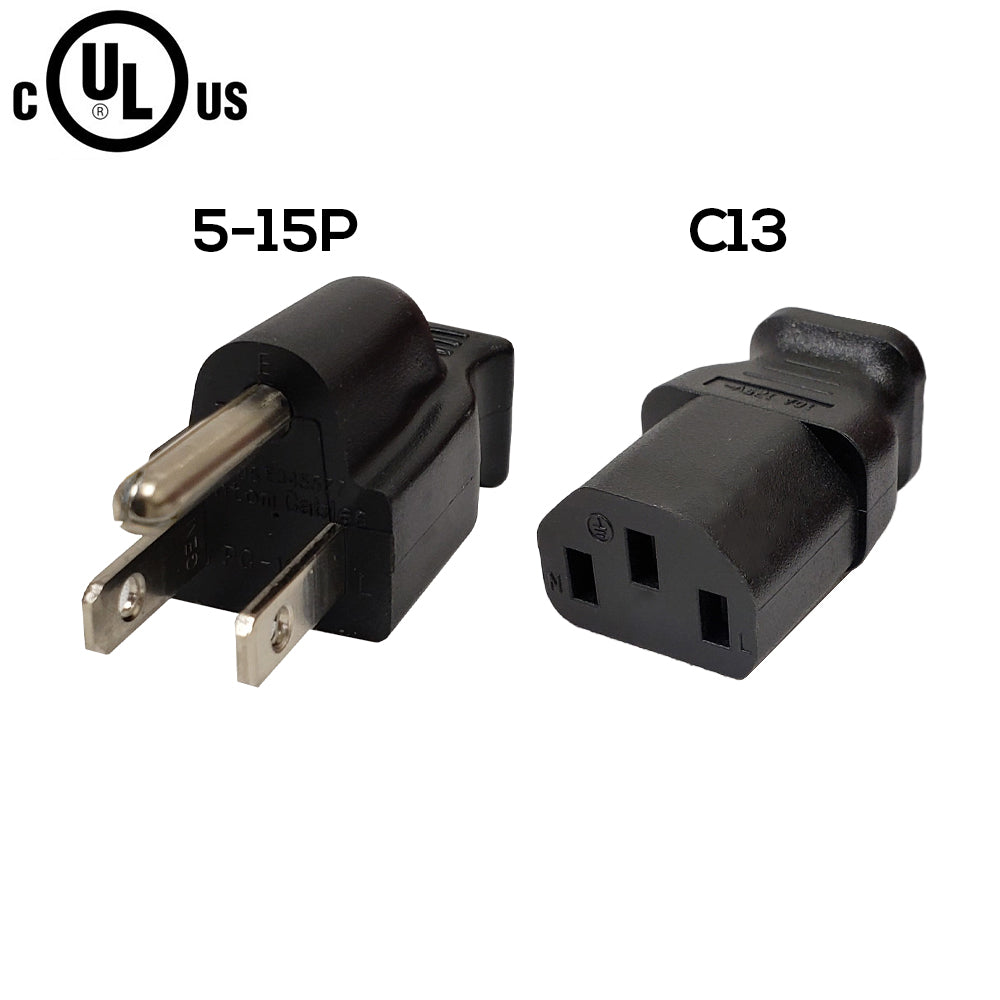

Connector(s)
Connector A IEC 60320 C13
Connector B NEMA 5-15P
Performance
Power Rating 15 Amp / 125 Volt
Approvals
C13 c(UL)us, CSA
5-15P c(UL)us, CSA
Cable c(UL)us, CSA
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft
0.35 lbs 0.70 lbs

Spec Sheets

Download attachment
