NEMA 5-15P to IEC C13 Power Cable - SJT Jacket

AC Power CordsSKU: PWC-105-01
Length: 1ft
Color: Black
Wire Gauge: 18AWG
Price:
$2.15 CAD
Stock:
In stock

Description

Overview

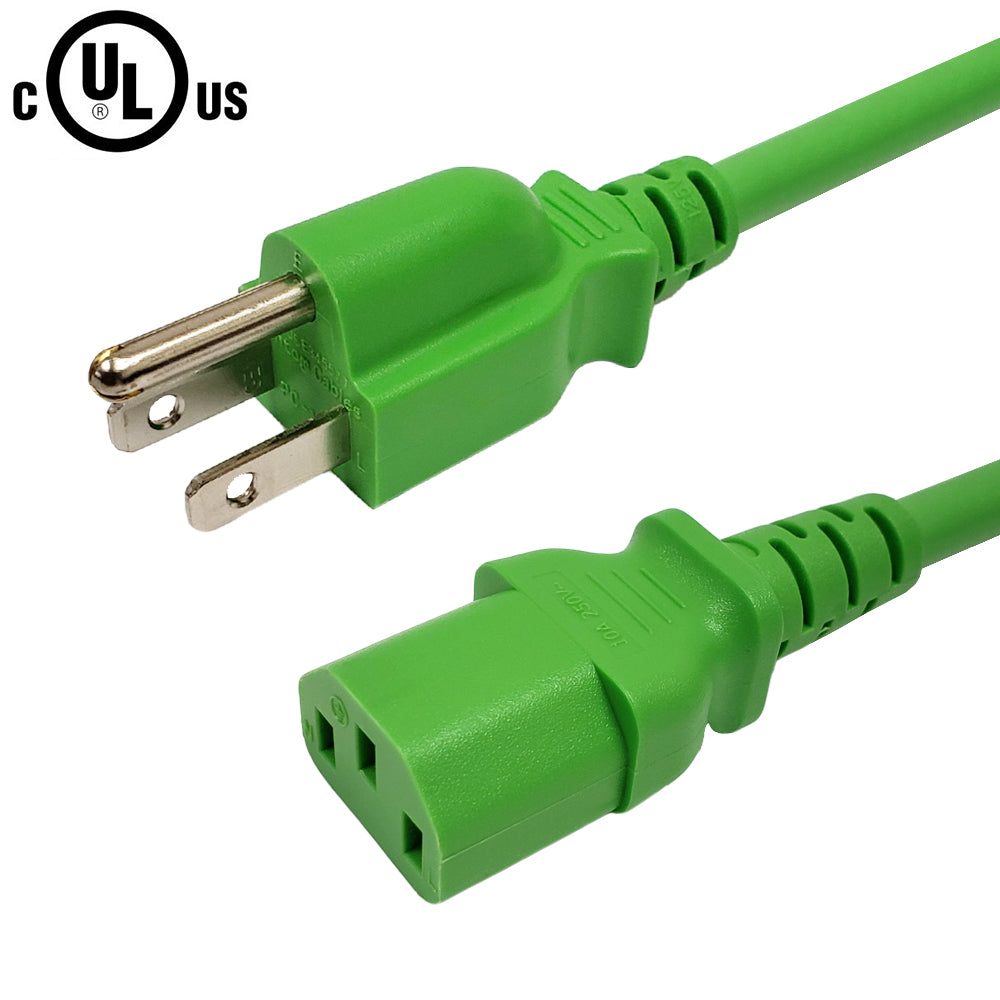

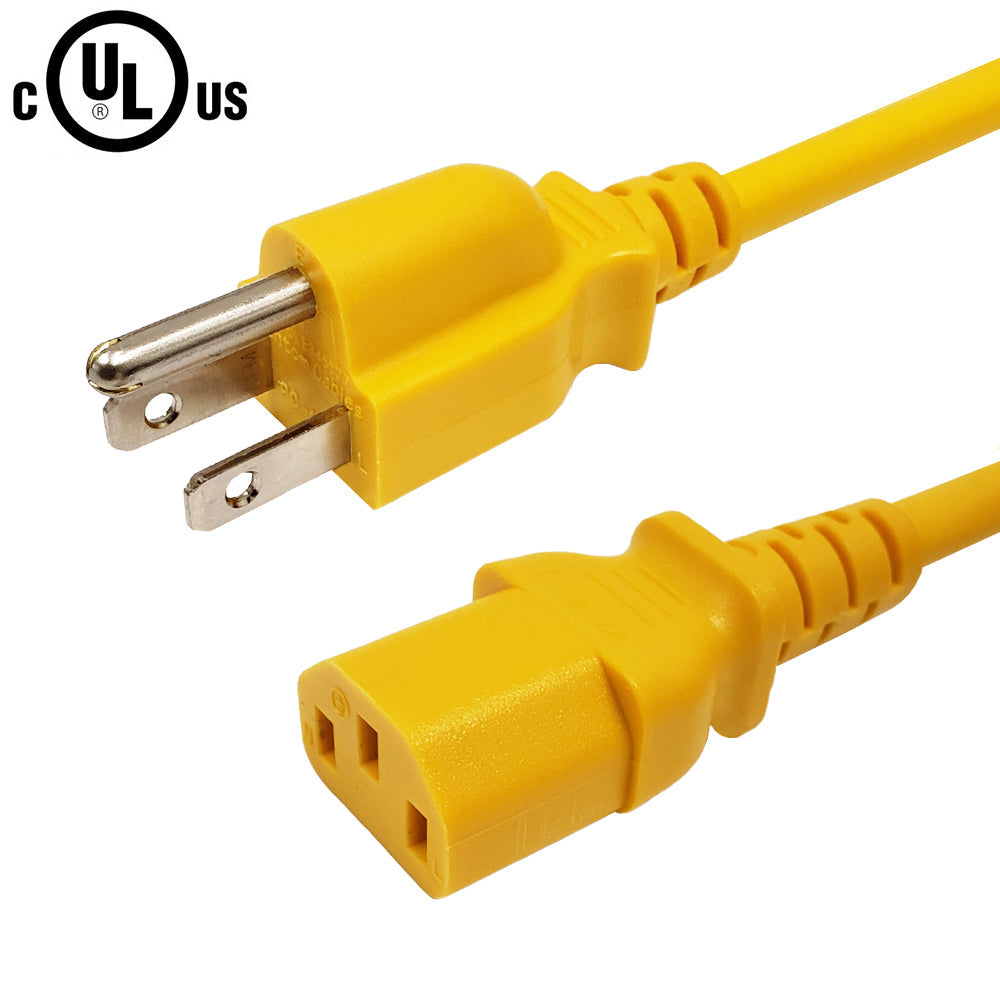

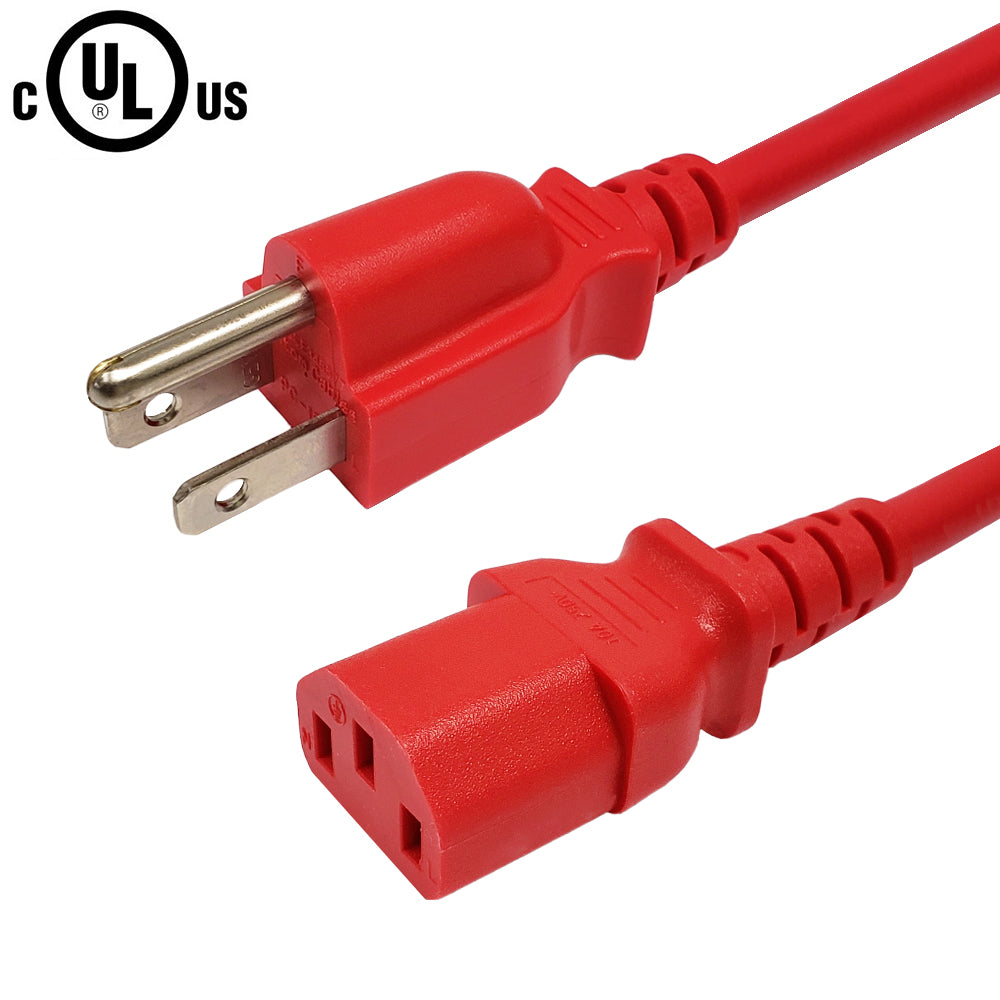

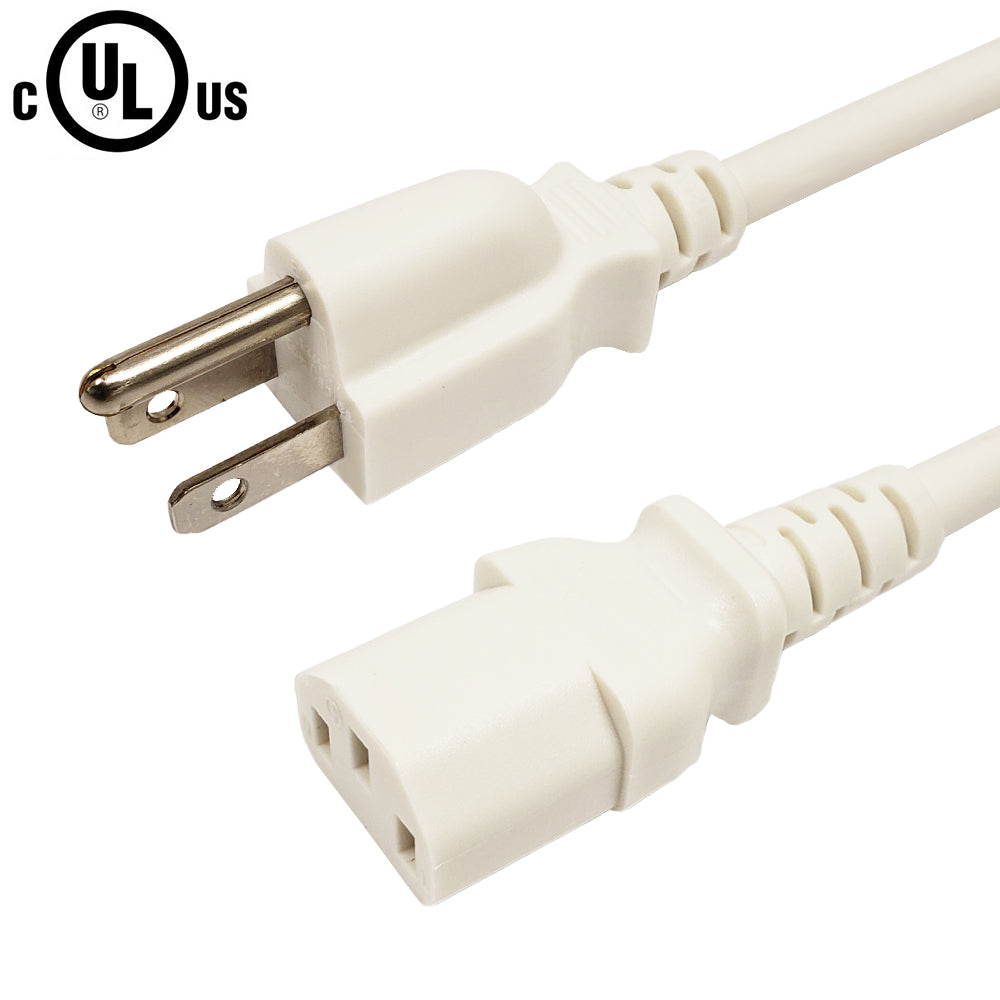

This power cord consists of a 5-15P male on one end and a C13 female on the other end. It is typically used to connect a networking equipment such as a server to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14AWG / 18 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 C13
Connector B NEMA 5-15P
Performance
Power Rating 15 Amp / 125 Volt (14AWG)
10 Amp / 125 Volt (18AWG)
Approvals
C13 c(UL)us
5-15P c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 1.5ft 2ft 3ft 4ft 5ft 6ft 8ft 10ft 12ft 15ft 25ft
0.12 lbs 0.19 lbs 0.22 lbs 0.29 lbs 0.35 lbs 0.44 lbs 0.50 lbs 0.59 lbs 0.70 lbs 0.80 lbs 1.00 lbs 1.57 lbs

Spec Sheets

Download attachment - PWC-105C-xx Spec Sheet

Download attachment - PWC-105-xx Spec Sheet
