Description
Overview

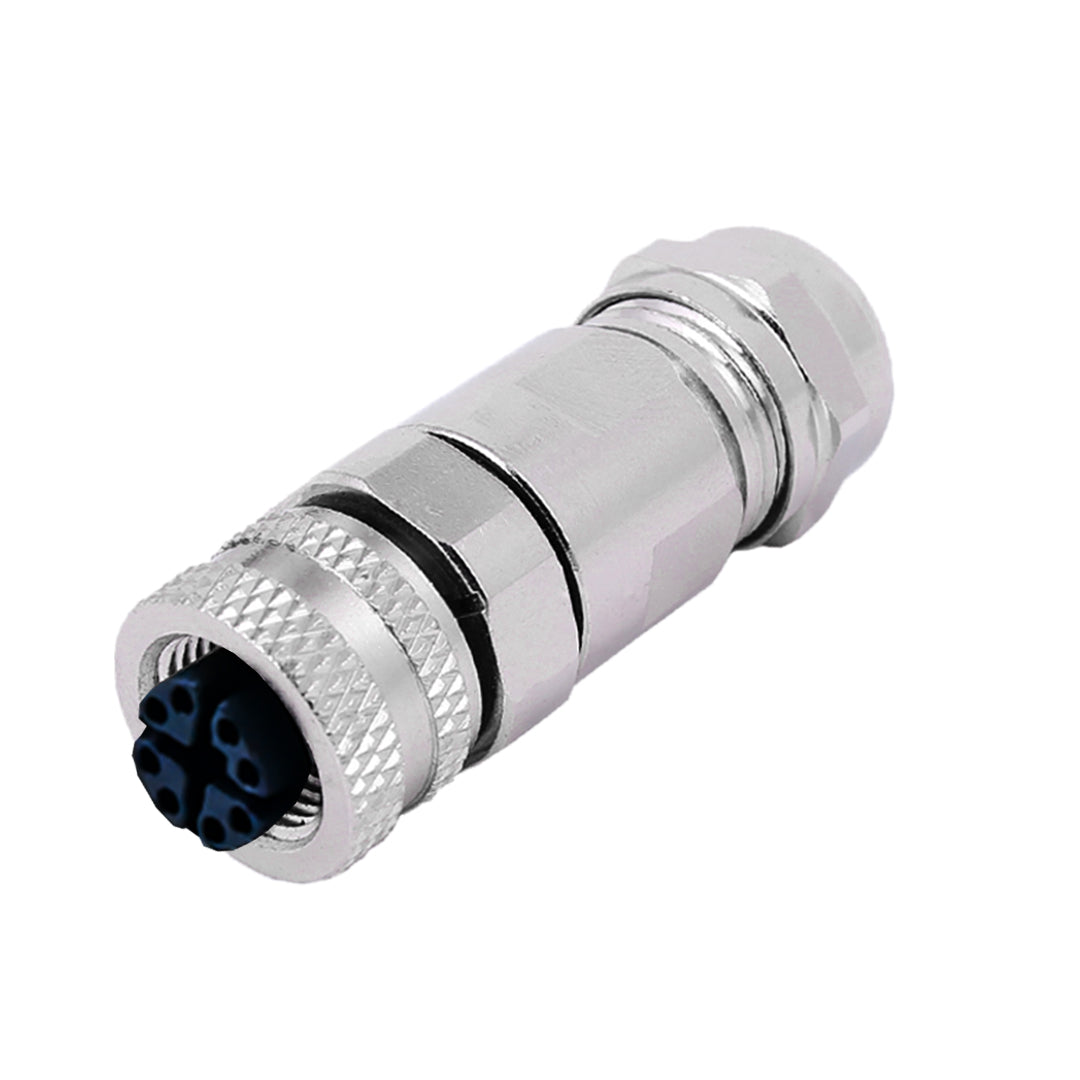

This M12 X-coded 8-pin female connector features a metal housing and crimp for 6–8mm cables. With 50VAC/60VDC/16A power rating, it’s ideal for industrial automation, sensors, robotics, and more.
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Silver | |
| Gender | Female | |
| Housing | Metal | |
| Contacts | 8 | |
| Termination | Solder | |
| Cable Diameter | 6 ~ 8mm | |
| Pin Contact Material | Copper-zinc alloy (CuZn) | |
|
Socket Contact Material |
Copper-tin alloy (CuSn) | |
| Contact Plating Material | Gold | |
| Mechanical Operation | ＞100 mating cycles | |
| Temperature Range | -40℃ to 85℃ | |
| Rated Voltage | 50V | |
| Rated Current(40℃) | 0.5A | |
| Contact Resistance | ≤10mΩ | |
| Insulation Resistance | ≥100MΩ | |
| Approvals/Environmental | ||
| RoHS | Compliant | |
| IP67/68 | Compliant | |
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-M12-82X | 0.2 lb |
