Description

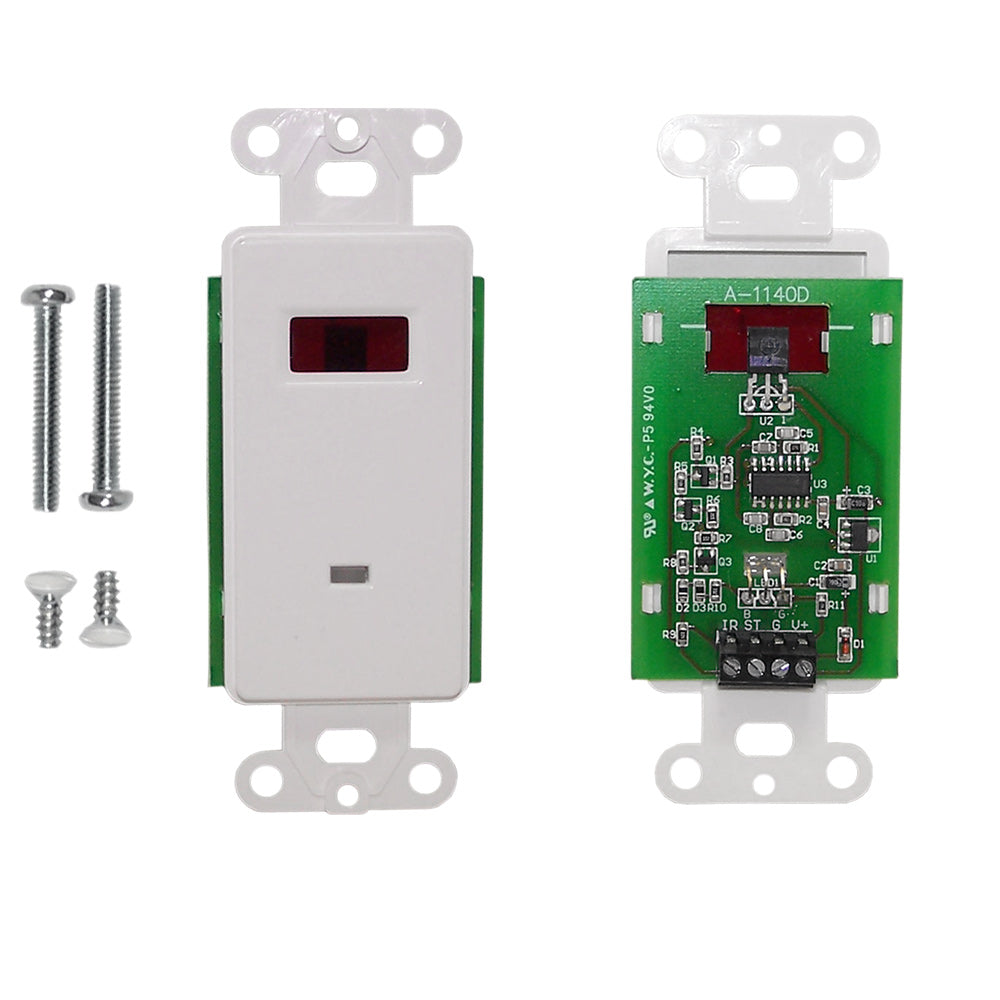

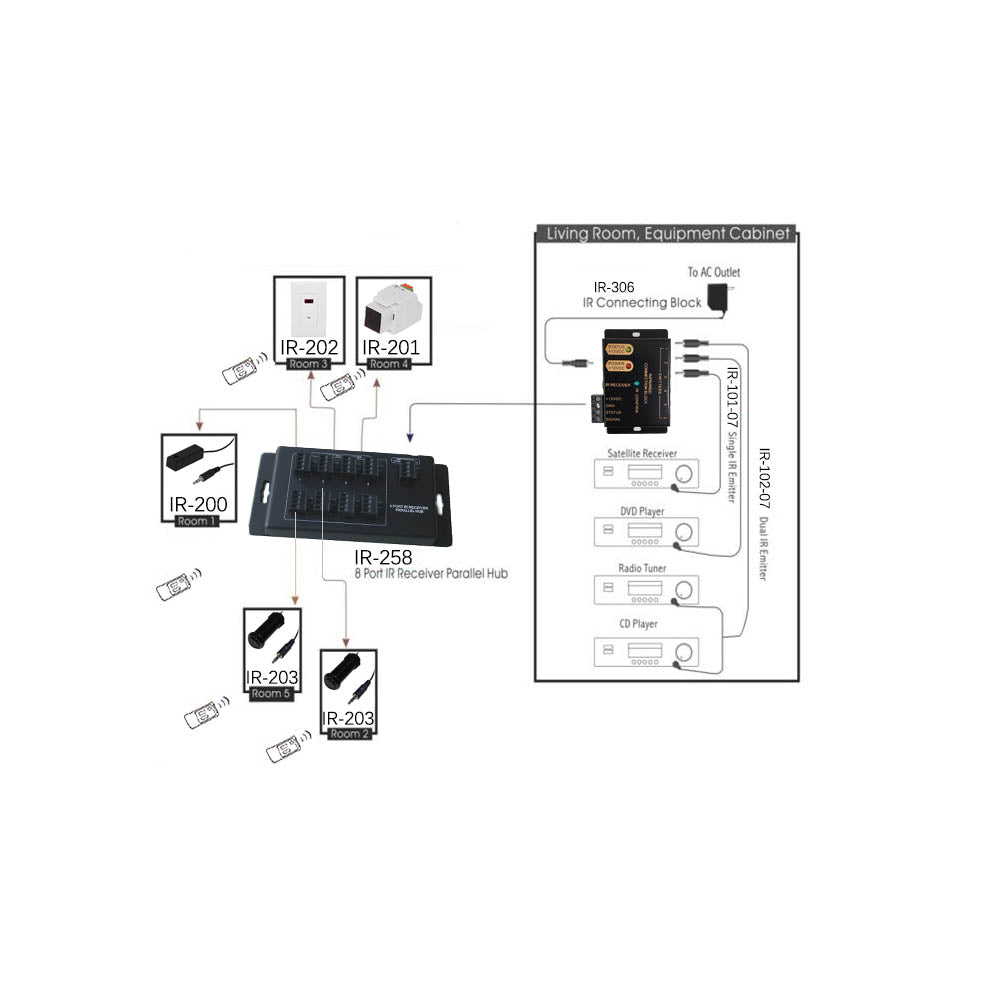

This dual band IR receiver mounts to a single gang standard electrical box using a decora cover plate. It is meant to receive remote control commands and be connected to an IR connecting block.
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | ABS |
| Plate Size | Single Gang |
| Wire Requirements | Cat5e/Cat6 Cable |
| Performance | |
| IR Frequency Range | 30 KHz to 60 KHz |
| Range | 40ft. at 38 KHz 25ft. at 56 KHz |
| System Status Indicator | Green LED |
| Talk Back Indicator | Blue LED |
| Power | 12VDC, 30mA Max |
| Status Power | 12VDC, 3mA Max |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.06kg] |
| Contents | |

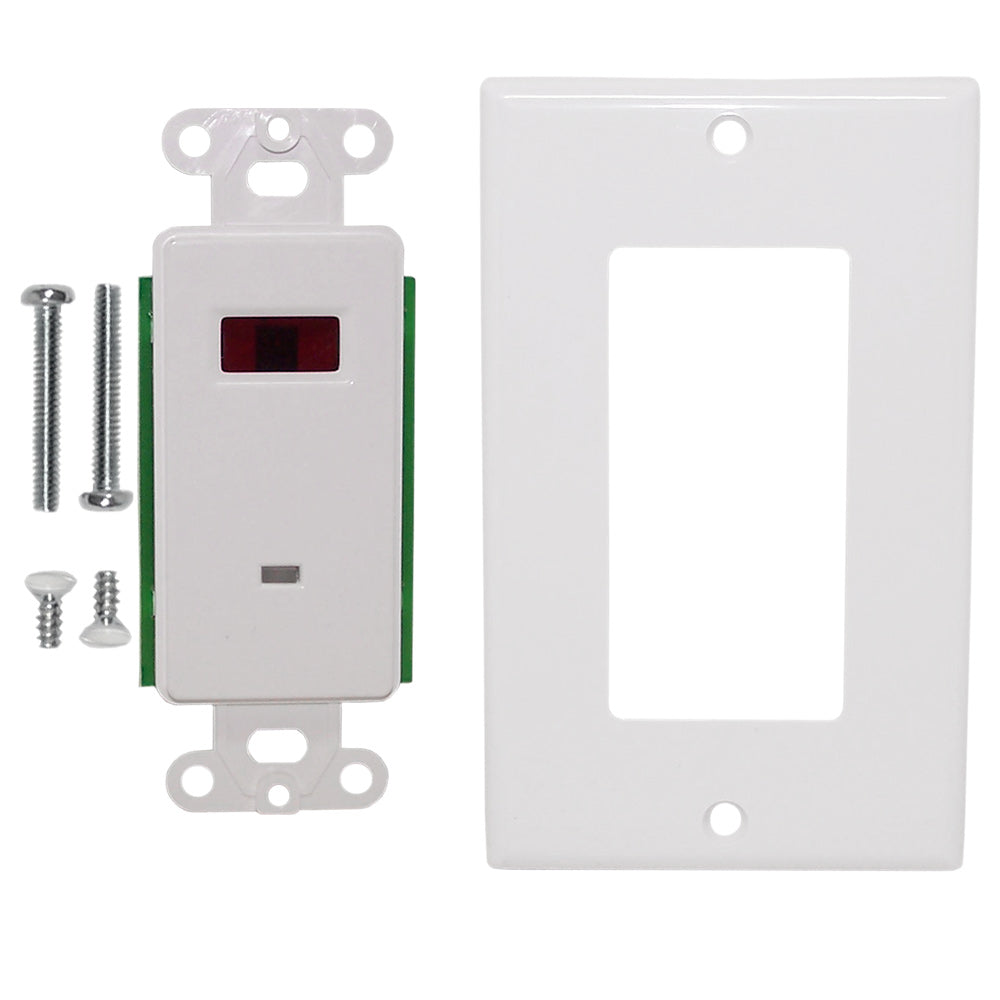

| Included in Package | 1 - IR Dual Band Decora Wall Plate Receiver Kit 2 - Pair of Screws |
