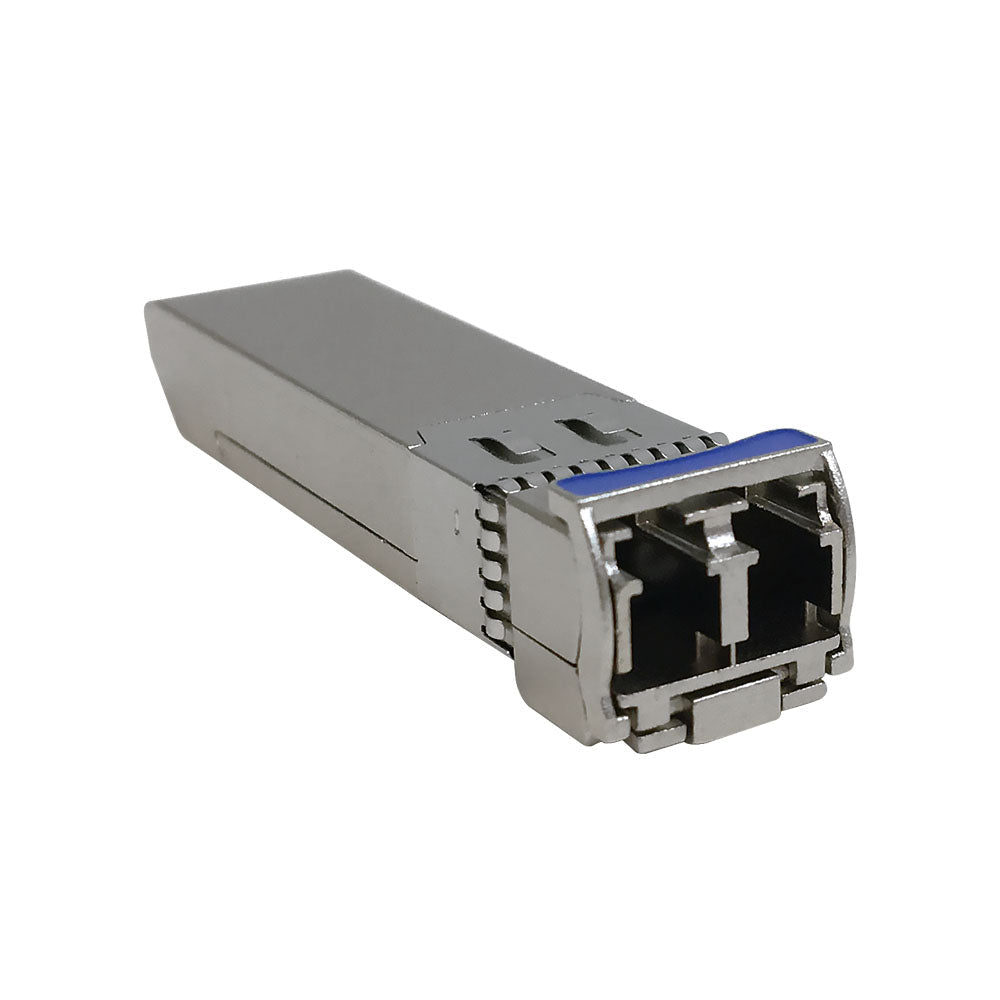

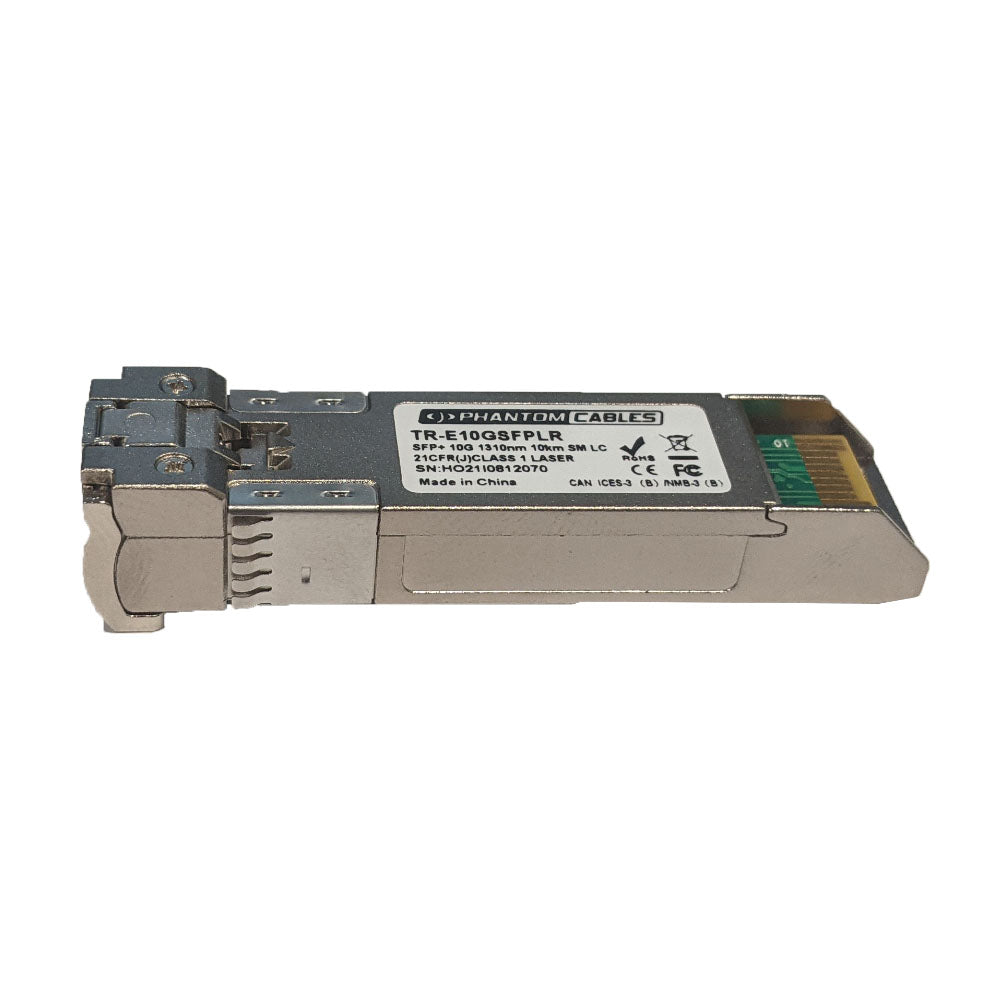

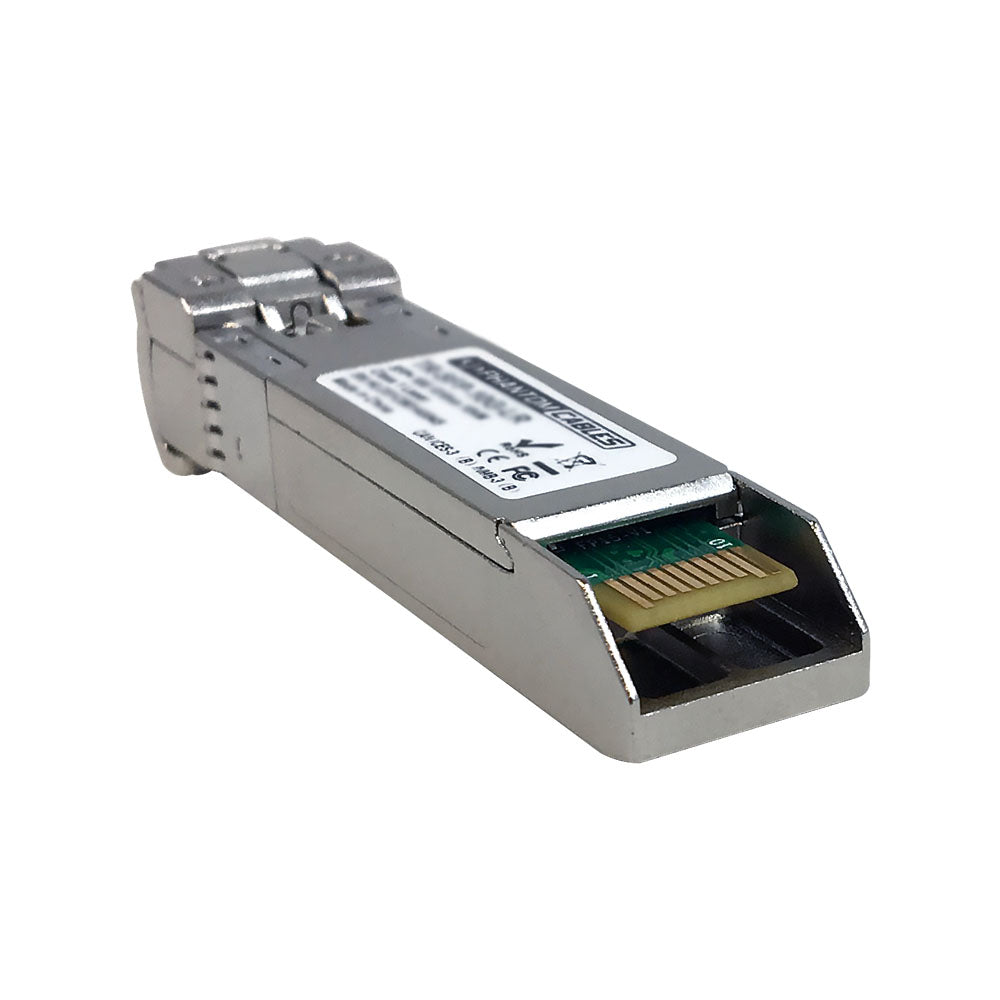

Intel® E10GSFPLR Compatible 10GBASE-LR SFP+ 1310nm SM LC 10km Transceiver

SFP+ / QSFP+ TransceiversSKU: TR-E10GSFPLR

Compatible Brand: Intel
Price:
Sale price$31.65 CAD
Stock:
In stock

Description

This is a Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 10 Gbps up to 10km over singlemode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.

Intel and the Intel logo are trademarks or registered trademarks of ntel Corporation. This product is not certified or endorsed by Intel.

Physical Characteristics
Dimensions 57mm x 15mm x 9mm (L x W x H)
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 100°C
Laser Type Class 1
Connectors
Connector LC Duplex
Performance
Media Supported 10GBase-LR Singlemode Fiber
Maximum Transmission Distance

10km

Wave Length 1310nm
DDM Support Yes
Certifications
CE Yes
FCC Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01kg]
Warranty Information
Warranty Limited Lifetime

Spec Sheets

Download attachment
