Description

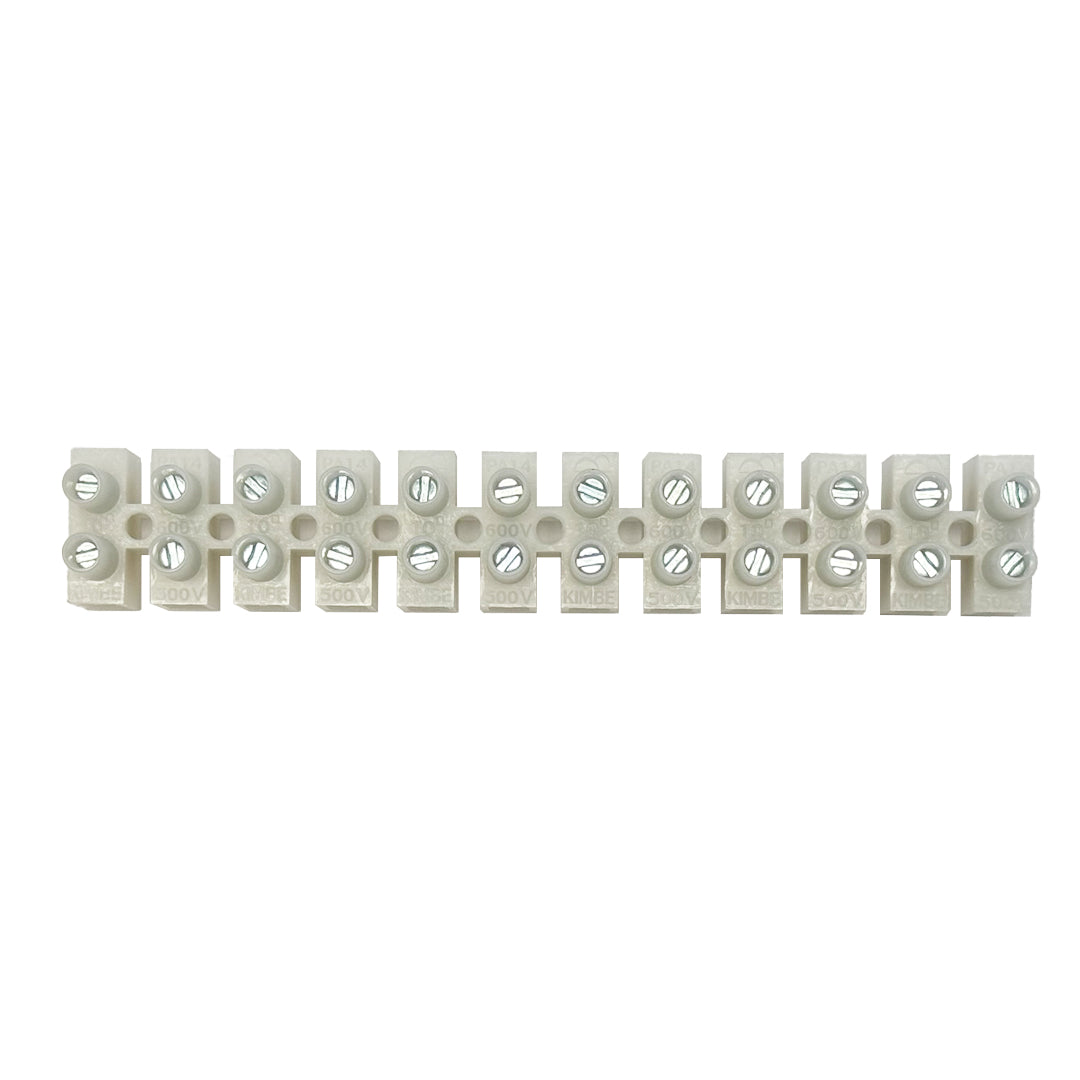

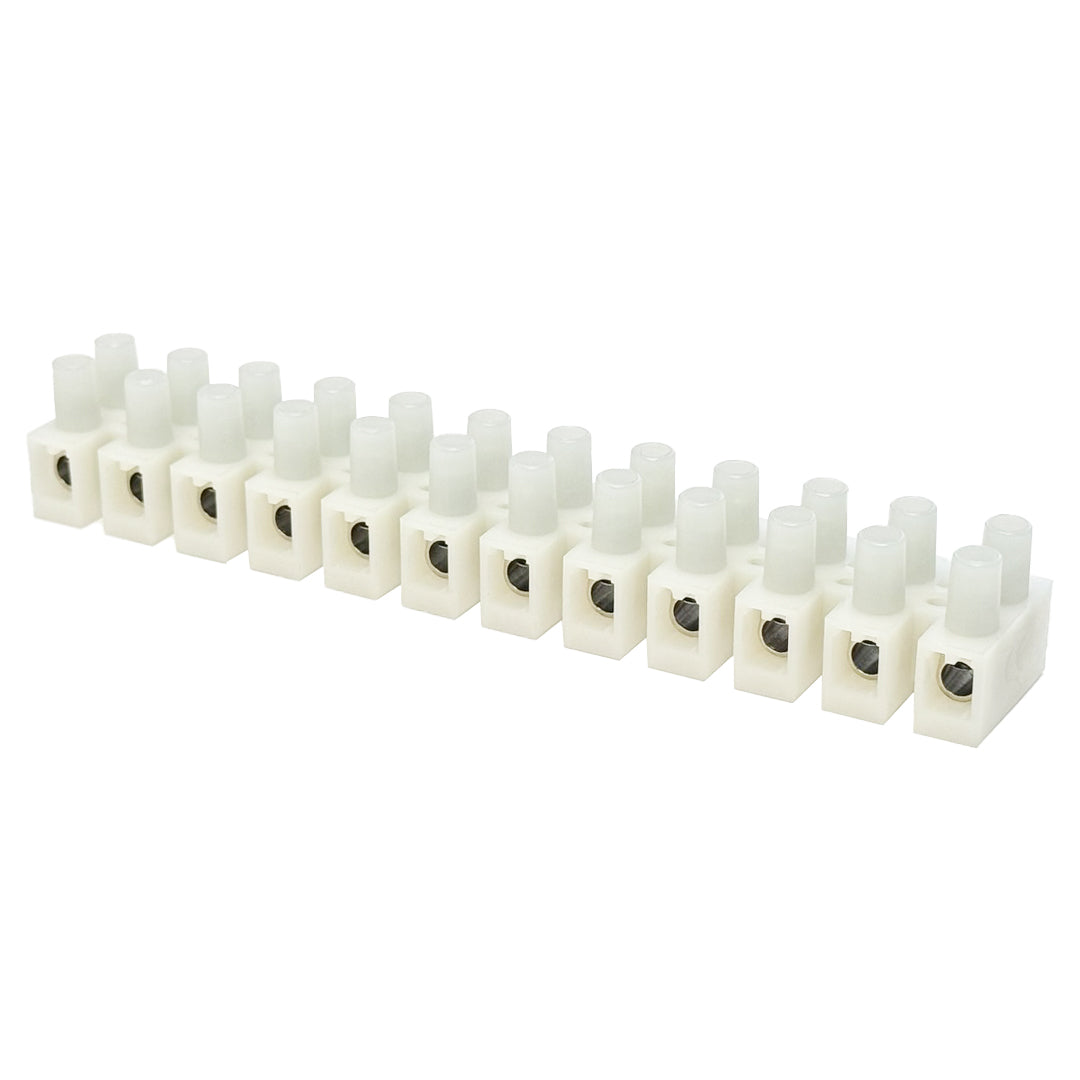

This insulated terminal block has 12 terminals that can house a variety of wire gauges. It is used to join two 22AWG to 8AWG solid or stranded copper wires together. The modular design allows for the block to be cut into smaller sections or stacked end-to-end.
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | PA66(UL94V-2 flame-retardant) |
|
Connector Chip
|
Terminal(Brass)
Flat plate(stainless steel) |
| Number of Terminals | 12 |
| Wire Size | 22-8 AWG |
| Voltage Rating | CQC/VDE-500V UL-600V |
|
Overall Length
|
158mm±1.0mm |
| Terminal Hole Size |
5.2mm±0.1mm |
| Fix Screw size |
ΦA 4.40mm |
| Amperage | VDE-57A UL-30A |
| Approvals | |
| CQC | Yes |
| VDE | Yes |
| c(UL)us | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.17 lbs [0.07 kg] |
