This HDMI video extender allows you to extend your display up to 40 meters at a resolution of 4K@30Hz or 70 meters at a resolution of 1080p away from your source device over a single CAT6.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -15℃ ~ 55℃ |
| Power | |
| Input Voltage | 125V |
| Power Supply | 2 x 5 volt, 1 amp DC Converter |
| Compatibility | |
| PC to Monitor | Compliant |
| PC to TV | Compliant |
| DVD to Monitor | No |
| DVD to TV | Compliant |
| Connector(s) | |
| Transmitter | HDMI Input Female, RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
| Performance | |
| Video | 480i/ 480p/ 720p/ 1080i/ 1080p@60Hz/ 1080p/ 4K@30Hz |
| Video Bandwidth | 165MHz Max |
| Transmission Range | Single CAT-6 cables up to 70 meters, Max resolution 1080p Single CAT-6 cables up to 40 meters, Max resolution 4K@30Hz |
| Audio | DTS-HD, Dolby-true HD, DTS, Dolby-AC3, DSD |
| HDCP Compliant | Compliant |
| Supports EDID 2D, 3D | Compliant |
| Compatibility | |
| Sync Device and Display | Set the resolution of the source device to match the display resolution. The extender will not work if the source devices resolution is set higher than the displays capabilities |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.5 lbs [0.2kg] |
| Package Weight | 1 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |

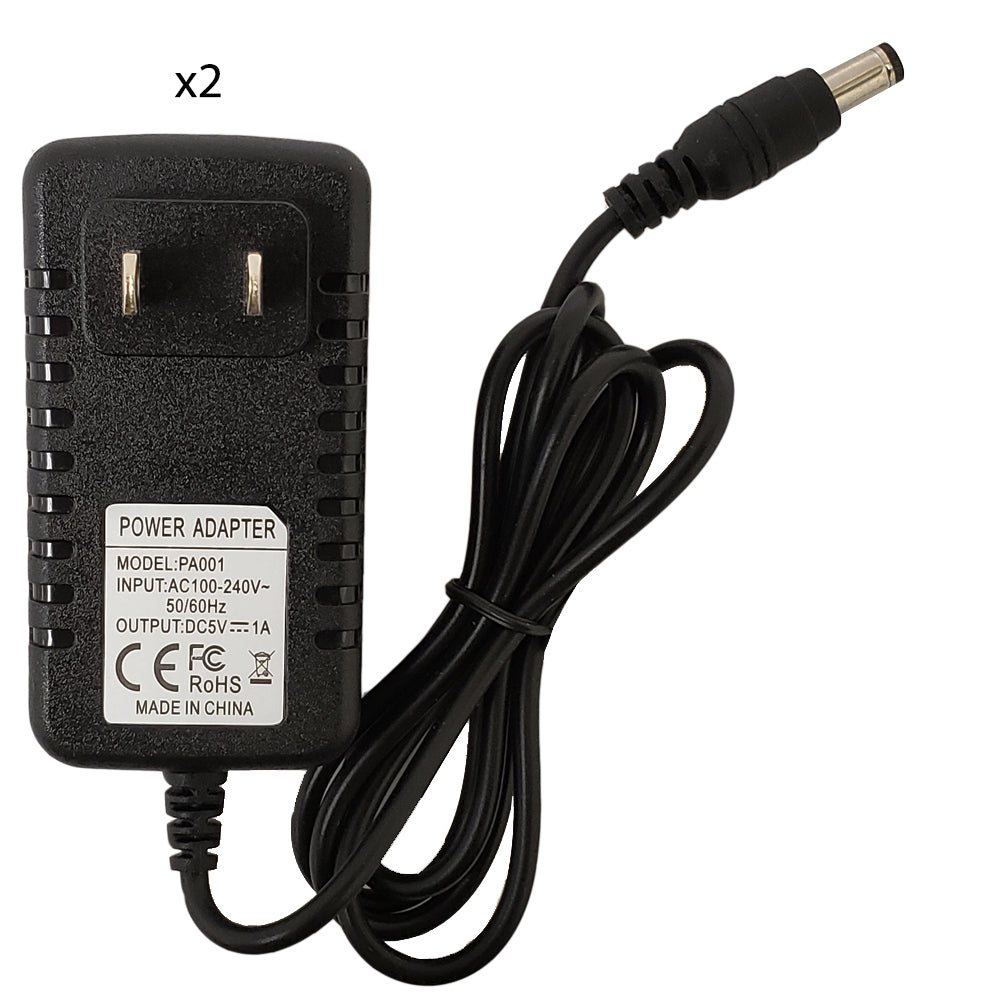

| 2 - DC5V Power Adapter |
|
| 1 - Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on this product to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
