Description

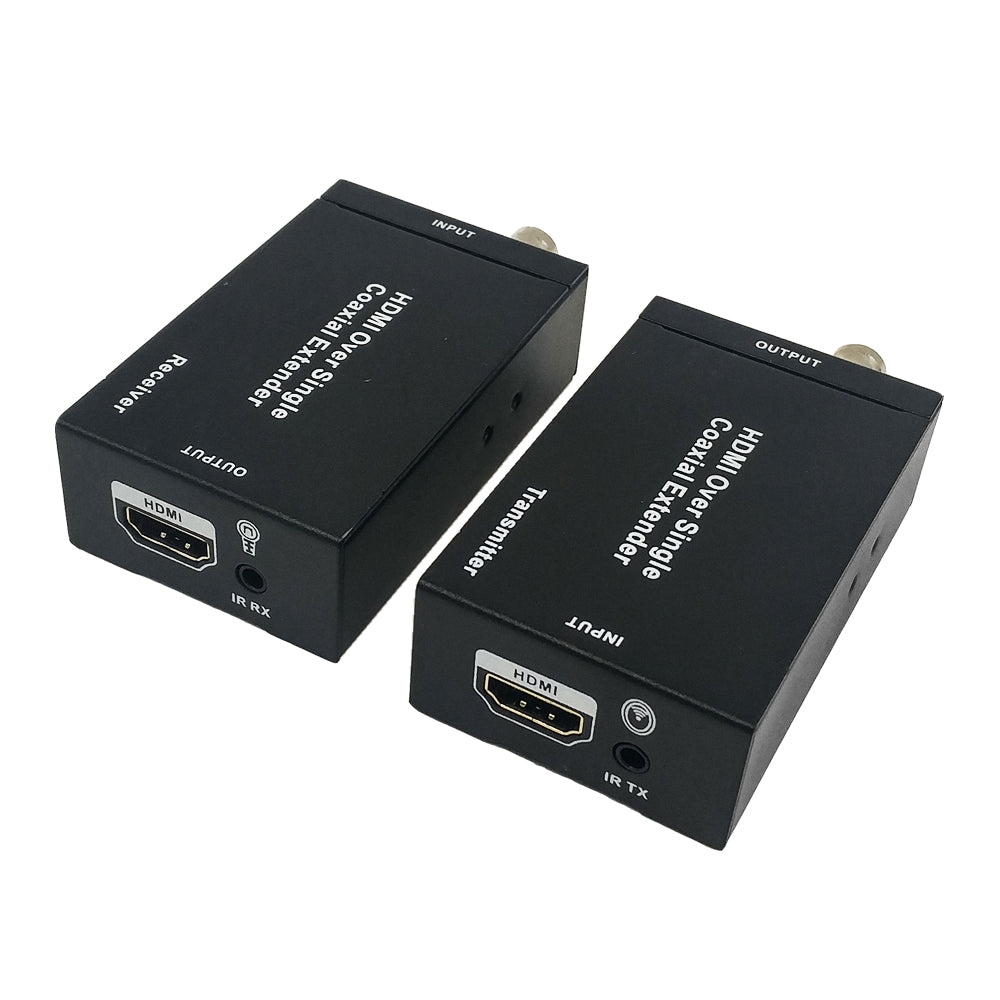

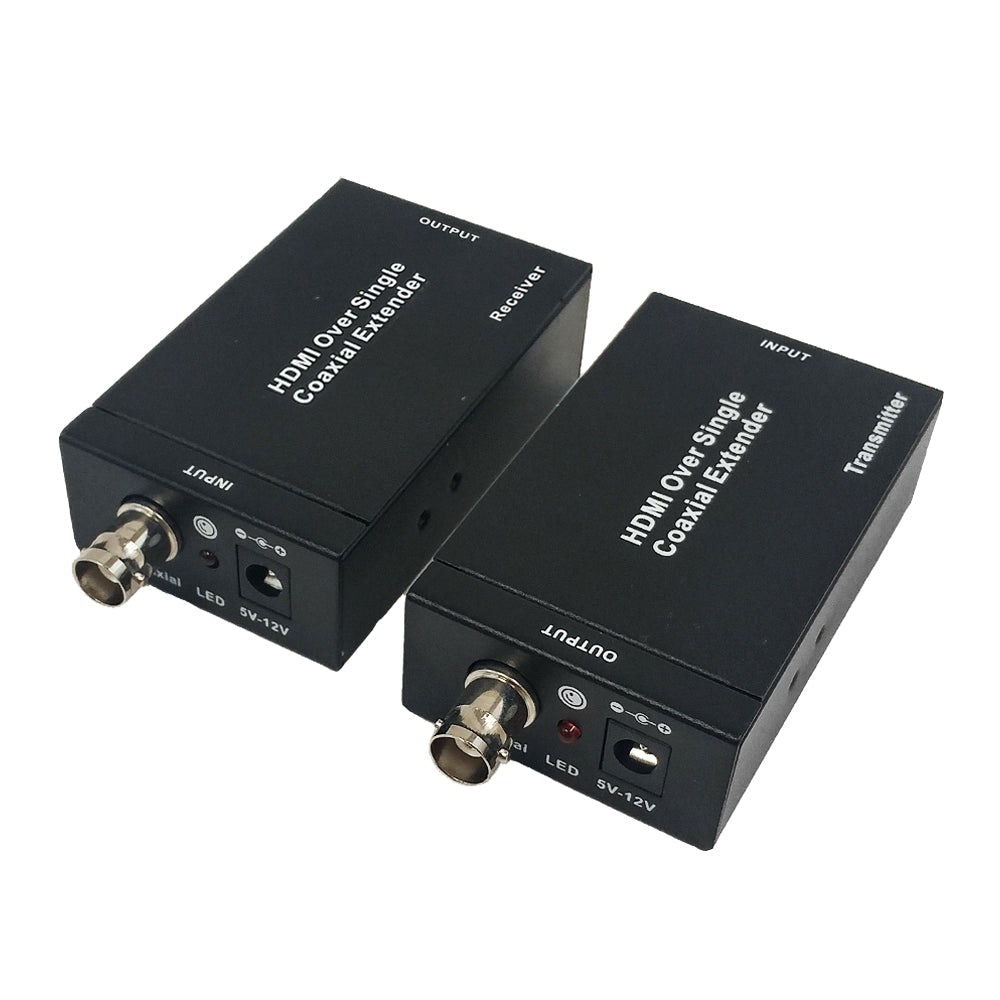

This HDMI video extender over coax cable allows you to extend an HD display up to 328ft (100 meters) away from your source device over a coax cable at a resolution of 1080p/60Hz.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 40℃ |
| Power | |
| Input Voltage | 100-240V |
| Power Supply | 2 x 5 volt, 1 amp DC Converter |
| Connector(s) | |
| Transmitter | HDMI Input Female, BNC Female |
| Receiver | HDMI Output Female, BNC Female |
| Performance | |
| Video | 480i / 480p / 720p / 1080i / 1080p @ 60Hz |
| Video Bandwidth | 225MHz Max |
| IR Control | Yes, Bi-directional wide band IR |
| Transmission Range | Full HD up to 100 meters (328 ft) HD up to 200 meters (656 ft) SD up to 300 meters (984 ft) |
| Audio | Over Coax |
| HDMI Compliant | Yes, 1.3 |
| HDCP Compliant | Yes, 1.1 |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.5 lbs [0.2kg] |
| Package Weight | 1.08 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 1 - IR Tx |
|
| 1 - IR Rx |
|

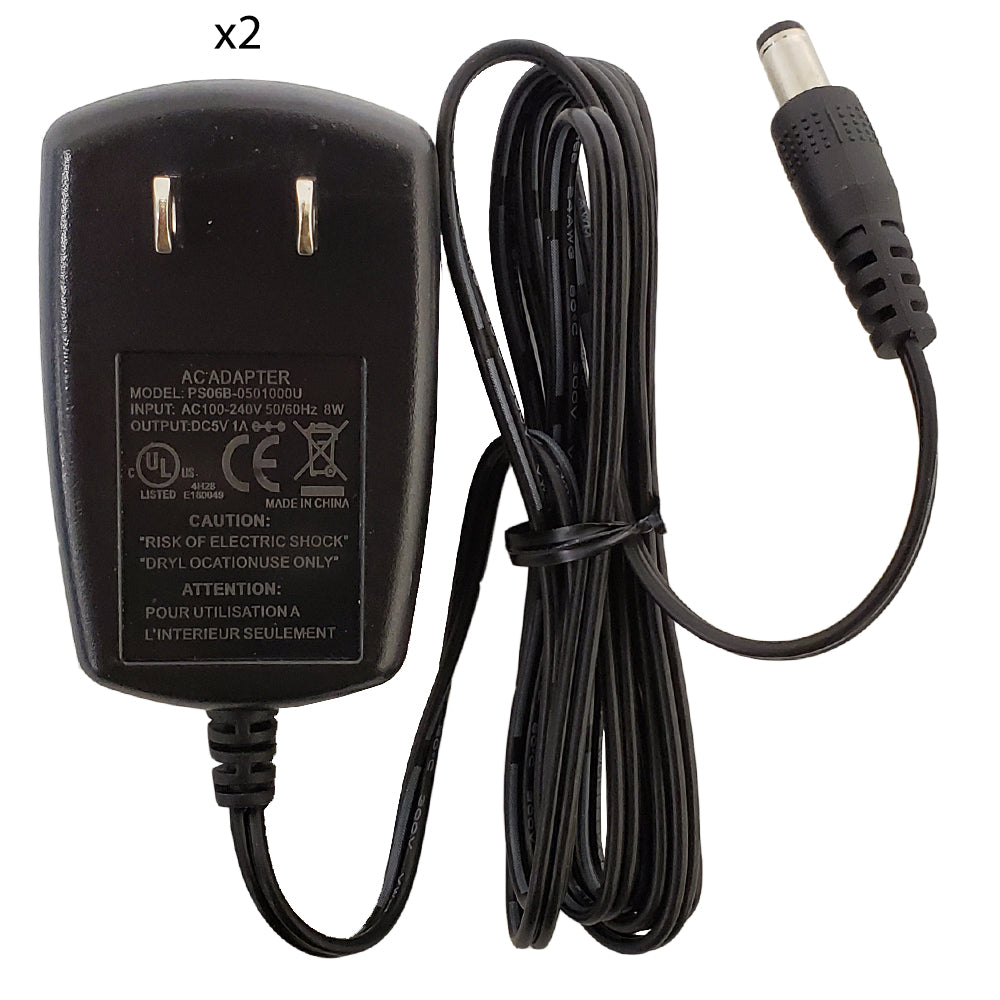

| 2 - DC5V Power Adapter |
|
| 1 - Manual | |
