Description
This HDMI extender allows you to extend your display up to 70m away from your source device over Cat6/6A cables at a resolution of
4K@60Hz with audio extraction and HDMI loop out.
Features:
- HDMI2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
- Colour depth: 8/10/12bit
- The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG
- Support bi-directional IR control signal pass-through
- EDID copy pass-through function between the source device and display device
- Support ARC and audio de-embedding, audio is output through the optical fiber port of the receiver
- Support bi-directional POC (Power over Cable) function
- IR Frequency 20K-60KHz
- Black Metal enclosure
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Relative Humidity | 20 ~ 90% RH (non-condensing) |
| Dimensions | Tx/Rx : 90mm x 68mm x 18mm |
| Power | |
| Power Consumption | 3.36 W Max. |
| Power Supply | DC 12 Volt, 1Amp; Support bi-directional POC function |
| Connector(s) | |
| Transmitter | Input: 1 x HDMI IN (Type A, 19-pin female) Output: 1 x HDMI OUT (RJ45) 1 x CAT OUT (RJ45) Control: 1 x Service (Micro-USB Jack) 1 x IR IN (3.5mm Stereo Mini-Jack) 1 x IR OUT (3.5mm Stereo Mini-Jack) |
| Receiver | Input: 1 x CAT IN (RJ45) Output: 1 x HDMI OUT (Type A, 19-pin female) 1 x TOSLINK Control: 1 x Service (Micro-USB Jack) 1 x IR IN (3.5mm Stereo Mini-Jack) 1 x IR OUT (3.5mm Stereo Mini-Jack) |
| Performance | |
| HDMI Compliant | HDMI 2.0b |
| HDCP Compliant | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4KsK@60Hz RGB/YCBCR 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 4K2K@60Hz 4:4:4 - 70m 1080P - 70m (CAT6/6a cable) |
| Color Space | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Format | HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | Tx: 0.35 lbs Rx: 0.34 lbs |
| Package Weight | 1.44 lbs |

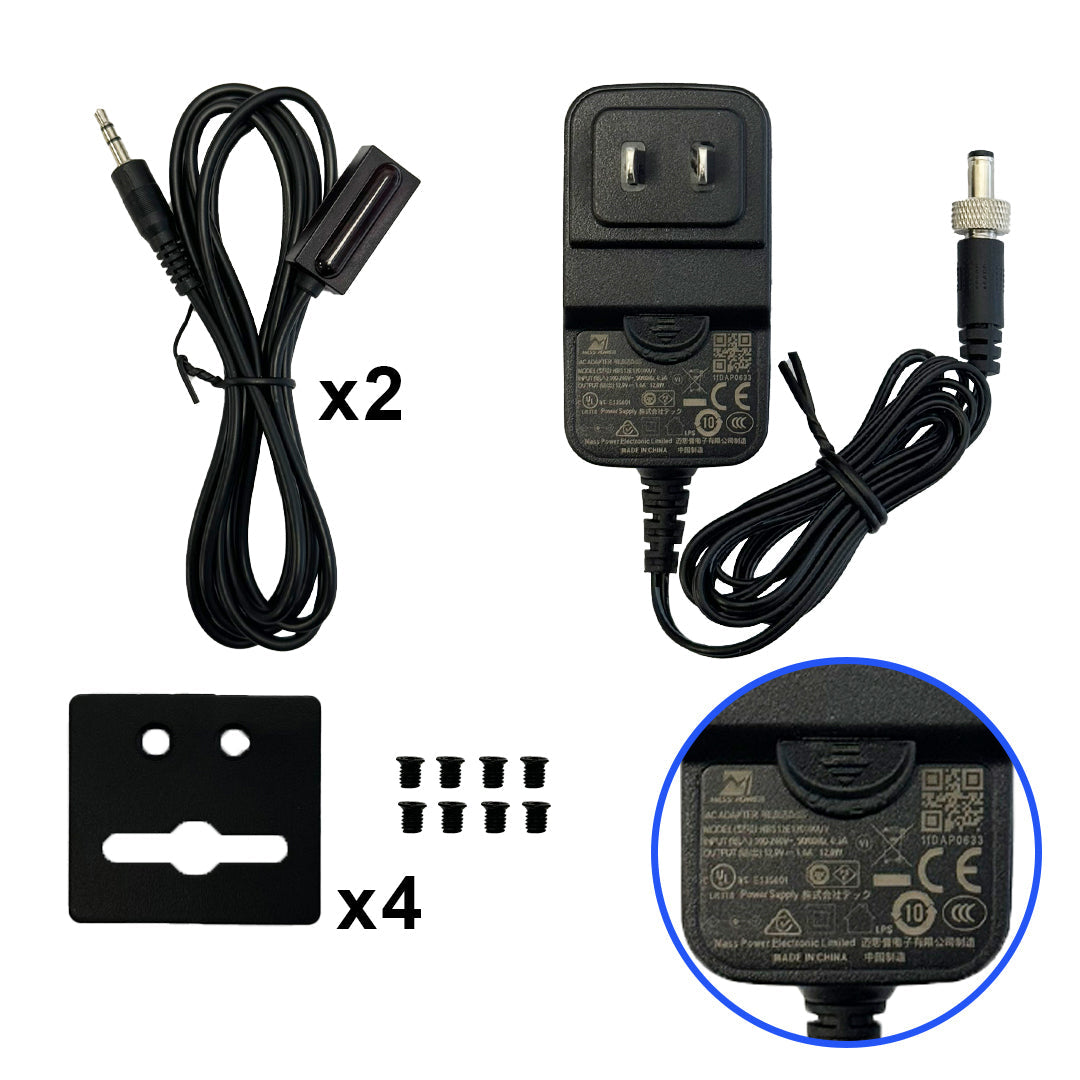

| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 1 - IR Blaster Cable (1.5 meters) | |
| 1 - IR Wideband Receiver Cable (1.5 meters) | |
| 1 - DC12V/1A Locking Power Adapter | |
| 4 - Mounting Ears | |
| 8 - Machine Screws (KM3*4) | |
| 1 - Manual | |
| Warranty Information | |
| Warranty | 1 Year Warranty |
