Description

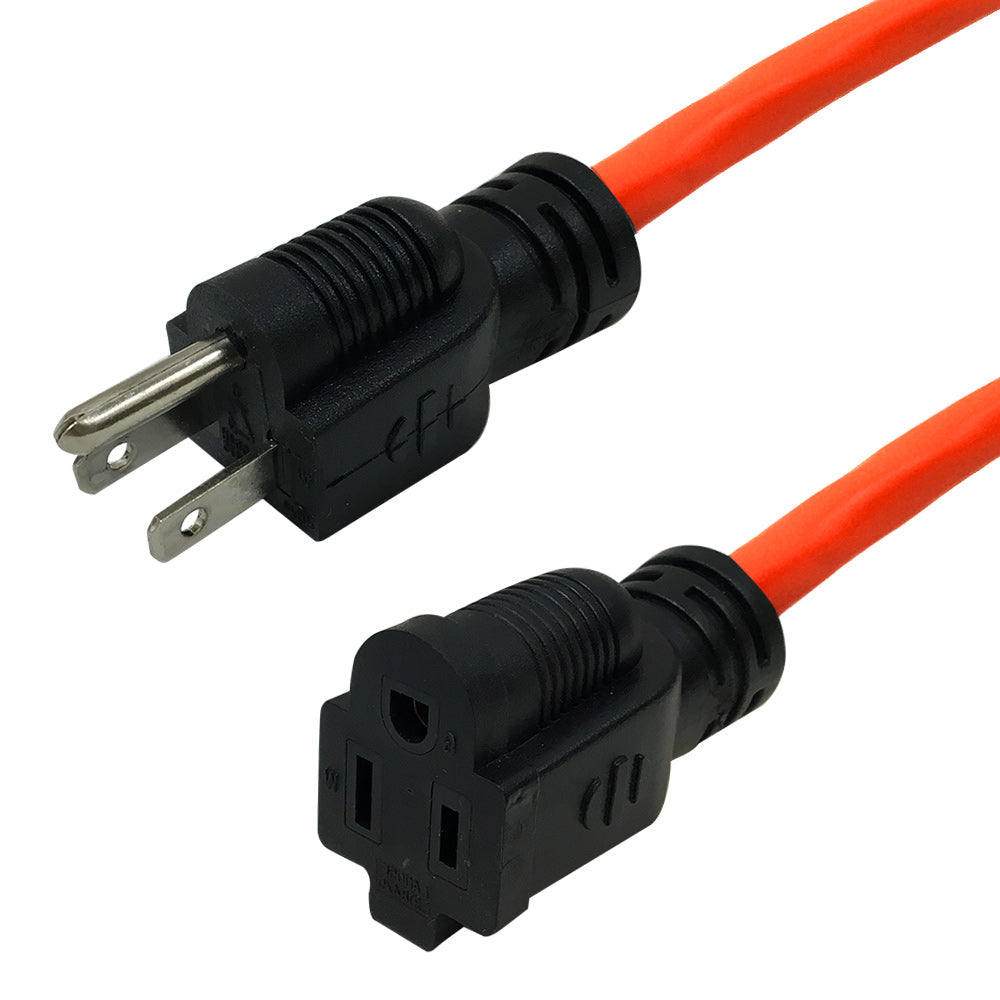

This indoor/outdoor power extension cord consists of a 5-15P male on one end and a 5-15R female on the other end. It is constructed of SJTW jacket material which is water and UV resistant. The cord is made with 3 conductors of 16 gauge wire.
Physical Characteristics | ||||
|---|---|---|---|---|
| Color | Orange | |||
| Connector Plating | Nickel-Coated | |||
| Number of Conductors | 3 Conductor | |||
| Wire Gauge | 16AWG | |||
| Jacket | SJTW | |||
| Strain Relief | Molded | |||
| Temperature Rating | -40 deg C to 60 deg C | |||
Connector(s) | ||||
| Connector A | NEMA 5-15P | |||
| Connector B | NEMA 5-15R | |||
Performance | ||||
| Cable length | 15 foot | 25 foot | 50 foot | 100 foot |
| Power Rating | 13 Amp / 125 Volt | 13 Amp / 125 Volt | 13 Amp / 125 Volt | 10 Amp / 125 Volt |
| Maximum Watts | 1625W | 1625W | 1625W | 1250W |
| UV Resistant Jacket | Yes | |||
| Water Resistant Jacket | Yes | |||
Approvals | ||||
| c(UL)us | Yes | |||
Packaging Information | ||||
| Package Quantity | 1 | |||
| 15ft | 25ft | 50ft | 100ft |
|---|---|---|---|
| 1.20 lbs | 1.90 lbs | 3.40 lbs | 6.95 lbs |
