Description

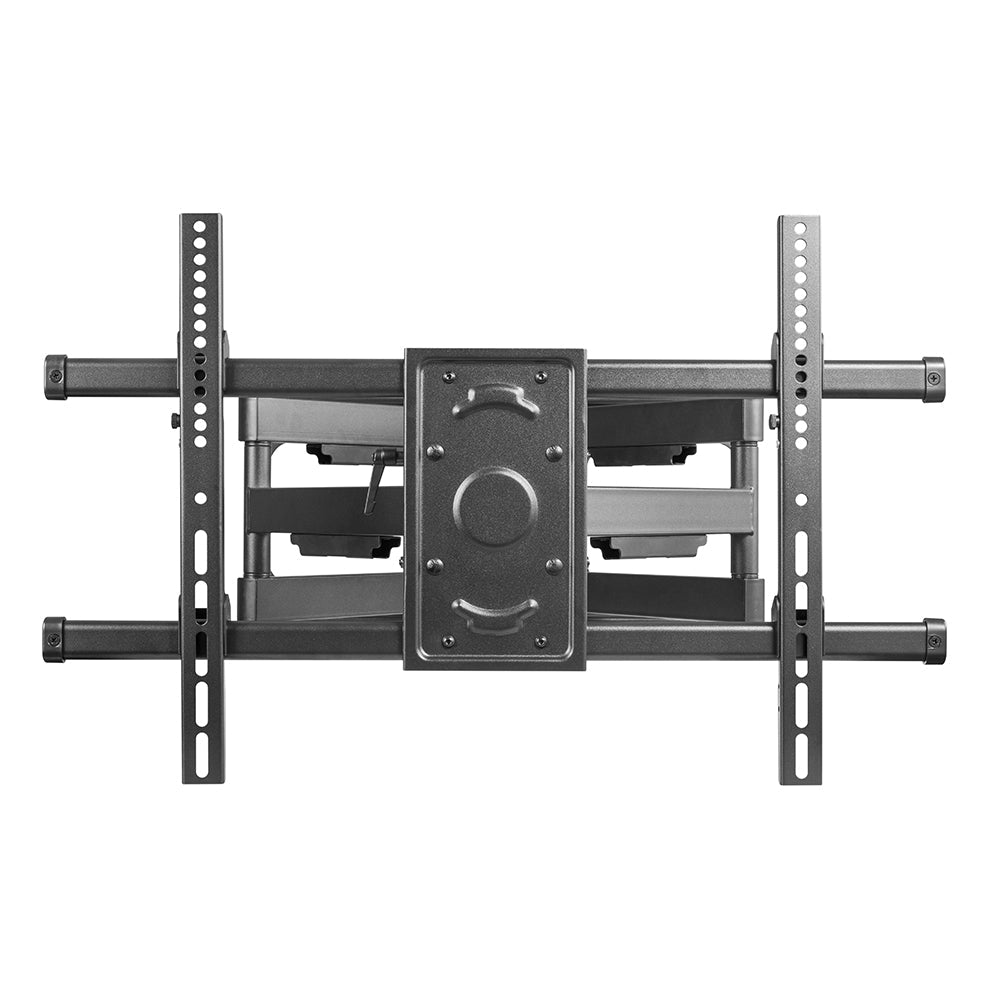

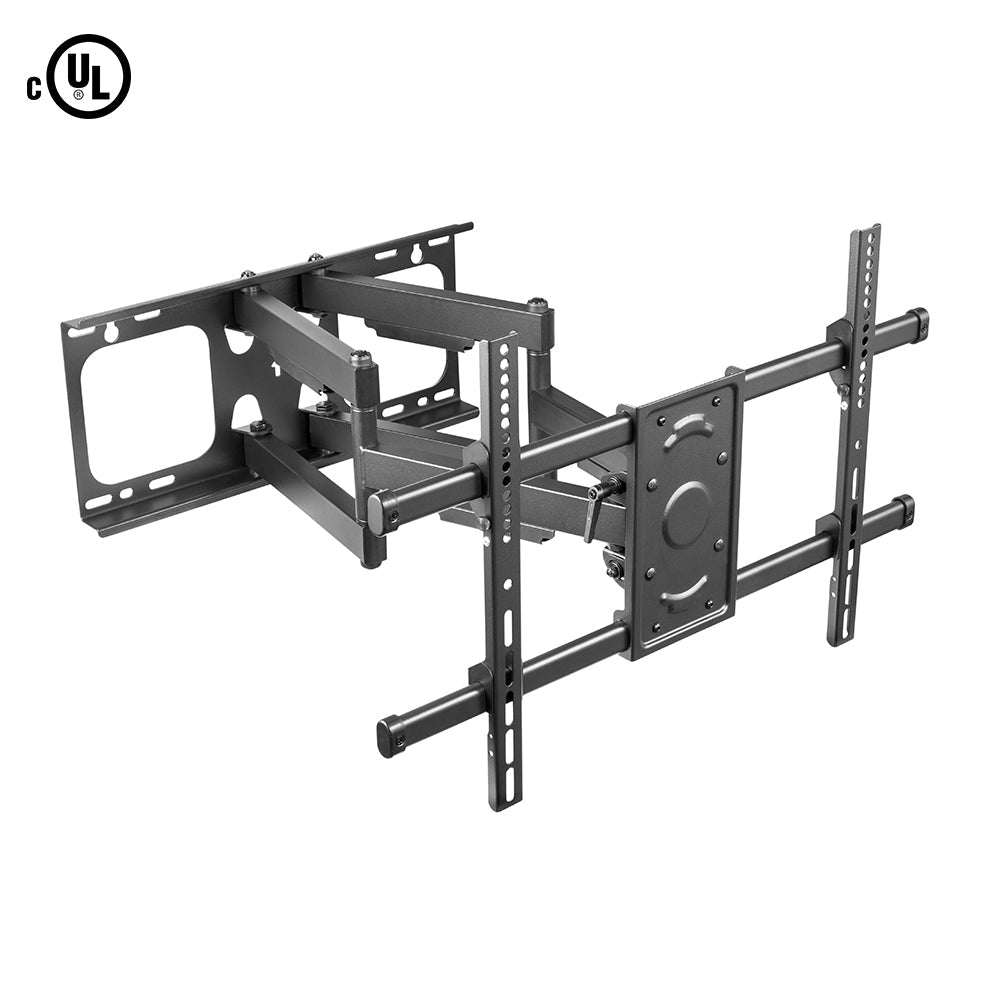

This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 37 inch to 90 inch LCD/LED displays with a maximum VESA hole pattern of 600x400. It offers up to a 5° to -15° tilt, 60° to -60° swivel and screen levelling of 3° ~ -3°. It can be used in both residential and commercial environments.
Physical Characteristics
|
|
---|---|
Mounting Style | Tilting & Swivel Wall Mount |
Color | Black |
Material | Steel, Plastic |
Mounting Pattern | VESA 200x200, 300x300, 400x200, 400x400, 600x400 |
Screen Size | 37 - 90 inches [93.9 - 228.6cm] |
Weight Capacity | 143 lbs [65kg] |

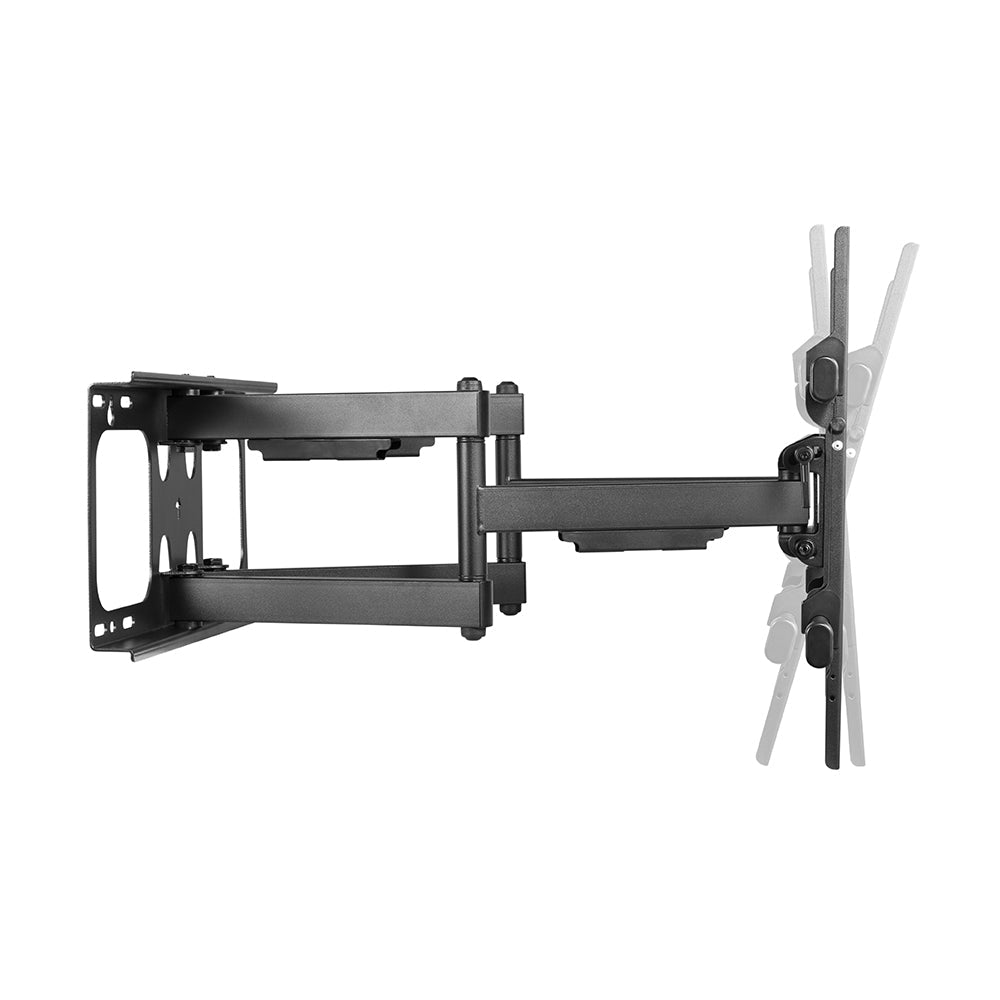

Tilt | +5° ~ -15° |
Swivel | +60° ~ -60° |

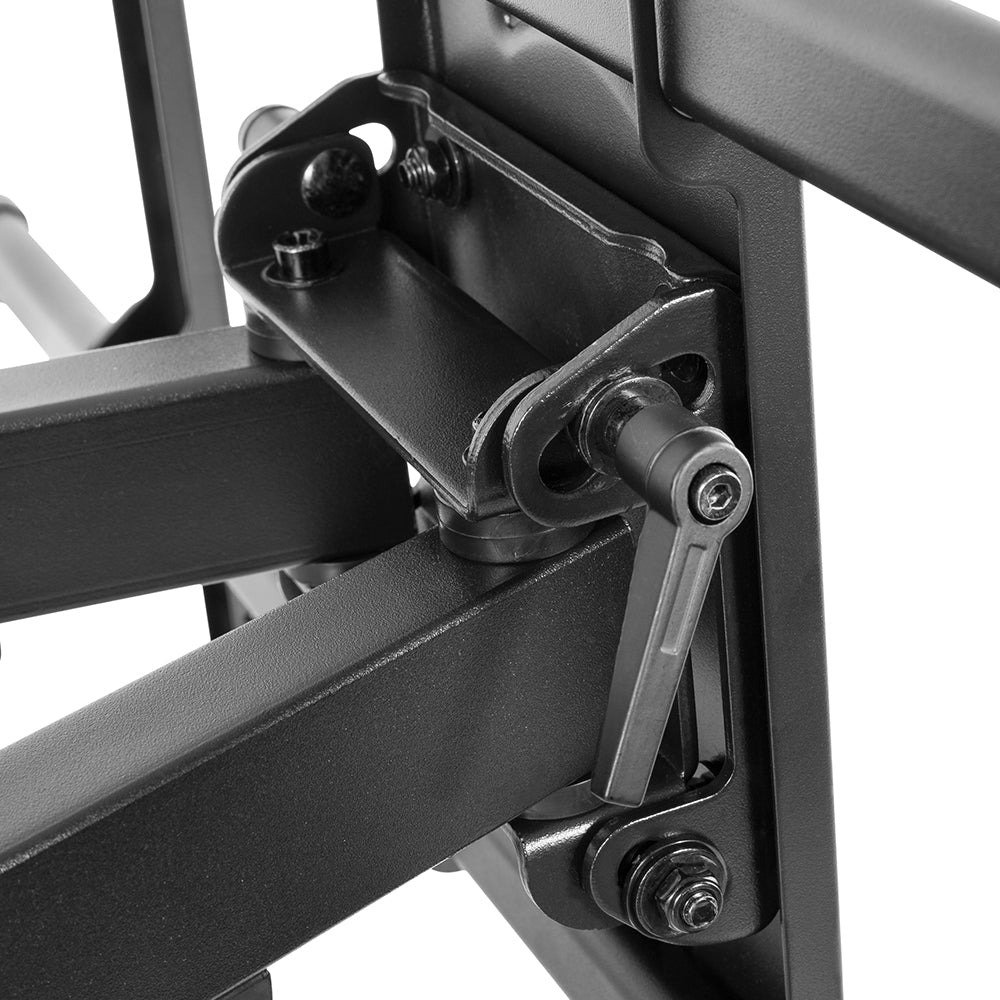

Level Adjustment | +3° ~ -3° |

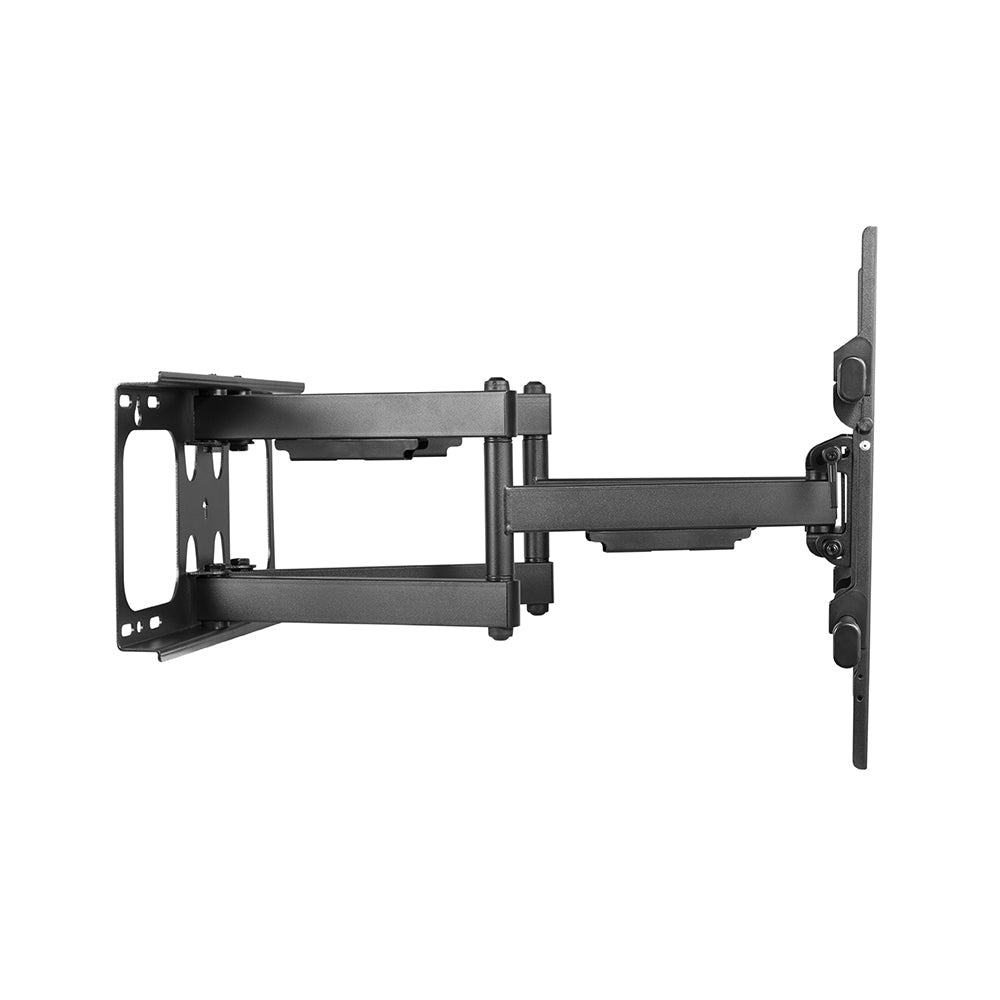

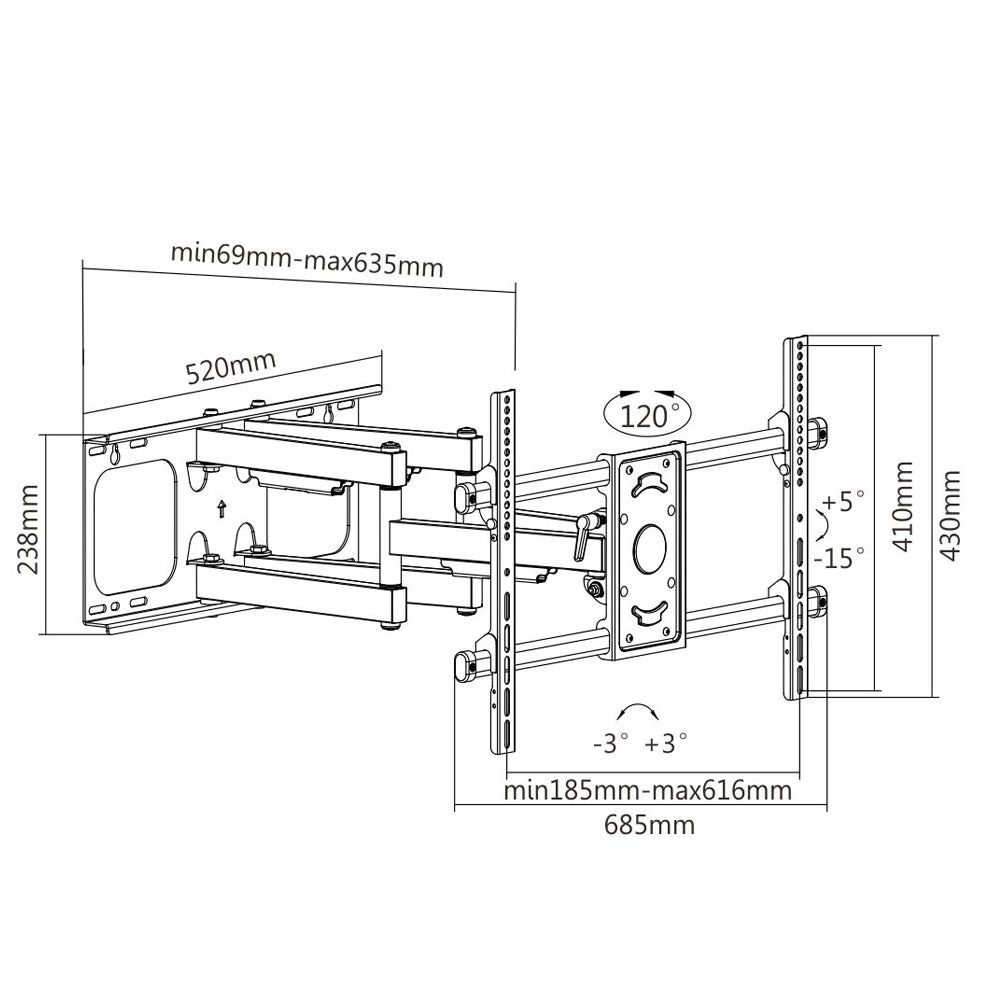

Profile | 69 to 635mm [2.7 - 25 inches] |
Bubble Level | Yes |

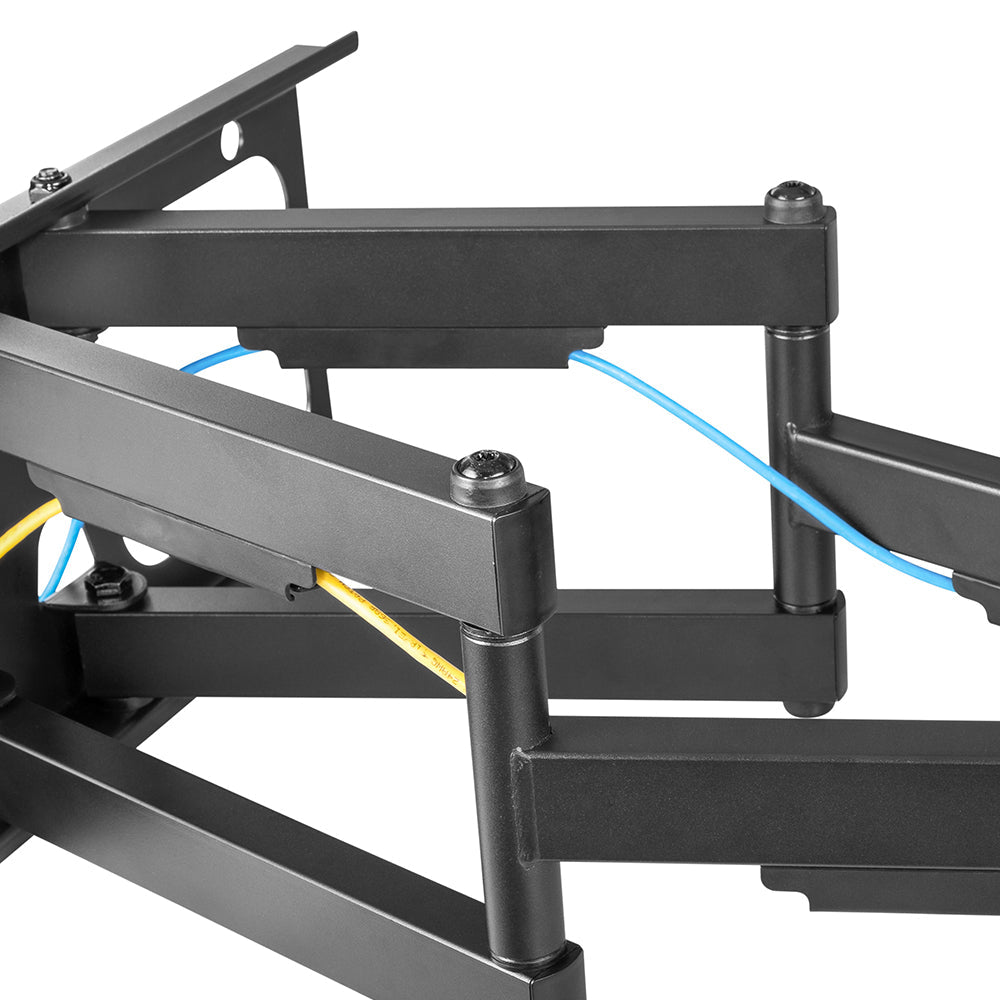

Cable Management | Yes |
Freely Tilting | Yes |
Curved TV Available | Yes |
Anti-theft | No |
Motorized | No |
Installation | Solid Wall or Double Stud |
Approvals
|
|
c(UL) | Yes |
RoHS | Yes |
Reach | Yes |
Packaging Information
|
|
Package Quantity | 1 |
Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 4 - D6 Washers |
Package Weight | 23.3 lbs [10.6kg] |
