Overview

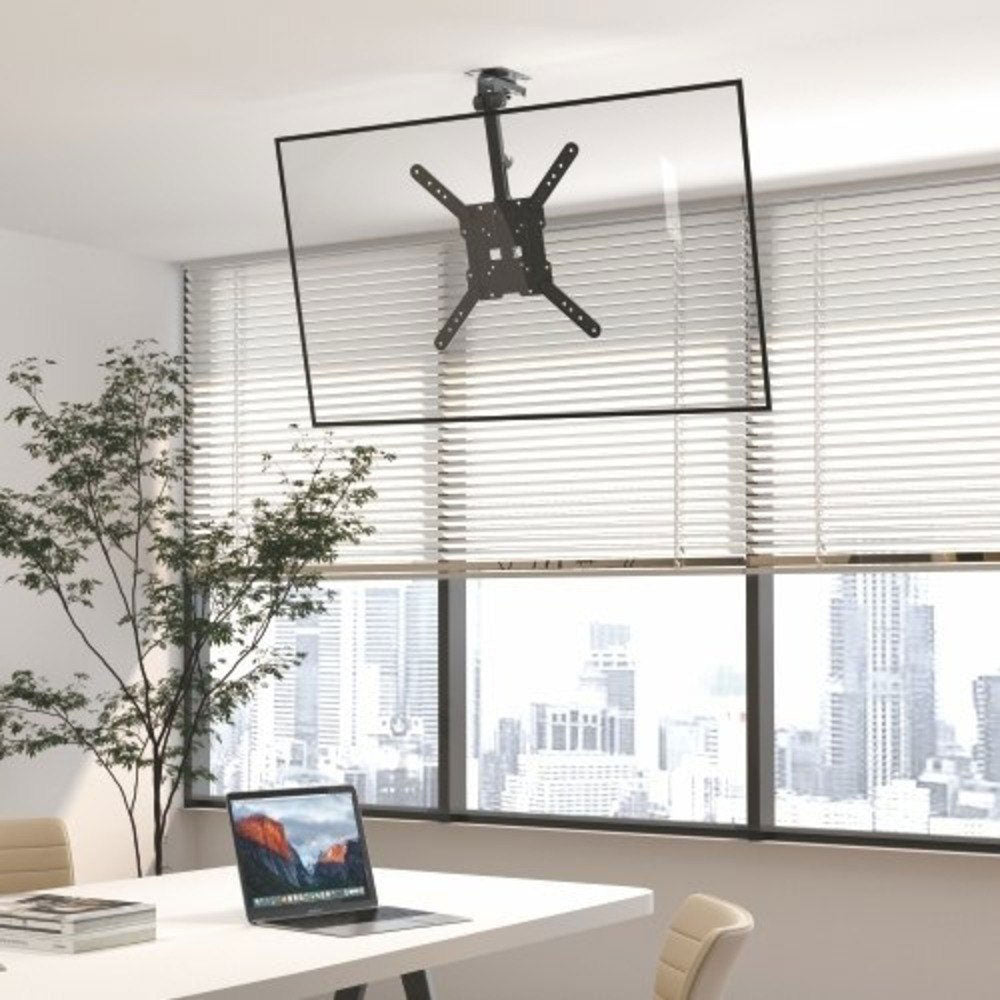

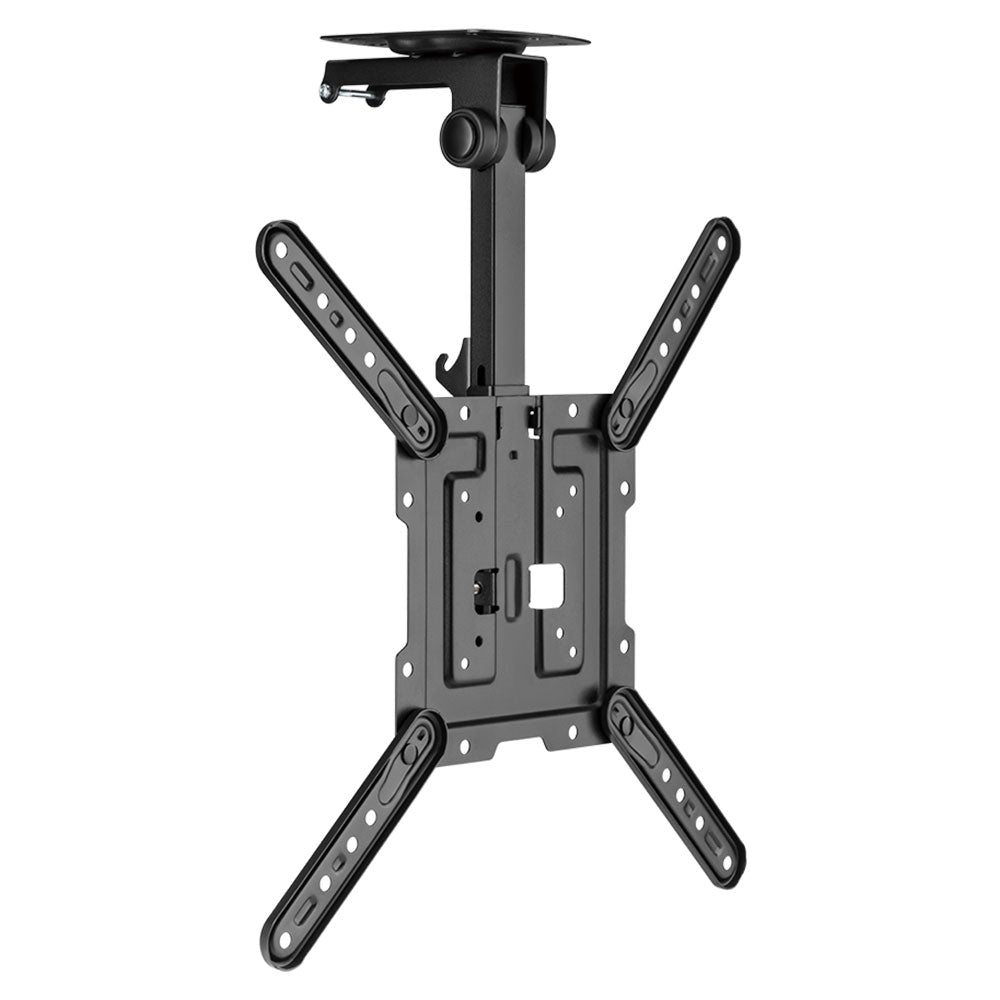

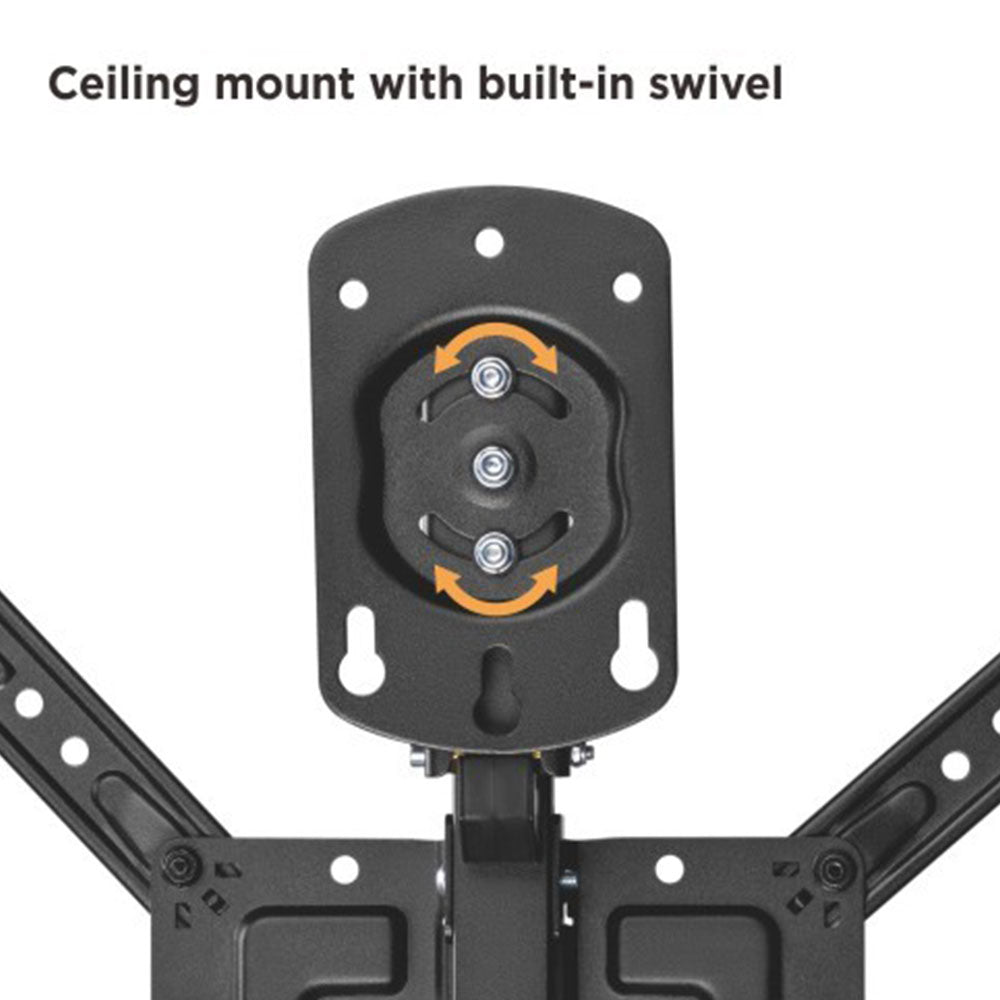

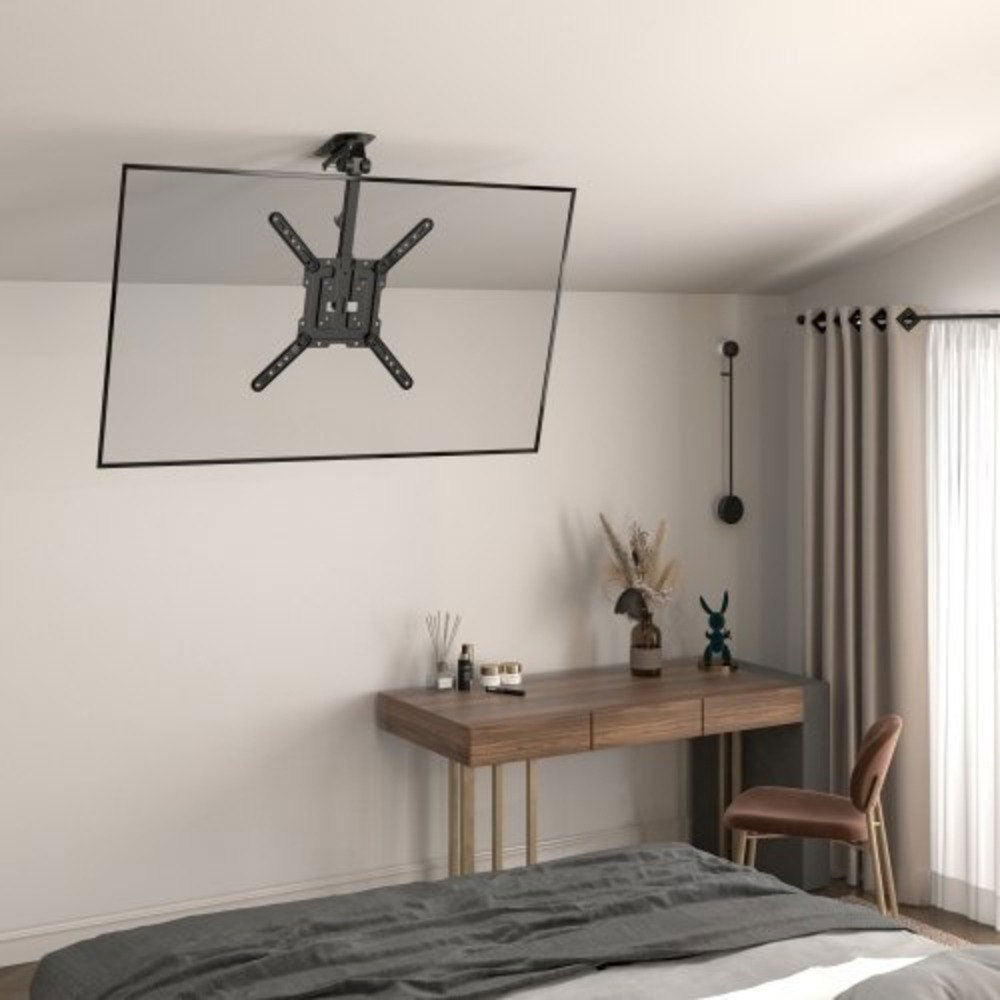

This folding ceiling mount bracket is designed to hold 23 inch to 55 inch flat screen displays with a maximum VESA hole pattern of 400x400. It can be mounted on a flat or beveled ceiling. It features Lightweight aluminum and steel construction with ample adjustability that includes a 360° swivel. It is typically used in retail and commercial settings.
 |

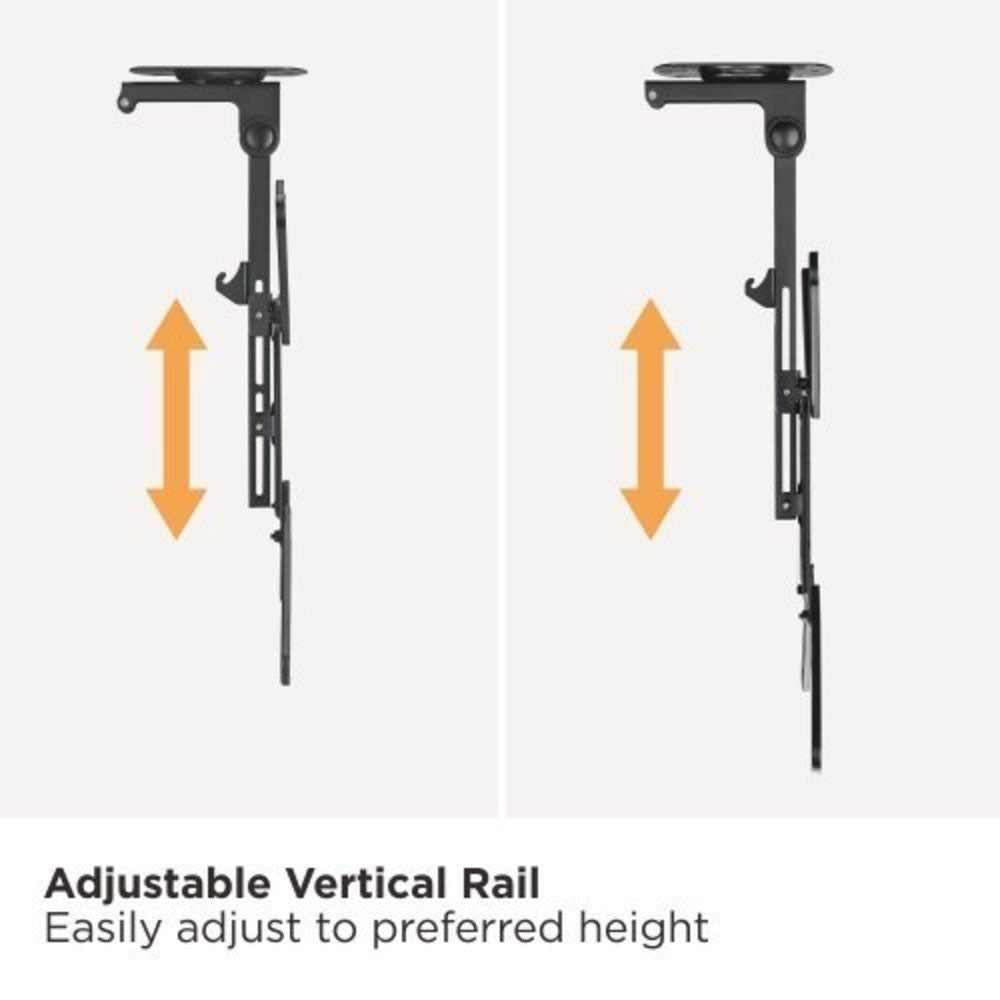

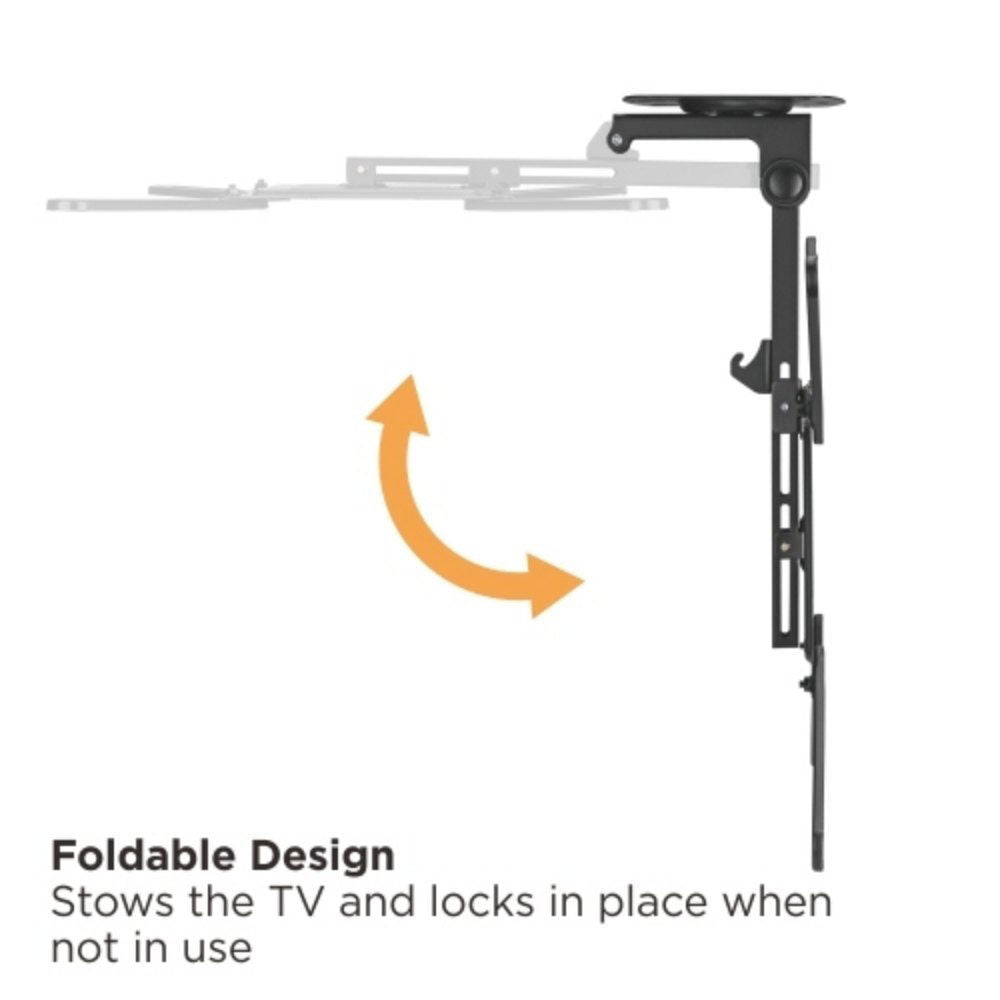

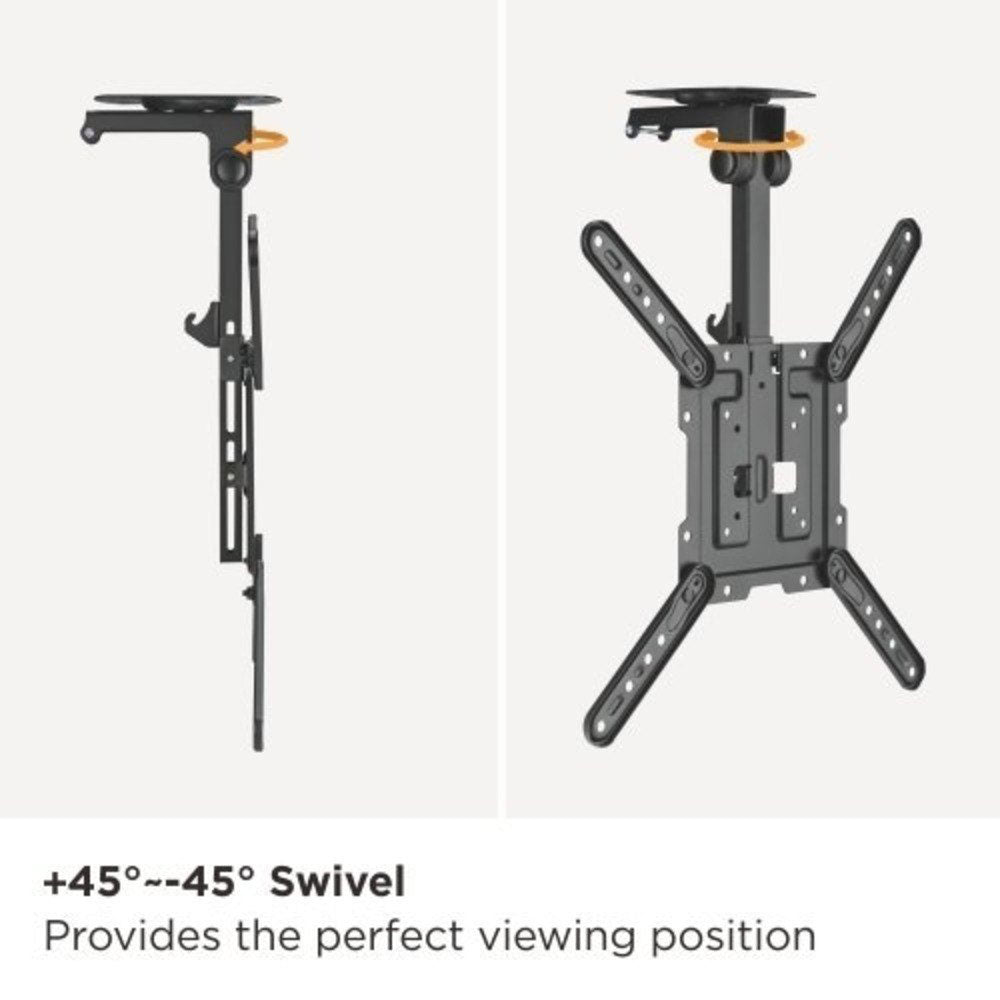

Space-Saving Folding MechanismThe mount features a fold-up locking design, allowing the TV and arm to tuck flush against the ceiling or cabinet when not in use. This is ideal for maximizing floor space in work areas, kitchens, or compact rooms. Wide Swivel RangeThe unit provides a ±45° swivel range, allowing users to pivot the screen to find the optimal viewing angle from multiple locations in a room. Height-Adjustable Vertical RailUsers can easily customize the vertical positioning of the screen, ensuring the TV sits at the perfect eye level regardless of ceiling height or cabinet depth.
|
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Ceiling Mount |
| Color | Black |
| Material | Steel |
| Surface Finish | Powder Coating |
| Pipe Size | 30x20x1.5mm (1.2"x0.79"x0.059") Square Steel Tube |

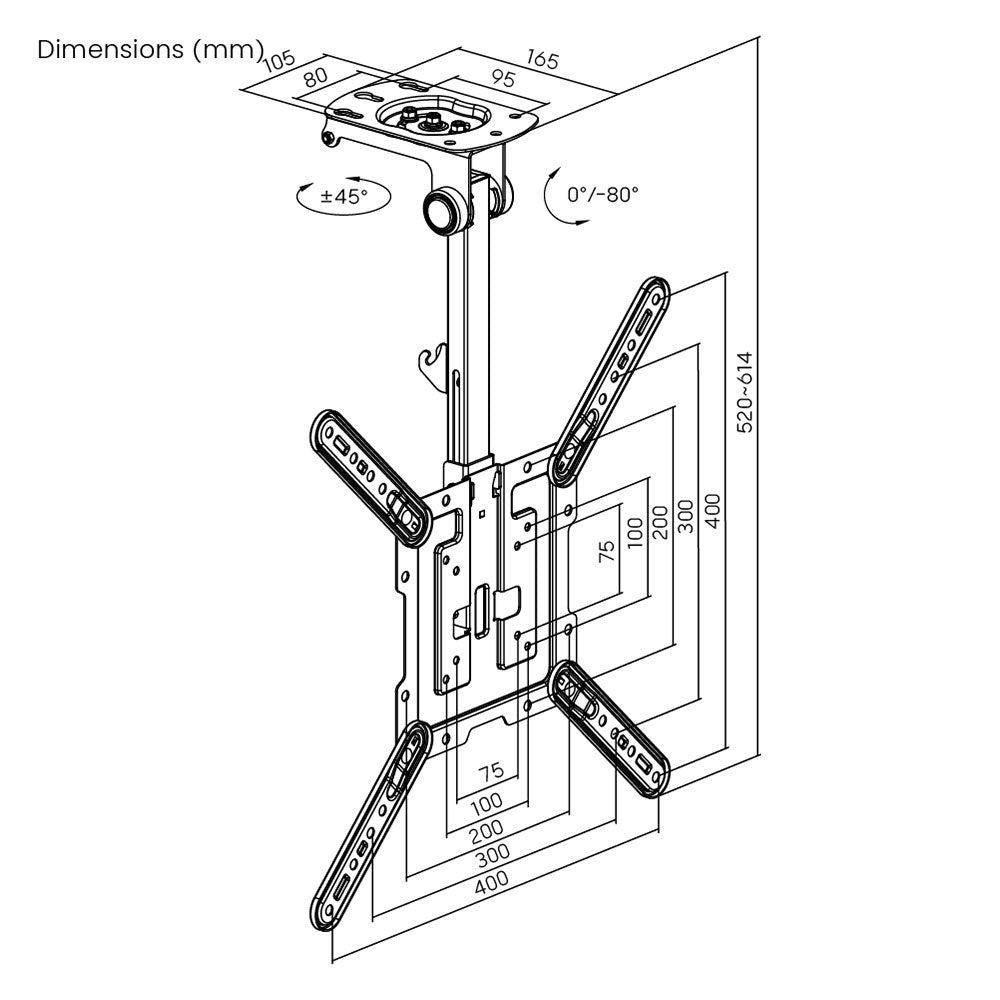

| Dimensions | 614x435x165mm (24.2"x17.1"x6.5") |
| Mounting Pattern | VESA 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 400x400 |
| Screen Size | 23"-55" |
| Fit Curved TV | Yes |
| Weight Capacity | 20kg (44lbs) |
| Strength Tested | 3 Times Approved |
| Tilt | 0/-80° |
| Swivel | +45°~-45° |
| TV Height Range | min520~max614mm (min20.5"~max24.2") |
| Profile | 83mm (3.3") |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M6x12 Screws 4 - M6 Nuts 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x16 Screws 4 - M8x35 Screws 4 - D8 Washers 4 - Φ15x8x5 Washers 4 - Φ15x8x15 Washers 4 - ST6.3x55 Screws 4 - Concrete Anchors 4 - D6 Washers |
| Product Weight | 5.24lbs |
| Warranty Information | |
| Warranty |
5 Year Warranty |
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on this products to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
