Overview

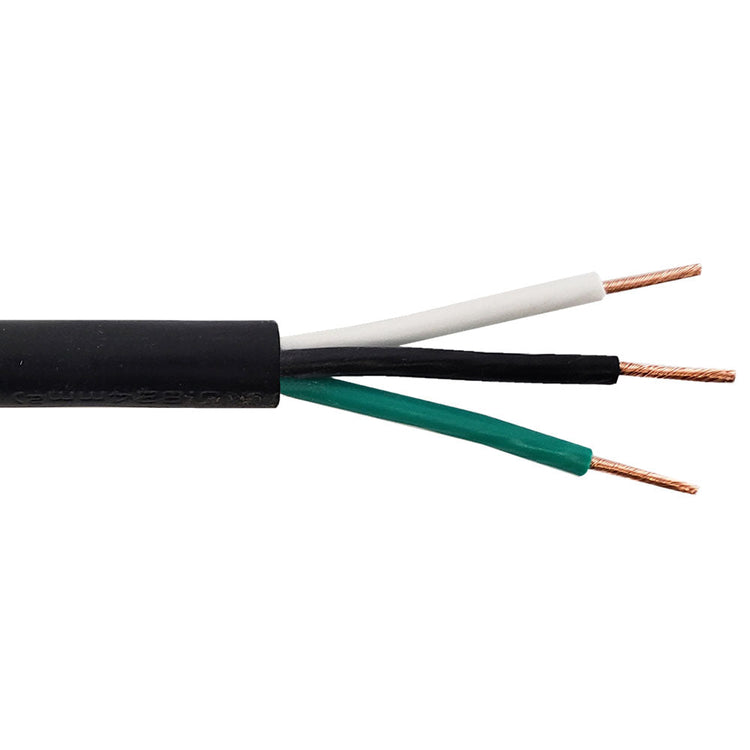

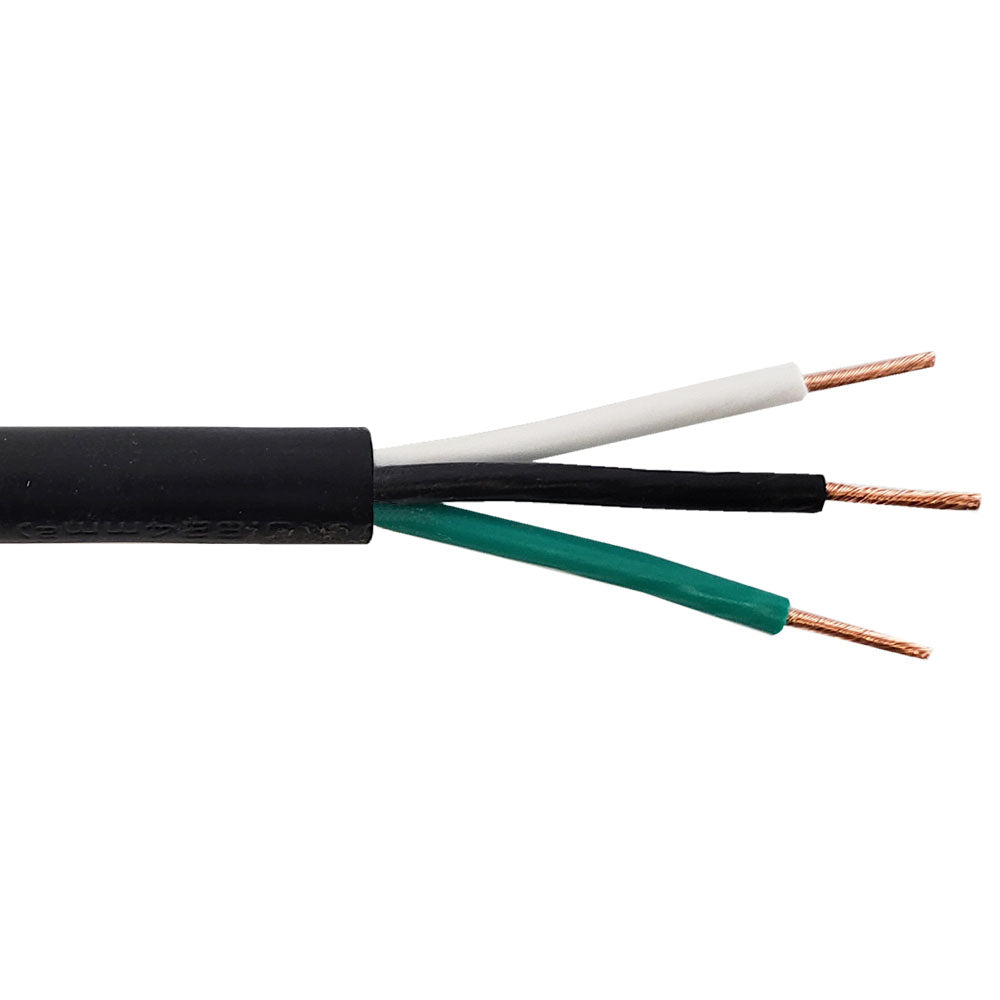

This bulk power cable consists of three 18 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.
Note: We offer a maximum of 300m spool size.
 |
Bare Copper Conductors
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | Black, White, Green |
| Wire Gauge | 18AWG |
| Construction | 41/ɸ0.16±0.008 |
| Number of Conductors | 3 |
| Conductor Material | Bare Copper |
| Conductor Diameter | 1.18 |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Diameter | 2.70 ± 0.10 |
| Insulation Thickness | 0.76 |
| Jacket | SJT |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Jacket Overall Diameter | 7.80 ± 0.15 |
| Minimum Average Thickness | 1.00mm |
| Cable Diameter | 5.80 S=52REF. |
| Extrusion : Extrude | tmax >= 0.81mm tmin >= 0.71mm |
| Extrusion : Talcum Powder Extrude |
tmax <= 1.27mm tmin >= 1.12mm |
| Temperature Rating | 105℃ |
| Performance | |
| Rating Voltage | 300V |
| Conductor Resistance | 23.2ohm/Km at 20℃ Max |
| Unaged Tensile Strength (Mpa) | Insulation :>=10.29 Jacket :>=10.29 |
| After Aging Tensile Strength (Mpa) |
Insulation :>=8.75 Jacket :>=8.75 |
| Unaged Elongation Rate (%) | Insulation :>=100 Jacket :>=100 |
| After Aging Elongation Rate 7d 136℃ |
Insulation :min65 Jacket :min45 |
| Cold Bend Test | -20±2℃ x 4hr No Crack |
| Heat Shock Test | 121±1℃ x 1hr No Crack |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
| Max. Spool Size | 300m |
