Overview

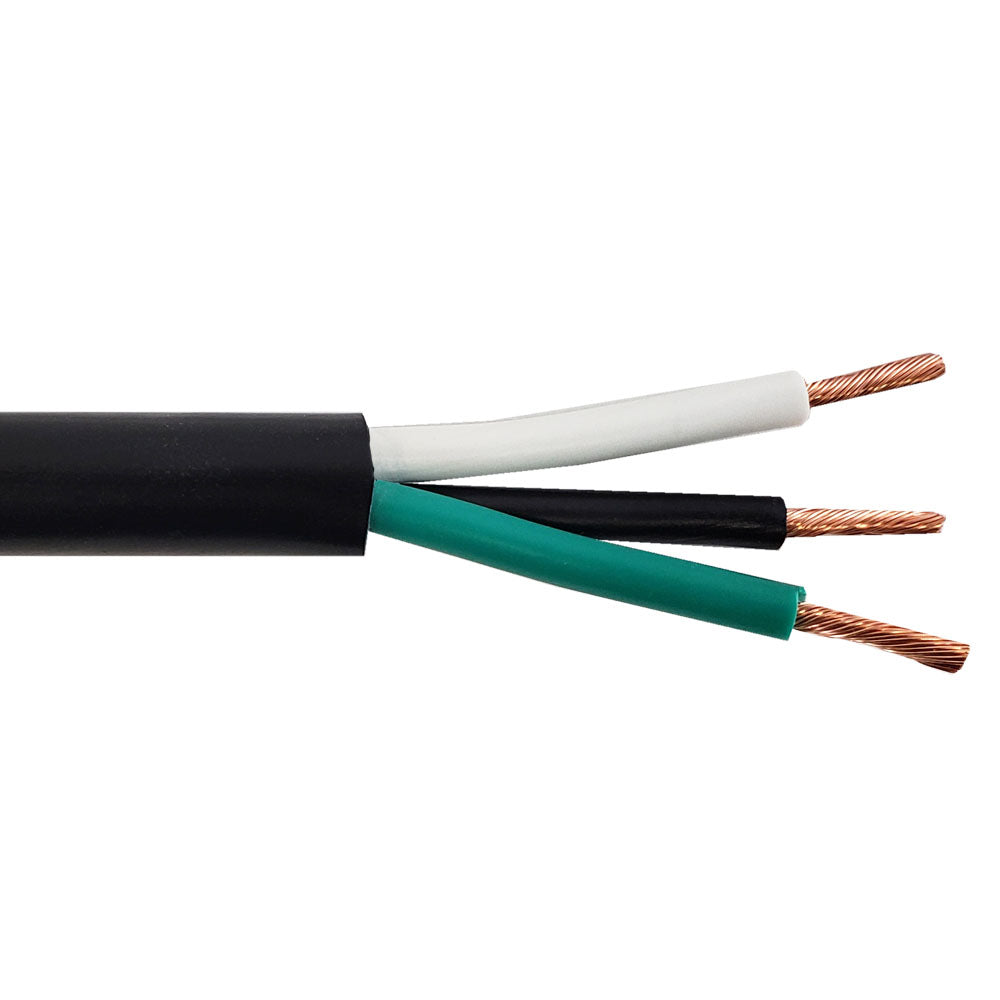

This bulk power cable consists of three 14 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.
Note: We offer a maximum of 150m spool size.
 |
Bare Copper Conductors
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | Black, White, Green |
| Wire Gauge | 14AWG |
| Construction | 41/ɸ0.254±0.008 |
| Number of Conductors | 3 |
| Conductor Material | Bare Copper |
| Conductor Diameter | 1.87 |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Diameter | 3.40 ± 0.10 |
| Insulation Thickness | 0.76 |
| Jacket | SJT |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Jacket Overall Diameter | 9.3 ± 0.15 |
| Minimum Average Thickness | 1.00mm |
| Cable Diameter | 7.30 S=80±5mm |
| Extrusion : Extrude | tmax >= 0.81mm tmin >= 0.71mm |
| Extrusion : Talcum Powder Extrude |
tmax <= 1.10mm tmin >= 0.90mm |
| Temperature Rating | 105℃ |
| Performance | |
| Rating Voltage | 300V |
| Conductor Resistance | 8.96ohm/Km at 20℃ Max |
| Unaged Tensile Strength (Mpa) | Insulation :>=10.29 Jacket :>=10.29 |
| After Aging Tensile Strength (Mpa) |
Insulation :>=7.2 Jacket :>=7.2 |
| Unaged Elongation Rate (%) | Insulation :>=100 Jacket :>=100 |
| After Aging Elongation Rate 10d 100℃ |
Insulation :min65 Jacket :min65 |
| Cold Bend Test | -20±2℃ x 4hr No Crack |
| Heat Shock Test | 121±1℃ x 1hr No Crack |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
| Max. Spool Size | 150m |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
