Overview

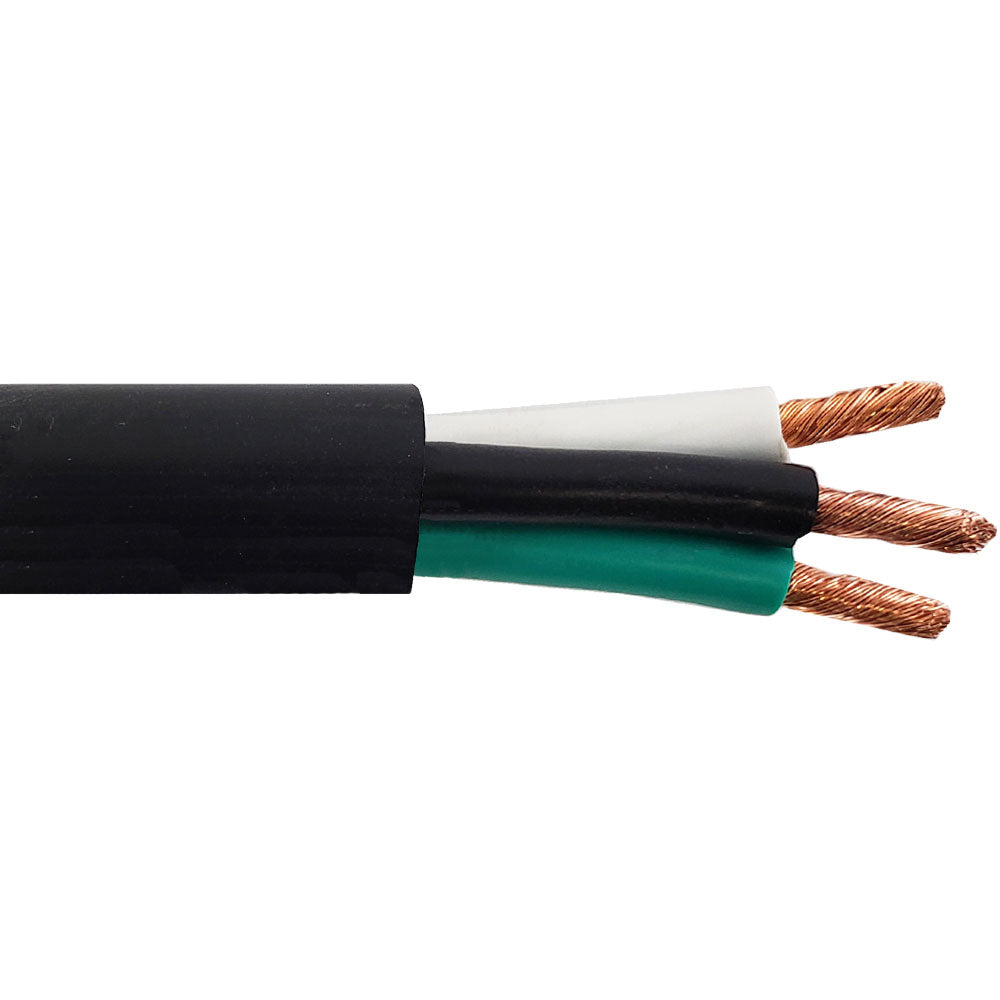

This bulk power cable consists of three 10 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.
 |
Annealed Bare Copper ConductorsThis cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The Quality and Convenience You NeedThis cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | Black, White, Green |
| Wire Gauge | 10AWG |
| Construction | 105/ɸ0.254±0.005 |
| Number of Conductors | 3 |
| Conductor Material | Annealed Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Diameter | 5.4 ± 0.10 |
| Jacket | SJT |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 |
| Jacket Overall Diameter | 14.6 ± 0.2 |
| Minimum Average Thickness | 1.52mm |
| Core Assembly Twist | 3-Core |
| Core Assembly Filler | Cotton 20000D |
| Temperature Rating | 105℃ |
| Performance | |
| Rating Voltage | 300V |
| Insulation Resistance | ≥ 0.76MΩ/Km 15.0℃ Min |
| Dielectric Strength | AC 2.0KV/1 min No Crack |
| Spark Test | 6KV/0.15 Sec |
| Insulation Unaged Tensile Strength / Elongation | 1500 lbs/in2 min / 100% Min |
| Insulation Aged Tensile Strength / Elongation | Min 85%(136±1℃x168hrs) / Min 65%(136±1℃x168hrs) |
| Jacket Unaged Tensile Strength / Elongation | 1500 lbs/in2 min / 100% Min |
| Jacket Aged Tensile Strength / Elongation | Min 85%(136±1℃x168hrs) / Min 45%(136±1℃x168hrs) |
| Deformation Test | 121±1℃m X 1hr ≤ 50% |
| Cold Bend Test | -20℃ x 4hr No Crack |
| Heat Shock Test | 121±1℃ x 1hr No Crack |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
