FASTCONNECT SC SM APC Green Connector

Fiber Optic ConnectorsSKU: FO-FAST-SC-SMAU-6

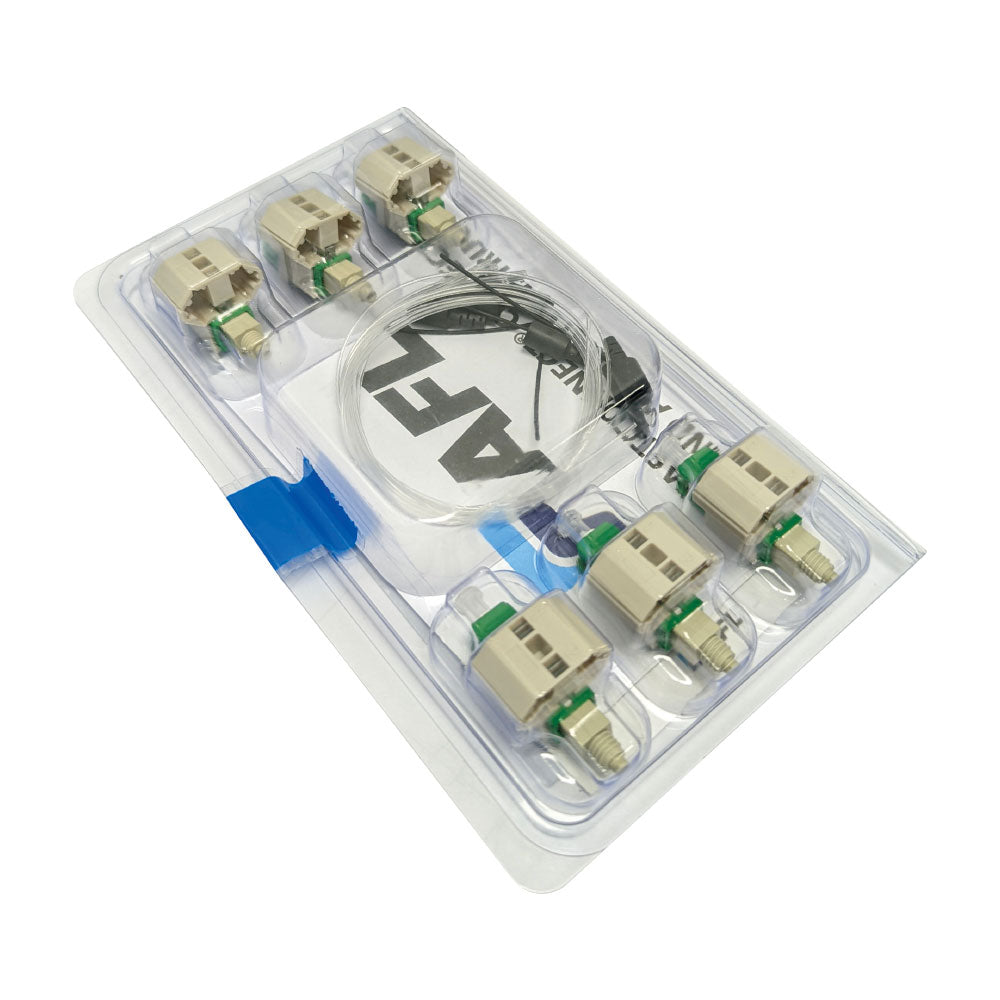

Packging: 6/Pack
Price:
Sale price$107.30 CAD
Stock:
In stock

Description

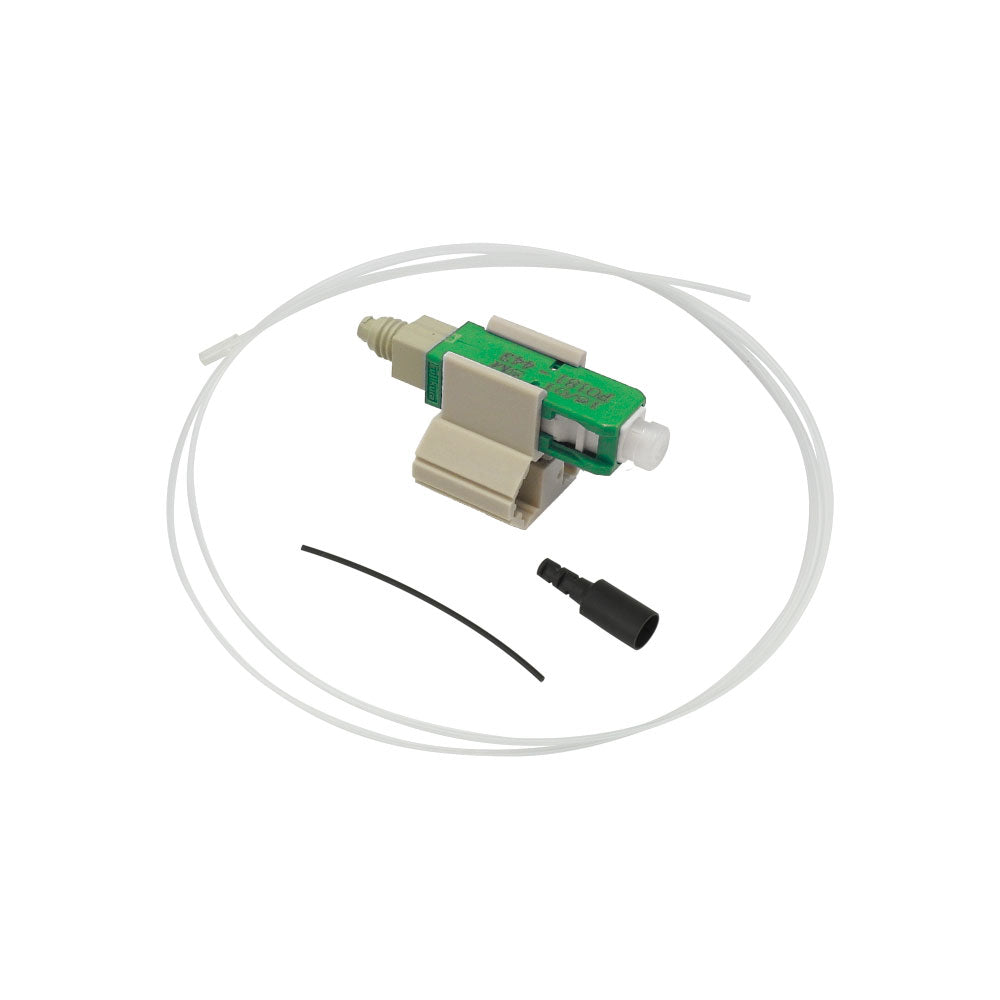

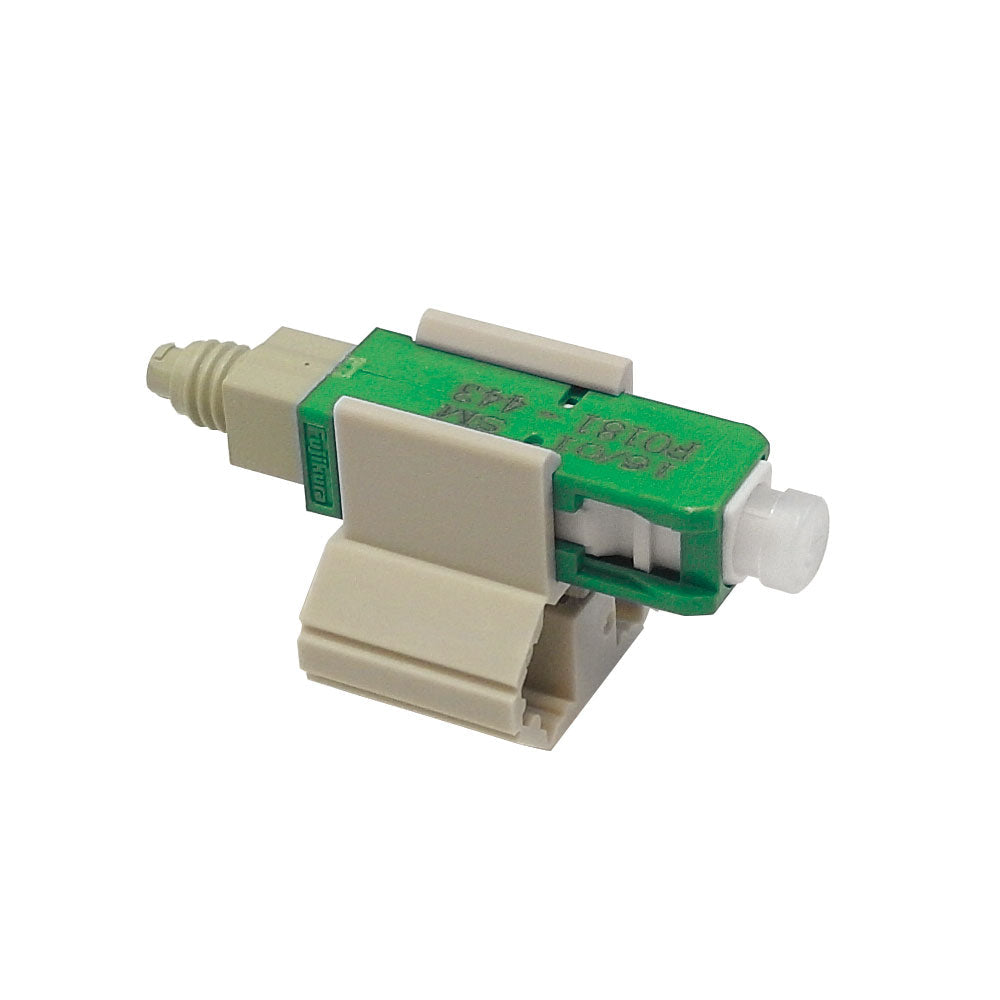

These fiber optic FASTCONNECT field-termination SC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination on singlemode optical fibers. FAST Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 3 mm cordage (2mm and 3mm boots sold separately). The connectors are color coded per industry standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.

Features

  • No Epoxy, No Polish
  • Low Insertion Loss
  • Fiber Can Be Reinserted up to Three Times
  • 3.0 mm, 2.0 mm and 900 µm Cordage Compatibility
  • VFI Accessory to Confirm Proper Installation

Applications

  • Premise/Enterprise Networks
  • LAN/WAN Connections
  • Patch Panels
  • Equipment Termination
  • FTTx Applications
  • Field Repair/Replacement
  • Equipment Test Leads
Physical Characteristics
Color Green
Cable Diameter 900 µm
Fiber Size 9/125 micron
Fiber Type Singlemode
Operating Temperature -40℃ to +75℃
Fiber Classification APC
Connector
Connector SC Simplex Male
Performance
Insertion Loss Average: 0.2 dB, Maximum: 0.5 dB
Return Loss Average: -55 dB, Maximum: -45 dB
Package Information
Package Quantity 6 100
Product Weight 0.19 lbs 2.51 lbs

Spec Sheets

Download attachment
