Description

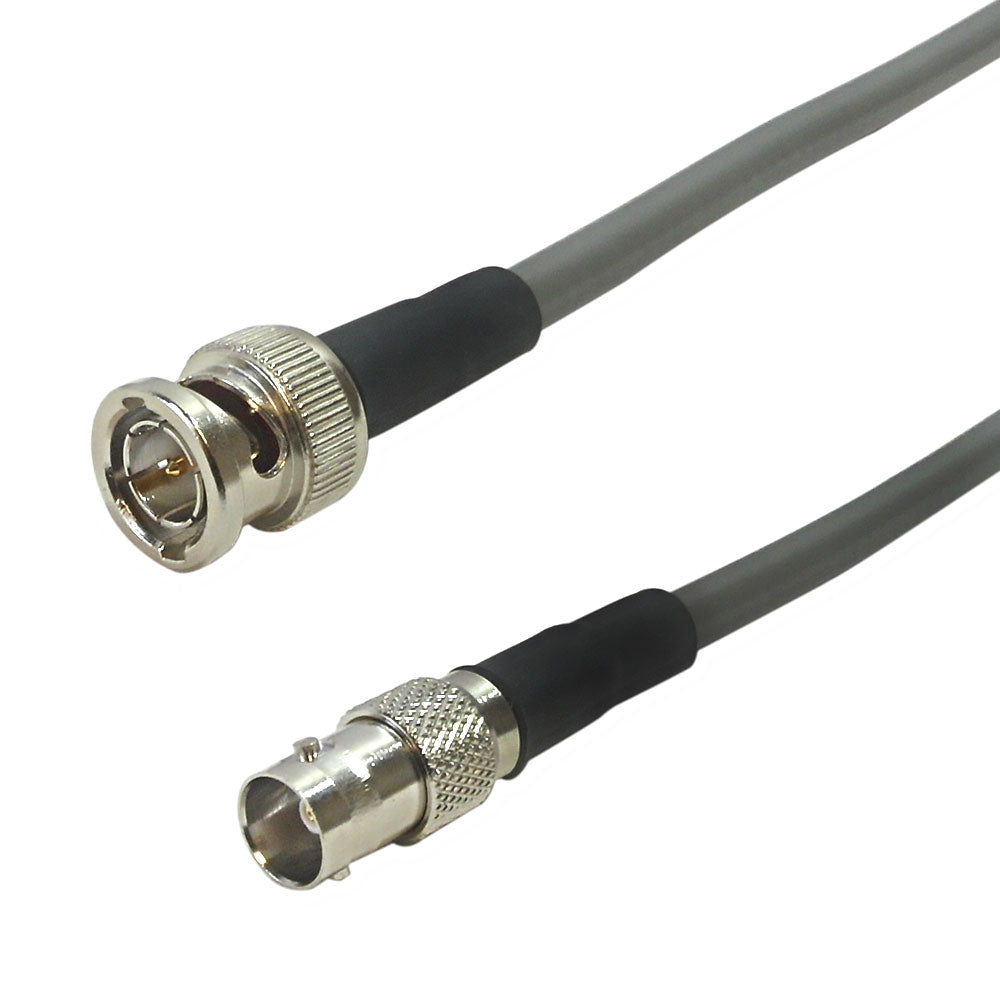

This DS3 (T3) 734A simplex cable has a BNC male on one end, and a BNC female on the other end. This 75 ohm telephony coaxial cable is typically used for the interconnection of transmission equipment.
- Superior structural return loss and attenuation performance
- Silver plated copper cable for better attenuation performance
- Heavy duty connectors allow for optimum durability and connectivity
Specifications
| Physical Characteristics | |
|---|---|
| Color | Grey |
| Connector Plating | Nickel |
| Cable Type | Belden 734A1 Single Coax 20 AWG Solid |
| Cable Jacket Material | Polyvinyl Chloride (PVC) |
| Operating Temperature | -40C to +75℃ |
| Fire Rating | FT4, UL1666 |
| Connectors | |
| Connector A | BNC Male |
| Connector B | BNC Female |
| Performance | |
| Impedance | 75 ohm |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 150ft | 200ft |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.35lbs | 0.70lbs | 1.07lbs | 01.77lbs | 2.84lbs | 3.91lbs | 5.68lbs | 8.52lbs | 11.36lbs | 17.04lbs | 22.72lbs |
