Description

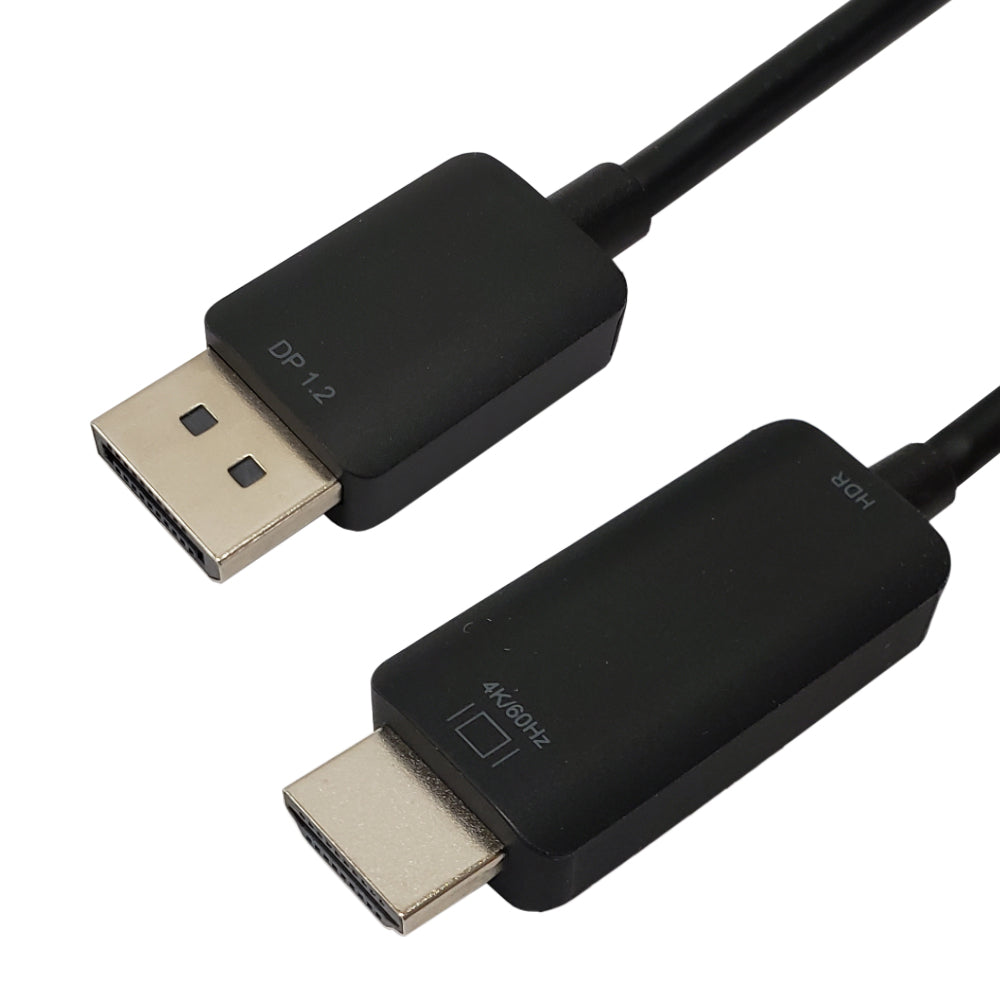

This cable has a DisplayPort male on one end and a HDMI male on the other. It is used to connect a DP source to a HDMI display. It cannot be used to connect a HDMI source to a DisplayPort monitor.
Features:
- Supports DP1.2 Alt mode with 21.6Gbps all lanes, per lane 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
- Supports HDMI max 4K/60Hz, 8 bit with max 18Gbps
- Supports RGB 4:4:4, YCbCr 4:4:4 ,4:2:2 ,4:2:0
- Supports 8bit/10bit/12bit deep color
- Supports HDR
- Supports HDCP2.2 & 1.4
- Supports CEC
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Dimensions | DP connector: 28L x 19.8W x 9.8Hmm HDMI connector: 43.2L x 20.8W x 11Hmm |
| Wire Gauge | 32 AWG |
| Cable Outer Diameter | 4.9mm |
| Operating Temperature & Humidity | 0 ℃ to +45℃ 10% to 90 % RH (no condensation) |
| Storage Temperature & Humidity | 0℃ to +70℃ 10% to 90 % RH (no condensation) |
|
Connectors
|
|
| Connector A | HDMI Male |
| Connector B | DisplayPort Male |
|
Performance
|
|
| DisplayPort |
DP Version 1.2 DP1.2 Alt mode with 21.6Gbps all lanes per lane 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR) |
| HDMI | Up to HDMI max 4K/60Hz, 8bit, 18Gbps Supports RGB 4:4:4, YCbCr 4:4:4 ,4:2:2 ,4:2:0 Supports 8bit/10bit/12bit deep color Supports HDR Supports HDCP2.2&1.4 Supports CEC |
|
Certifications
|
|
| FCC, CE | Approved Cable |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
| Product Weight |
3ft - 0.08lbs 6ft - 0.15lbs |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
