Description
This power supply has an input voltage of 100V to 240V AC with an auto switch function. It also has an output voltage of 12V DC +/- 5%. Its total output current is 20A with a total of 18 channels. It features thermal cut-offs protection - each output has an independent PTC fuse and LED indicator so that other outputs function if one output has an issue. It also has short circuit protection, high voltage protection and over current protection. Typical applications for this power supply include using it with CCTV cameras, IP cameras, PTZ, IR illuminators, DVRs and access control.
Features:

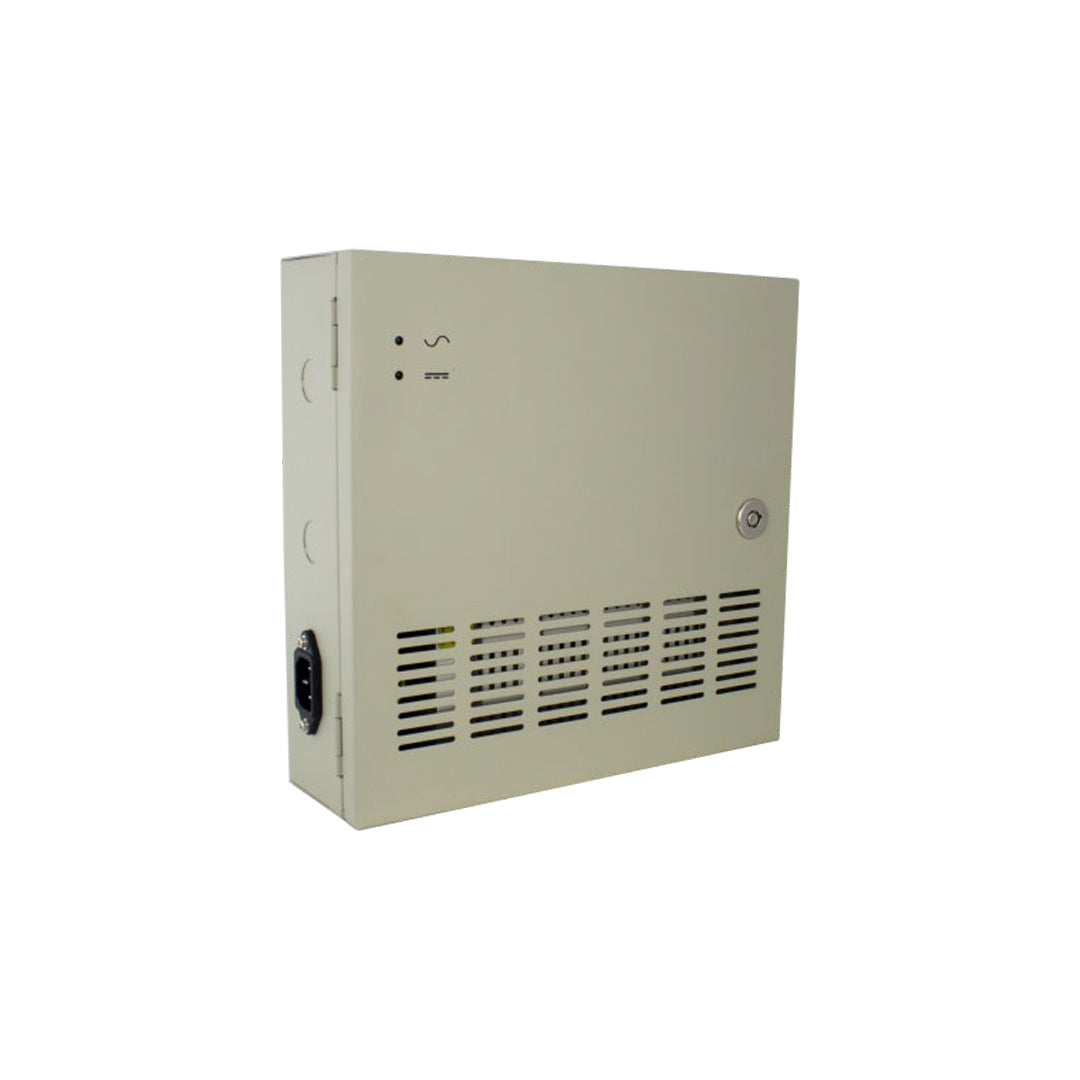

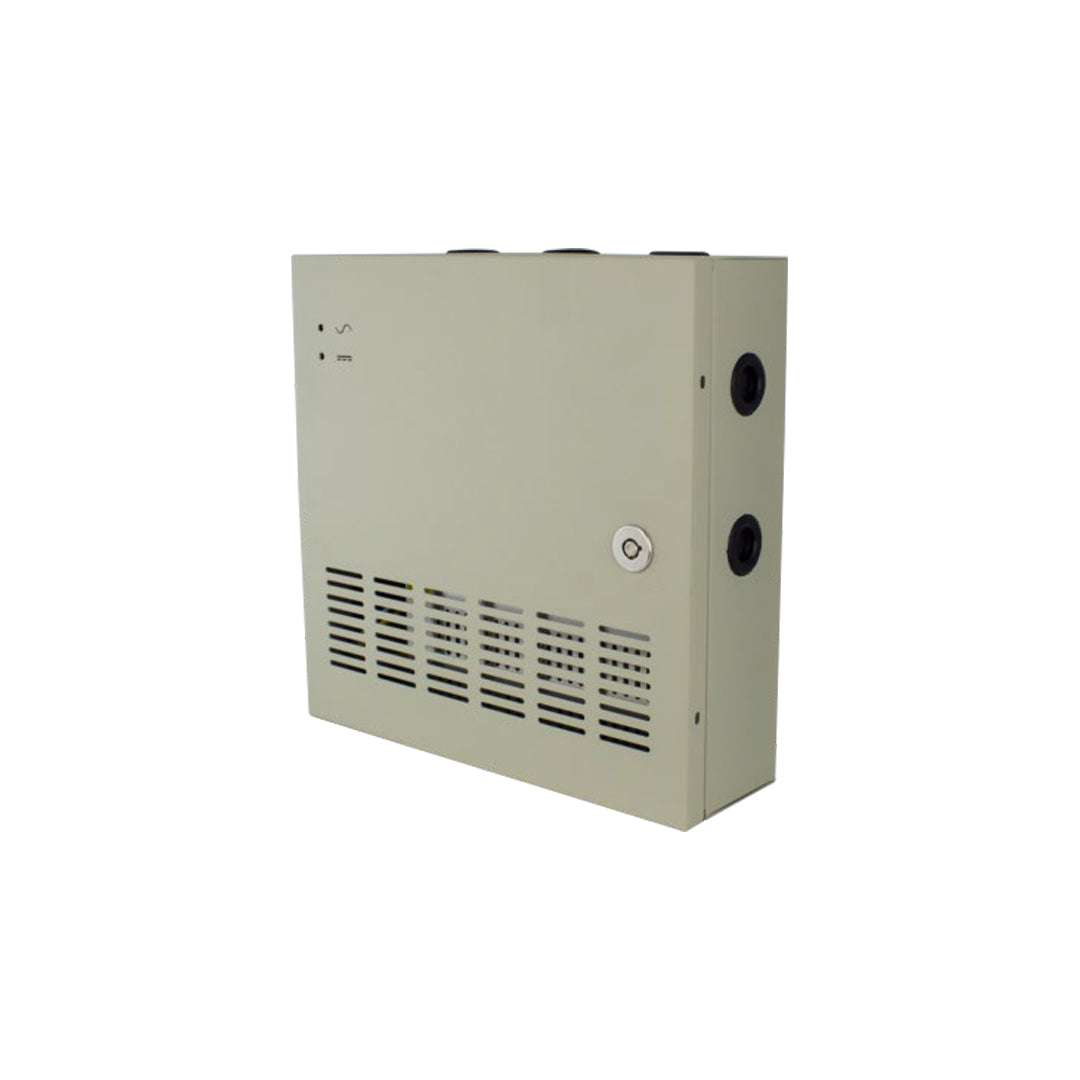

- Wall type baking finished shell, easy installation
- AC Input Range: 110V or 220V, 50/60Hz
- Output voltage adjustable 11-15V
- Short circuit Protection, Over Voltage Protection, Over Current Protection, Over Temp Protection

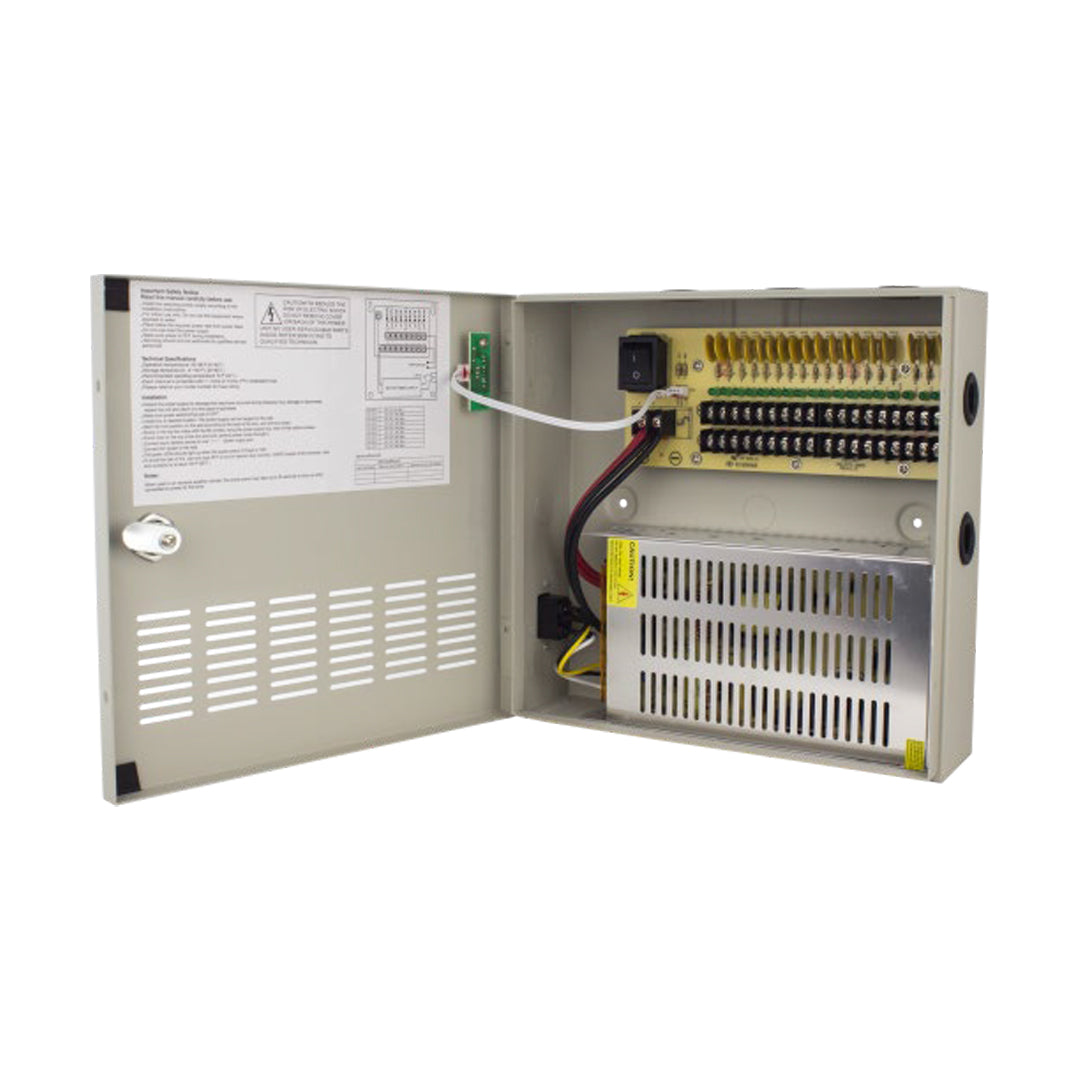

- PTC output protection for each port
- External LED indicator for each output
- 100% full load burn-in test, High efficiency, Long service life, high reliability
|
Performance
|
|
|---|---|
| Input Voltage | 100V to 220V AC 5A 50/60Hz |
| Output Voltage | 12V DC 20A |
| Output Current | 20A |
| Channels | 18 |
| Fuse Type | PTC (Resettable) |
| Fuse Rating | 2500MA |
| Short Circuit Protection | Yes |
| High Voltage Protection | Yes |
| Under/Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Operating Temperature | -10~40℃ |
| Efficiency | ≥82% |
| Load Regulation | A ±5% |
| Life | 10000 hours |
|
Approvals
|
|
| CE | Yes |
| FCC | Yes |
| c(UL)us | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Warranty Information | |
| Warranty | 2 Years |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 6.5 lbs |
