Description

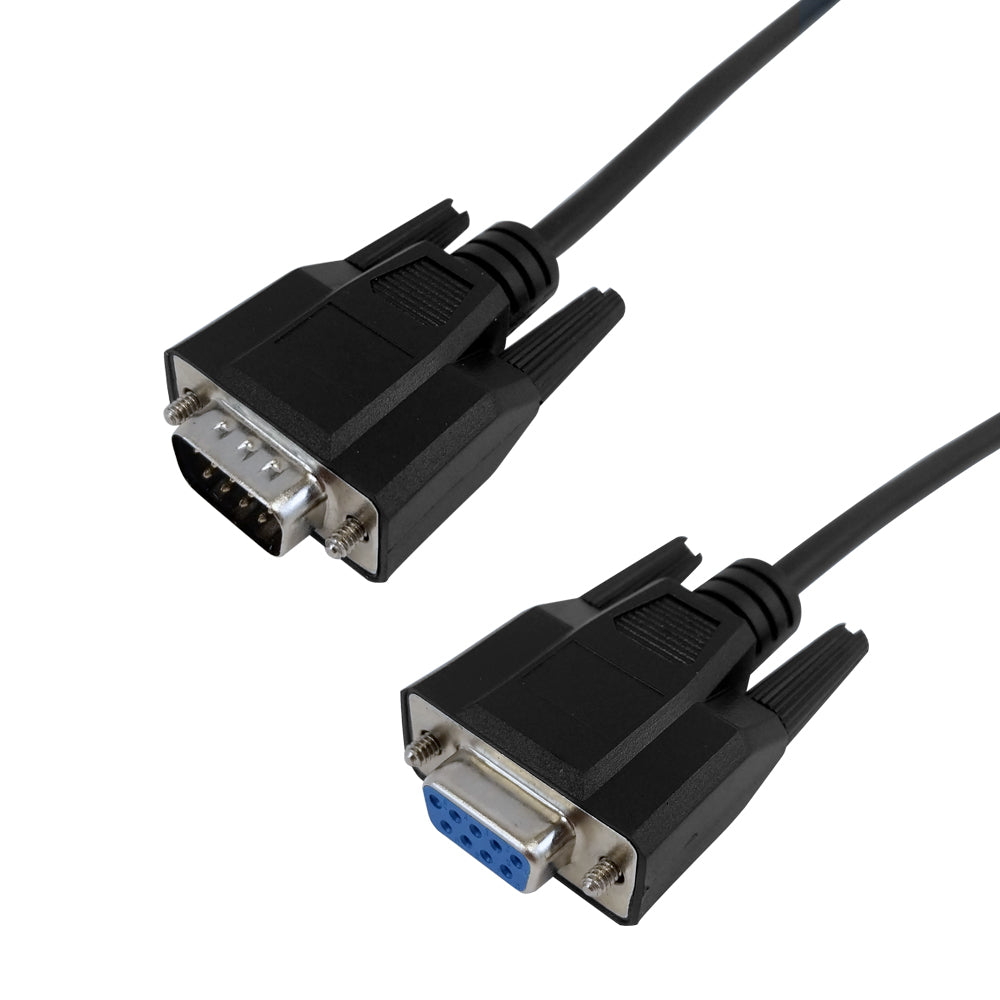

This DB9 null-modem serial cable consists of a DB9 male on one and a DB9 female on the other. It is commonly used in serial RS-232 null-modem applications.
Physical Characteristics | |
|---|---|
| Cable Length | 6 foot [1.8m] |
| Color | Black |
| Wire Gauge | 28AWG Stranded |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 100% Aluminum Mylar Foil Shield |
Connectors | |
| Connector A | DB9 Male |
| Connector B | DB9 Female |
Pin Out | |
| DB9 Male - DB9 Female | |
| 1 + 6 - 4 | |
| 2 - 3 | |
| 3 - 2 | |
| 4 - 1 + 6 | |
| 5 - 5 | |
| 7 - 8 | |
| 8 - 7 | |
| Shell - Shell | |
Environmental | |
| RoHS | Yes |
Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
