Description
This null-modem serial cable consists of a DB9 female on one and a DB25 female on the other. It is commonly used in serial RS-232 null-modem applications.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Wire Gauge | 28AWG Stranded |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 100% Aluminum Mylar Foil Shield |
| Connectors | |
| Connector A | DB9 Female |
| Connector B | DB25 Female |
| Pin Out | |
| DB9 Female - DB25 Female | |
| 1 - 4 + 5 | |
| 2 - 2 | |
| 3 - 3 | |
| 4 - 6 | |
| 5 - 7 | |
| 6 - 20 | |
| 7 + 8 - 8 | |
| 9 - 22 | |
| Shell - Shell | |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.35 lbs [0.1kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| SR-211-06BK | 6ft / Black | 0.21 lb |

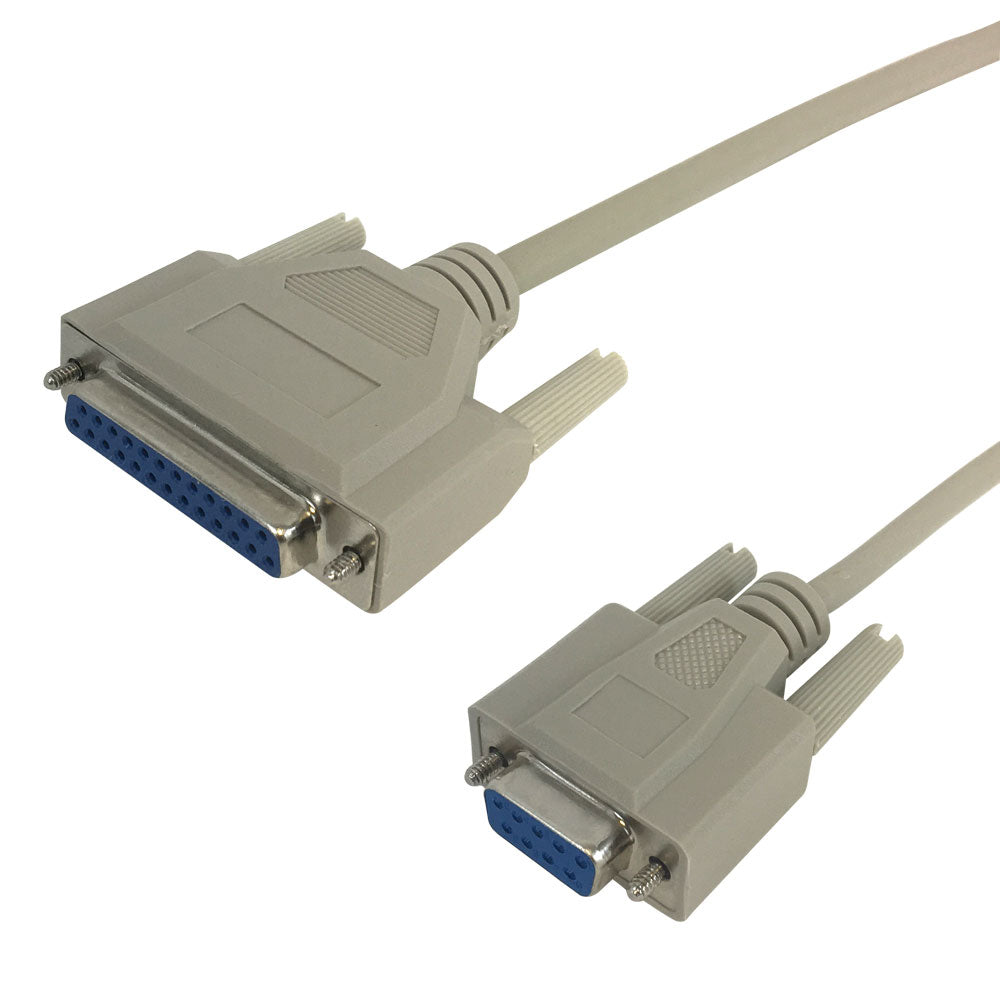

| SR-211-10 | 10ft / Beige | 0.33 lb |

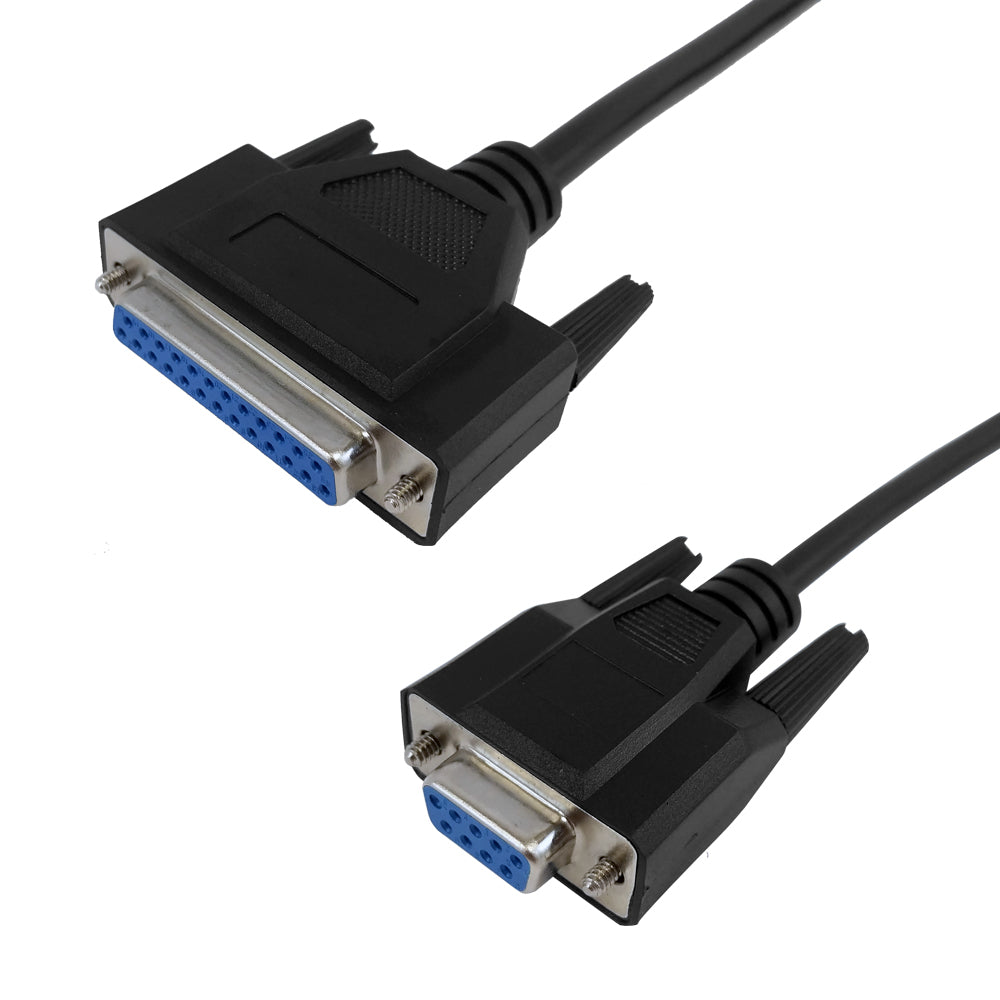

| SR-211-10BK | 10ft / Black | 0.33 lb |
