Description
This DB9 serial cable consists of a DB9 male on both ends. It is commonly used in serial RS-232 data applications.
|
Physical Characteristics
|
||
|---|---|---|

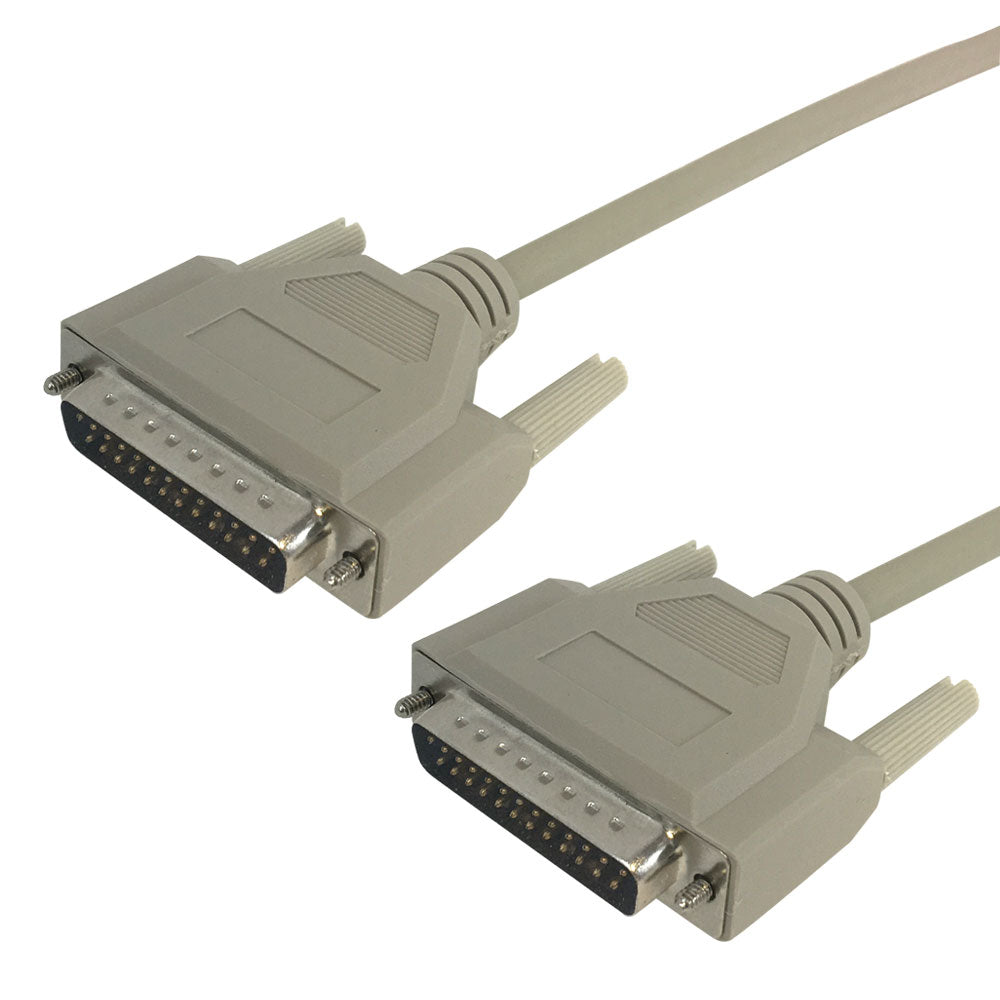

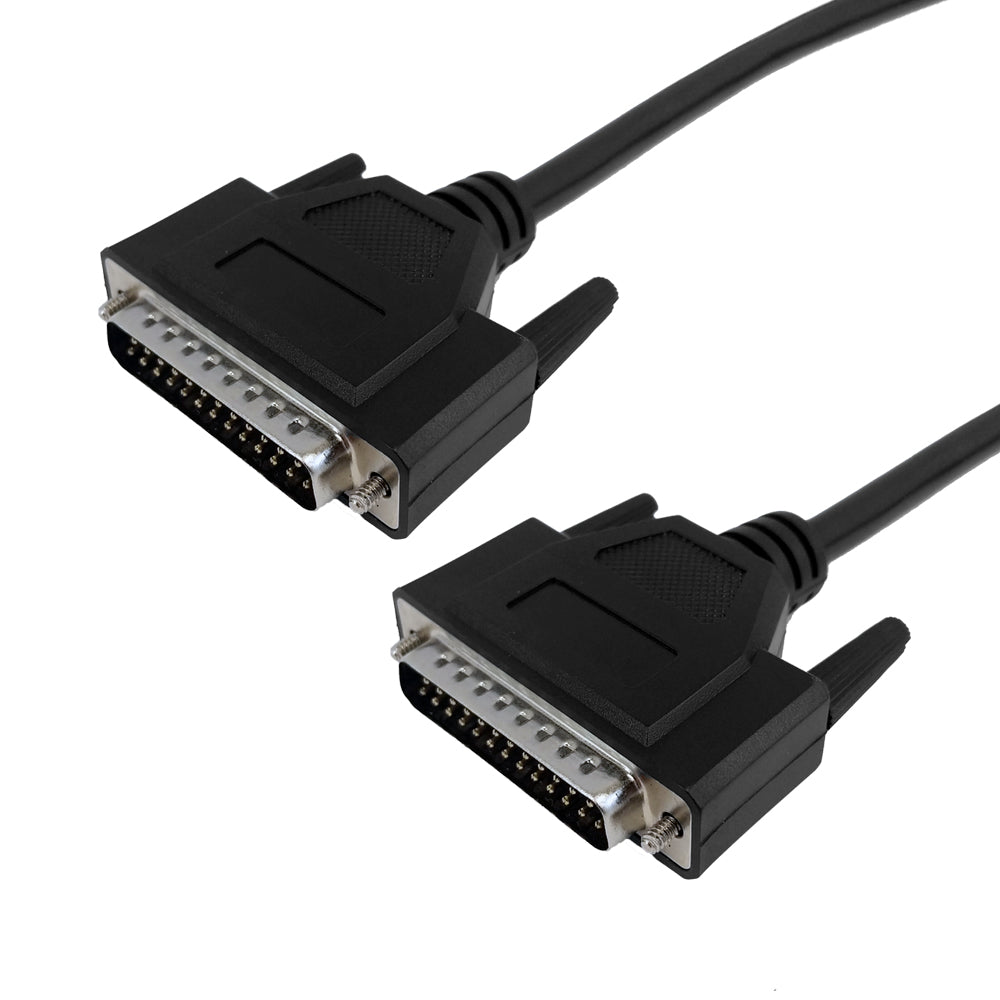

| Color | Beige/Black | |
| Number of Conductors | 25 Conductors | |
| Wire Gauge | 28AWG Stranded | |
| Jacket Material | PVC - Polyvinyl Chloride | |
| Cable Shielding | 100% Aluminum Mylar Foil Shield | |
|
Connectors
|
||
| Connector A | DB25 Male | |
| Connector B | DB25 Male | |
|
Pin Out
|
||
| DB25 Male - DB25 Male | ||
| 1 - 1 | ||
| 2 - 2 | ||
| 3 - 3 | ||
| 4 - 4 | ||
| 5 - 5 | ||
| 6 - 6 | ||
| 7 - 7 | ||
| 8 - 8 | ||
| 9 - 9 | ||
| 10-10 | ||
| 11-11 | ||
| 12-12 | ||
| 13-13 | ||
| 14-14 | ||
| 15-15 | ||
| 16-16 | ||
| 17-17 | ||
| 18-18 | ||
| 19-19 | ||
| 20-20 | ||
| 21-21 | ||
| 22-22 | ||
| 23-23 | ||
| 24-24 | ||
| 25-25 | ||
| Shell - Shell | ||
|
Environmental
|
||
| RoHS | Yes | |
|
Packaging Information
|
||
| Package Quantity | 1 | |
|
Warranty Information
|
||
| Warranty |
Limited Lifetime | |
| 3ft | 6ft | 10ft | 15ft | 25ft | 50ft | 100ft |
|---|---|---|---|---|---|---|
| 0.35 lbs | 0.50 lbs | 0.65 lbs | 0.70 lbs | 1.35 lbs | 2.65 lbs | 4.80 lbs |
