Description

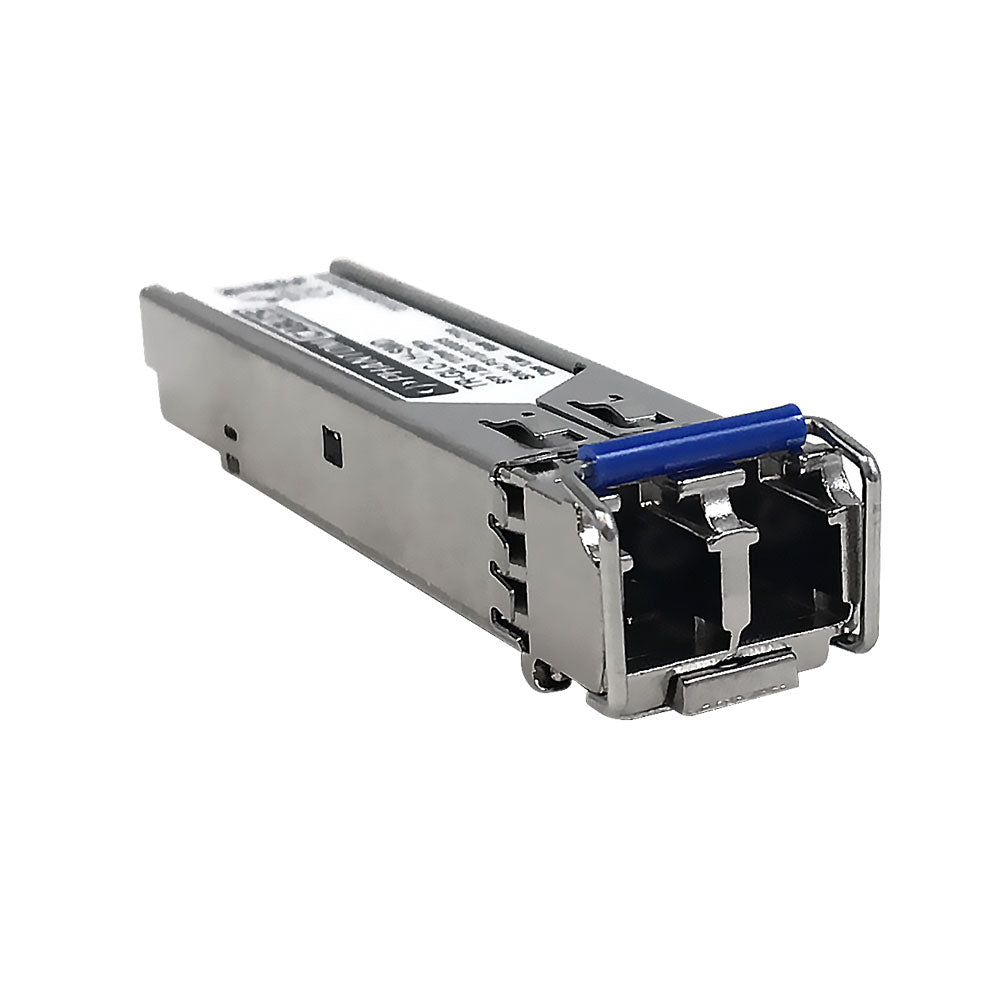

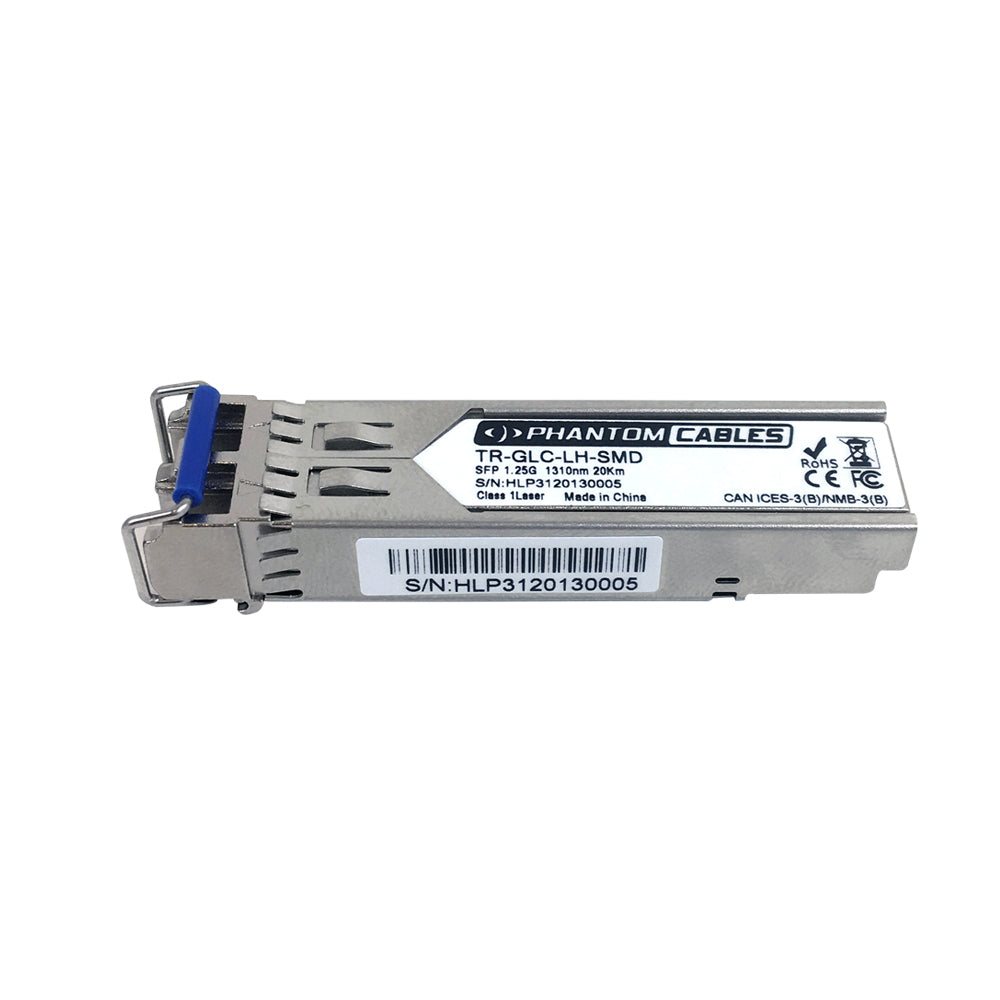

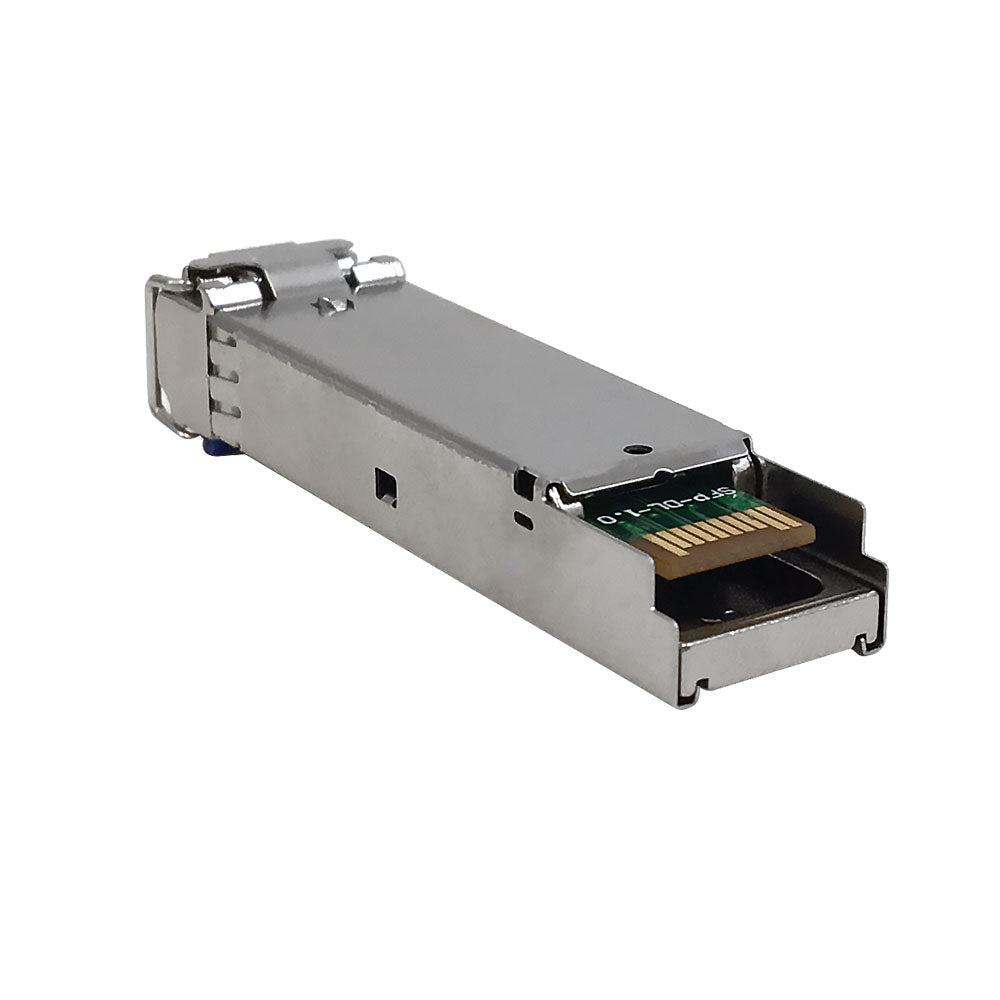

This is a Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 1.25 Gbps up to 10km over singlemode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
| Physical Characteristics |
||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors |
||
| Connector | LC Duplex | |
| Performance |
||
| Media Supported | 1000Base-LX Singlemode Fiber |
|
| Maximum Transmission Distance | 10km |
|
| Wave Length | 1310nm | |
| DDM Support | Yes | |
| Certifications |
||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information |
||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information |
||
| Warranty | Limited Lifetime | |
