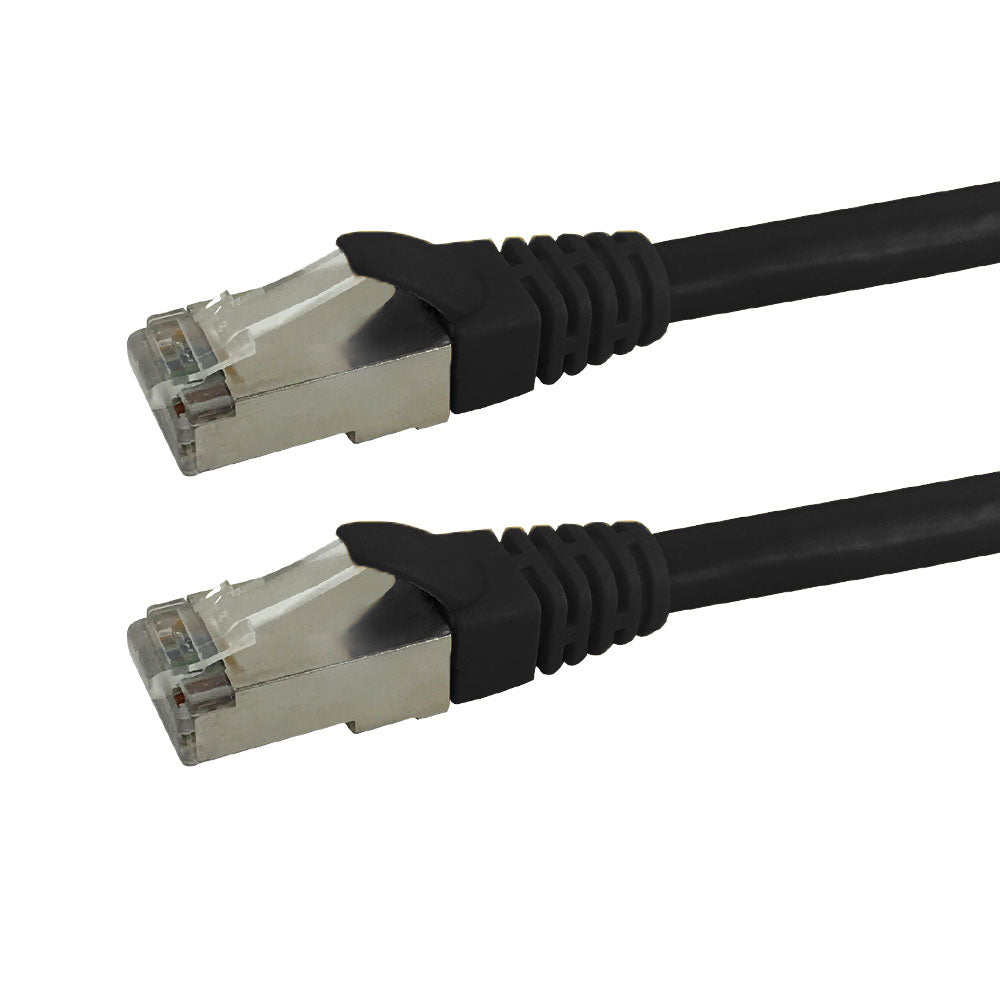

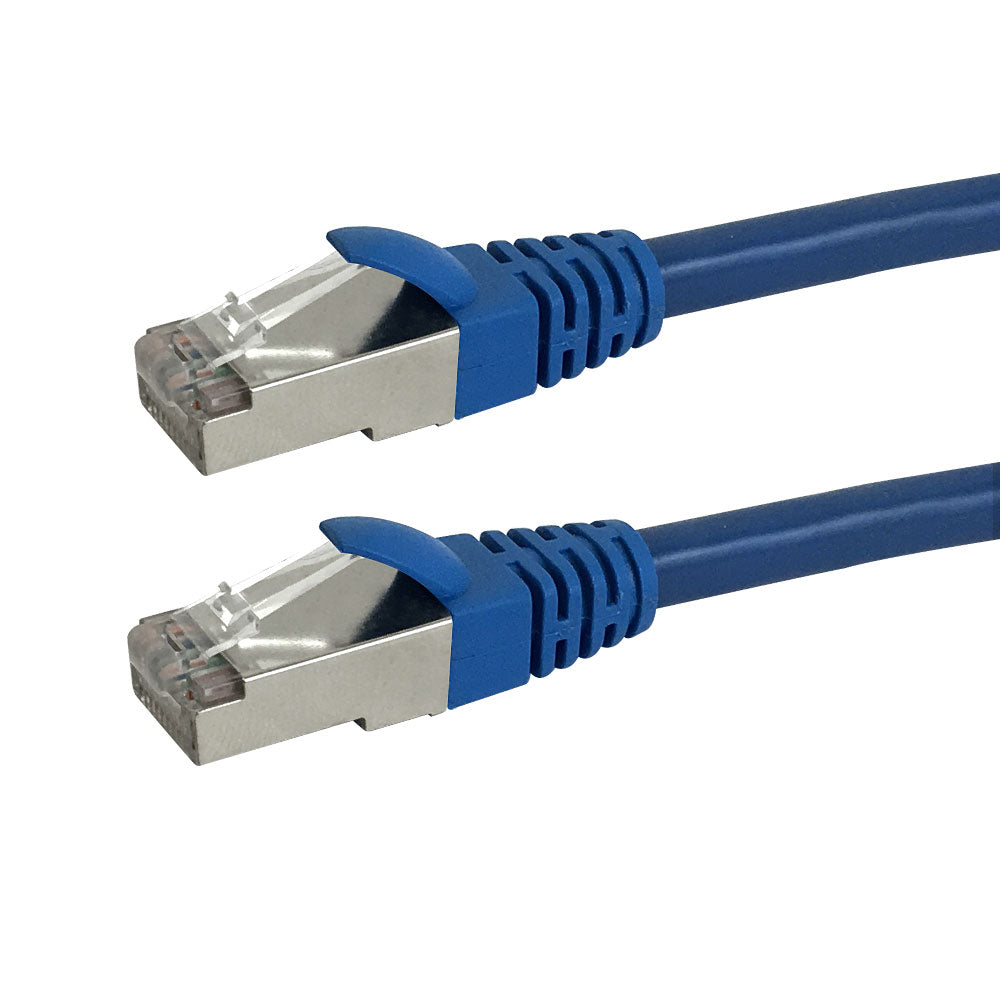

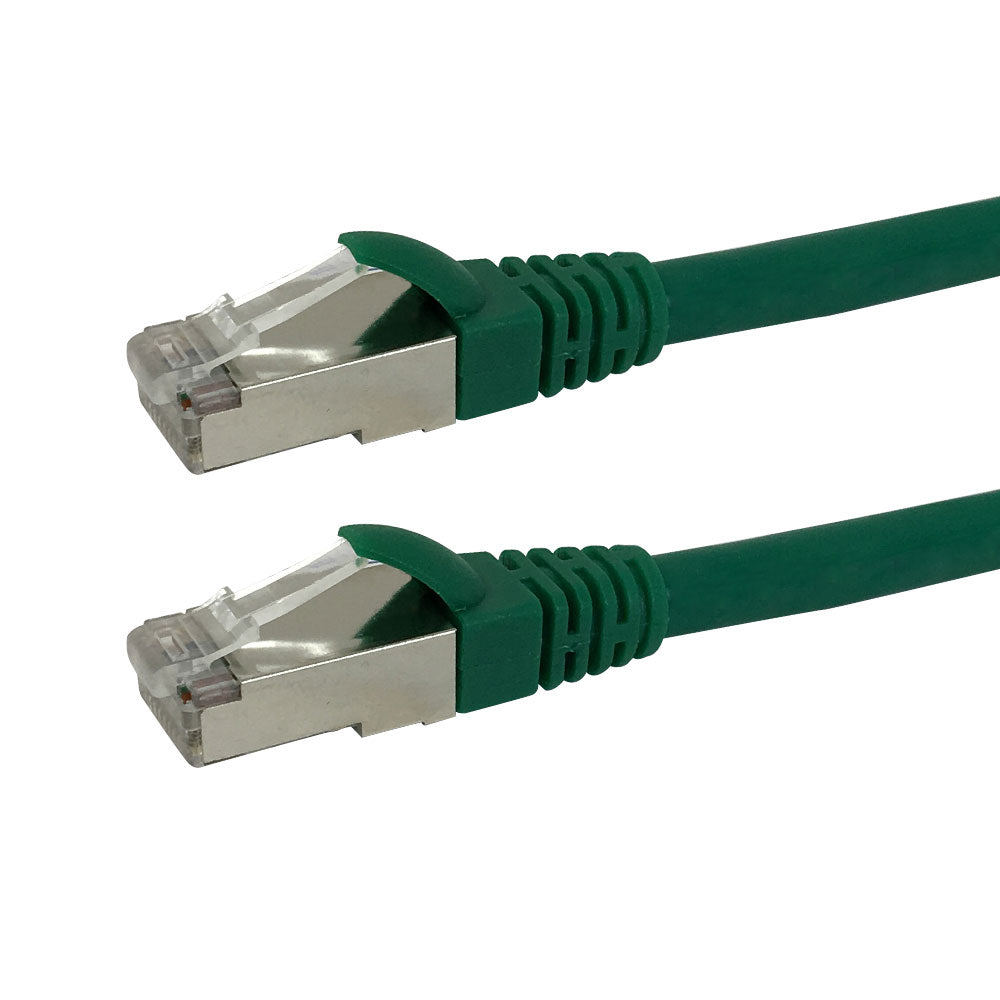

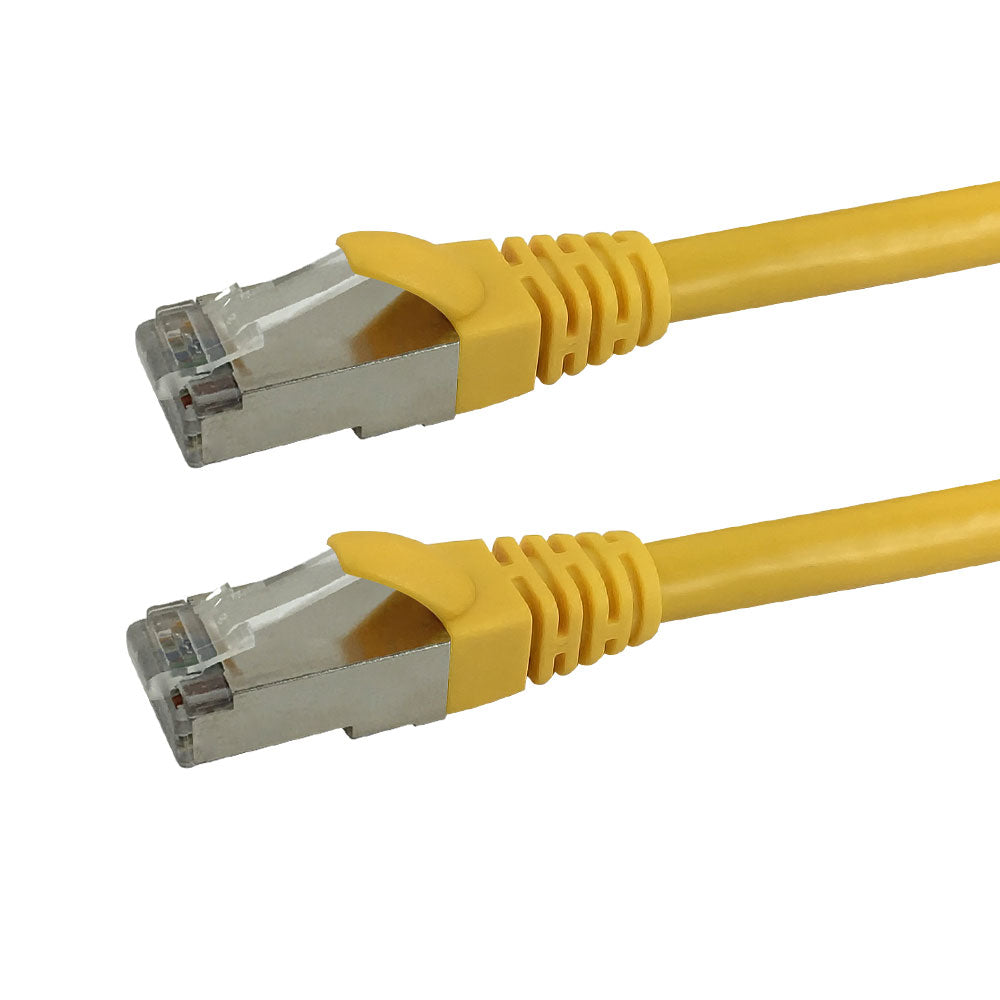

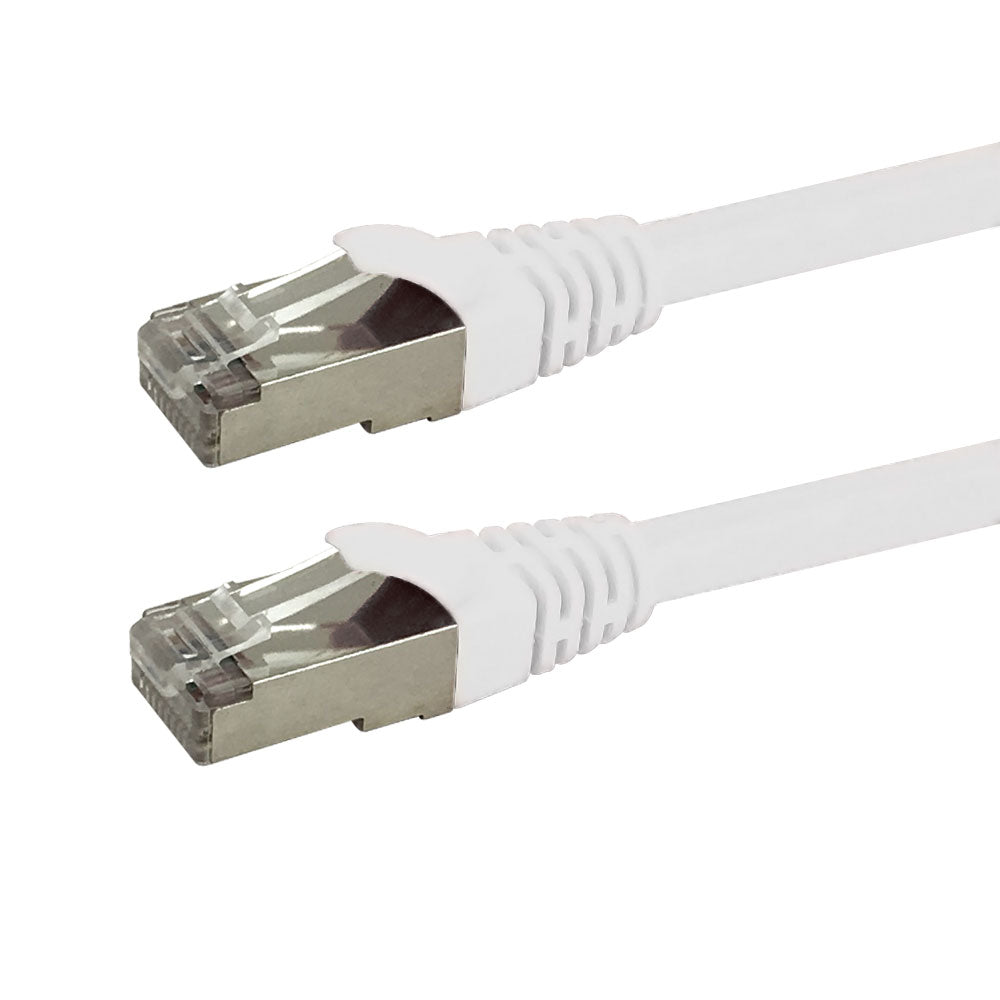

This custom Cat5e ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | ||
|---|---|---|
| Colors Available | Black/Blue/Green/Grey/Red/White/Yellow | |
| Connector Plating | Gold Plated 50 Micron | |
| Cable Diameter | 6.7mm | |
| Wire Gauge | 24AWG Solid |
|
| Shielding | F/UTP (100% Overall Mylar Foil Shielded Pairs) |
|
| Pairs | 4 | |
| Fire Rating | CMR Riser Rated | |
| Color Code | 568B | |
| Temperature Rating | 75 Deg C | |
| Jacket Type | PVC | |
| Connectors | ||
| Connector A | RJ45 Long Body Male | |
| Connector B | RJ45 Long Body Male | |
| Performance | ||
| Frequency | 350 MHz | |
| Approvals | ||
| c(ETL)us | Compliant - Cable | |
| NEC Compliance | Article 800 CMR - Cable | |
| Flammability Standard Compliance (Cable) |
Communications Cables (R2021) [CSA C22.2#214:2017 Ed.8+U1;U2] Communications Cables [UL 444:2017 Ed.5+R:16Jun2021] |
|
|
ANSI/TIA 568.C.2 ANSI/TIA 568.D |
Compliant | |
| ISO/IEC 11801-1 IEC61156-5 | Compliant | |
| Environmental | ||
| RoHS | Compliant | |
| Reach | Compliant | |
| Package Information | ||
| Package Quantity | 1 | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
