Description

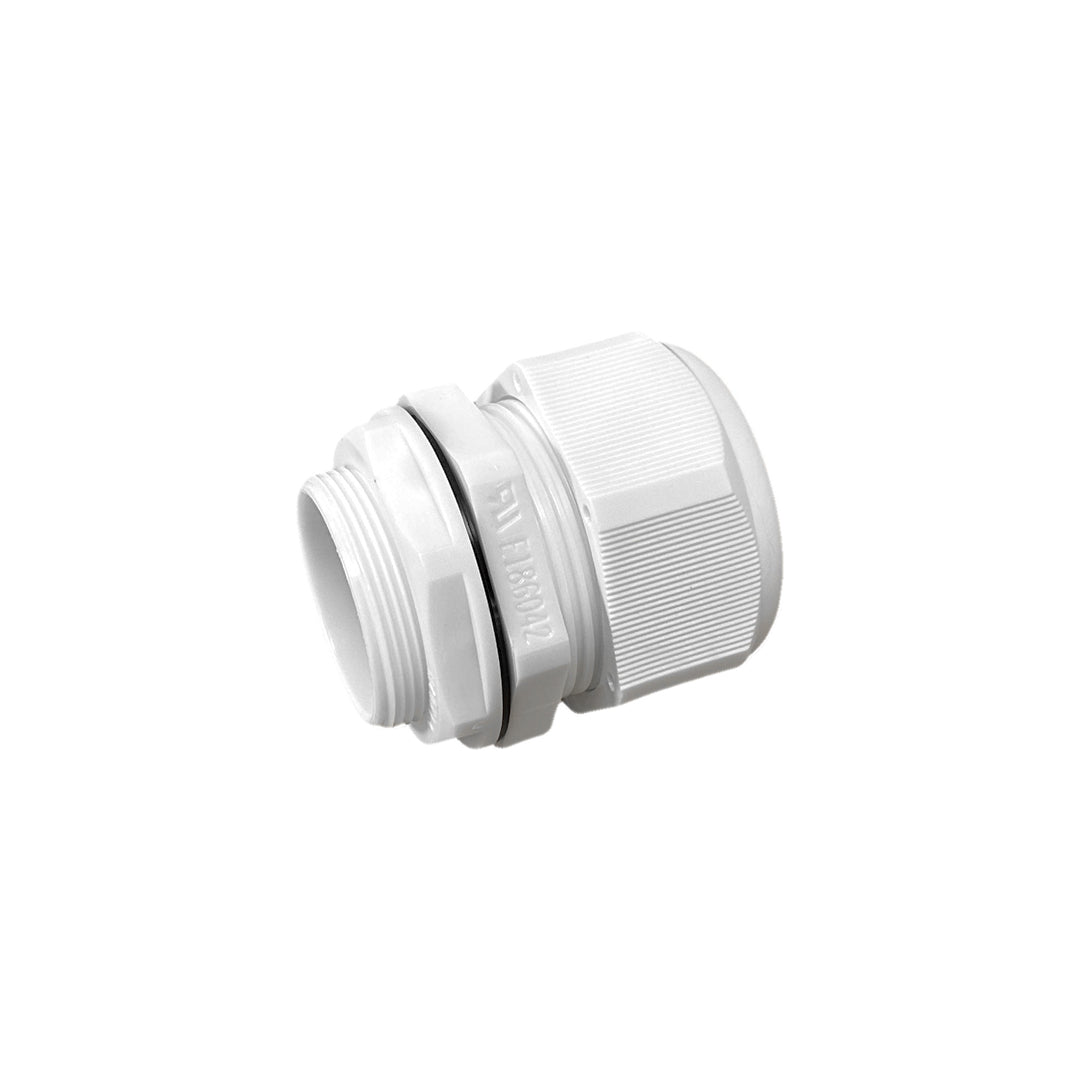

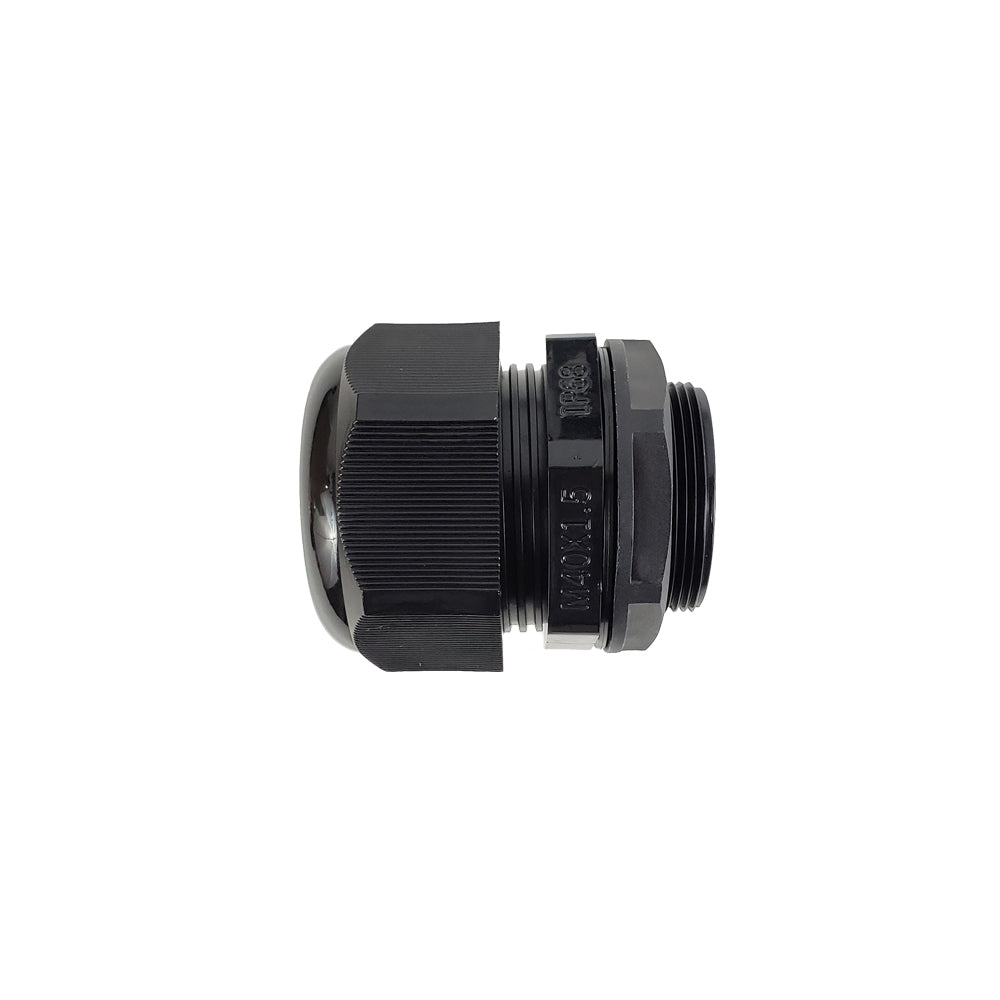

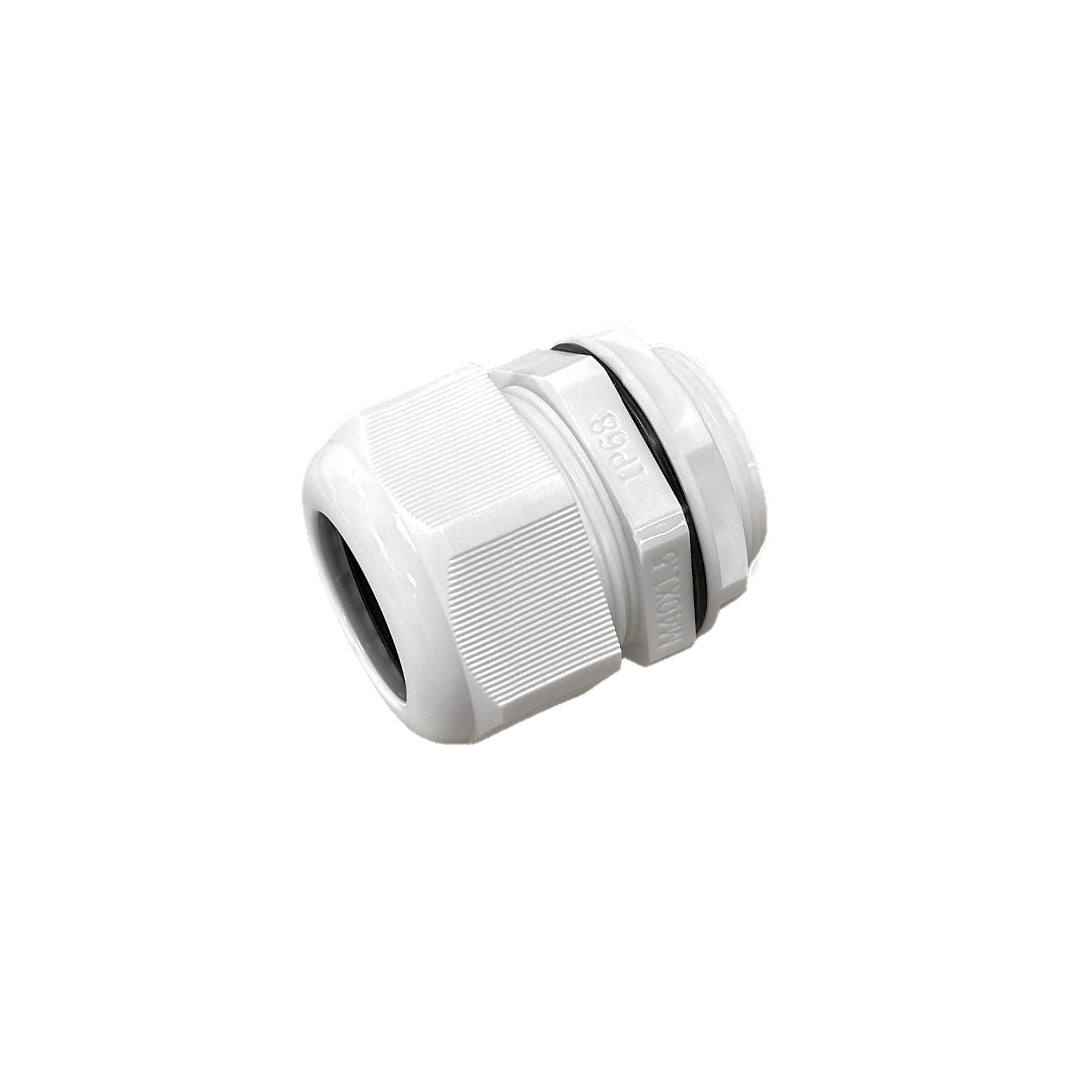

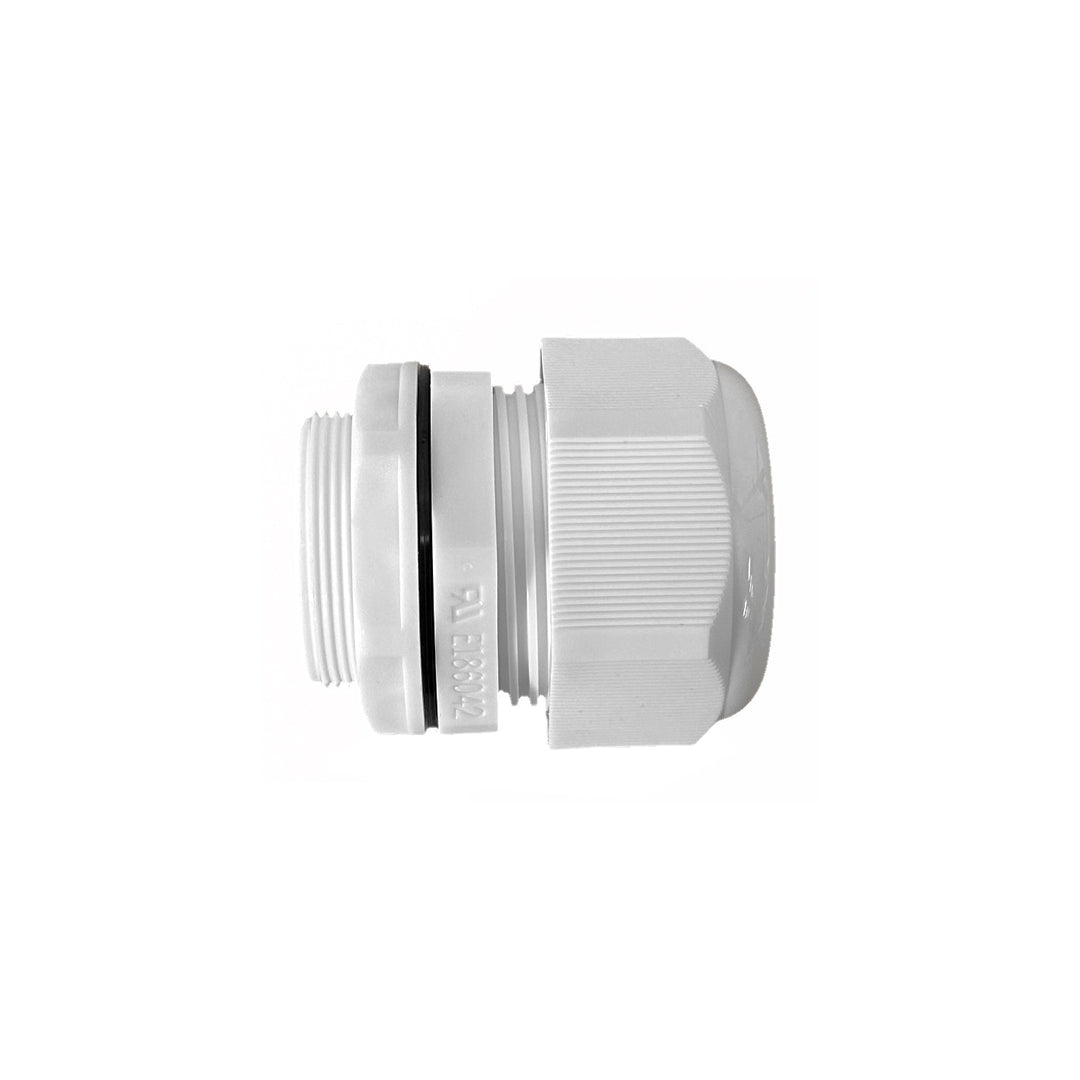

This cable gland has a metric thread pattern of M40xP1.5 and accommodates a cable size of 22 to 32mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
|
Physical Characteristics
|
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black / White | ||||||||||||||||||
| Material | Nylon 66 | ||||||||||||||||||
| Thread | M40xP1.5 | ||||||||||||||||||
| Mounting Hole | 40.0 ~ 40.4 mm[1.57 ~ 1.59 inches] | ||||||||||||||||||
| Cable Range | 22 ~ 32 mm [0.87 ~ 1.26 inches] | ||||||||||||||||||
|

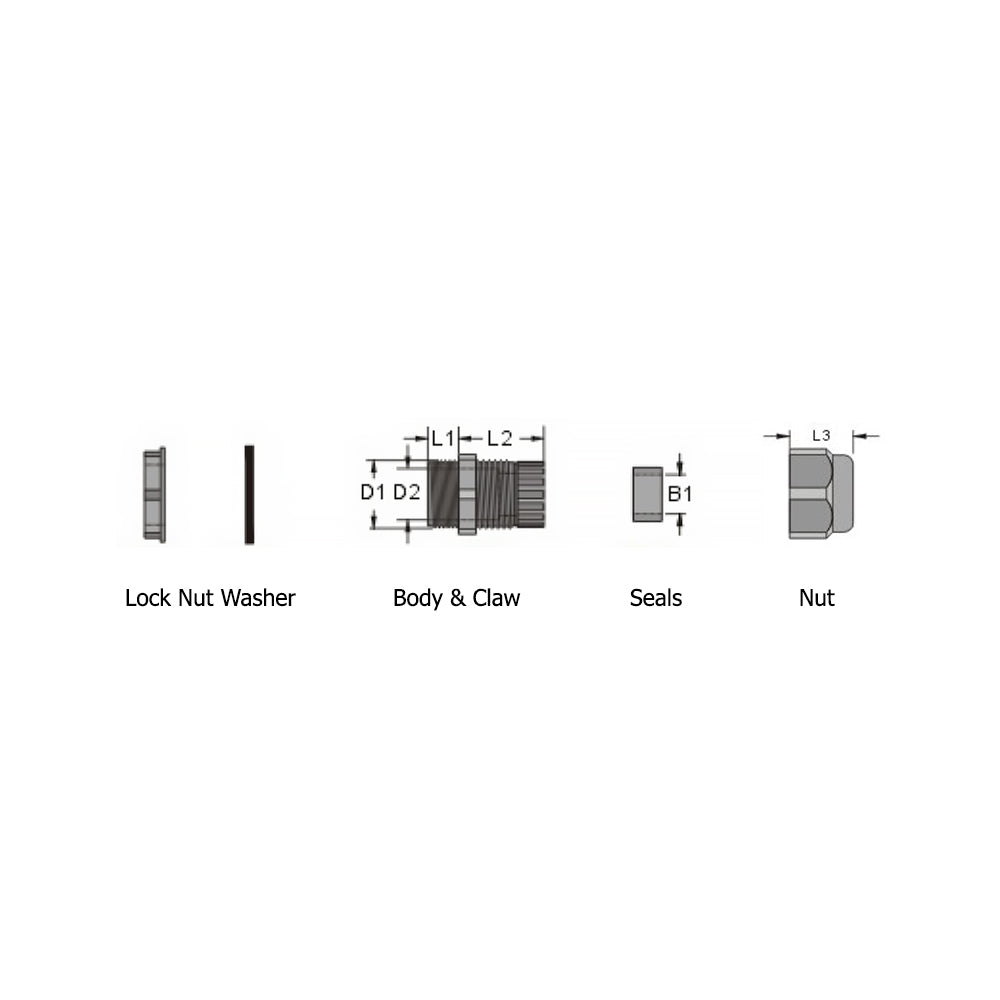

Dimensions (mm) |
|
||||||||||||||||||
| Flammability Rating | UL94V-2 | ||||||||||||||||||
| IP68 Rated | Yes | ||||||||||||||||||
|
Approvals
|
|||||||||||||||||||
| UL | Yes | ||||||||||||||||||
| RoHS | Yes | ||||||||||||||||||
|
Packaging Information
|
|||||||||||||||||||
| Package Quantity | 1 | ||||||||||||||||||
| Product Weight | 0.2 lbs [0.09kg] | ||||||||||||||||||
