This cable gland has a metric thread pattern of M25xP1.5 and accommodates a cable size of 11 to 17mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Physical Characteristics
|
Color |
Black |
Material |
Nylon 66 |
Thread |
M25xP1.5 |
Mounting Hole |
25.0 ~ 25.4 mm[0.98 ~ 1.00 inches] |
Cable Range |
11 ~ 17 mm[0.43 ~ 0.67 inches] |

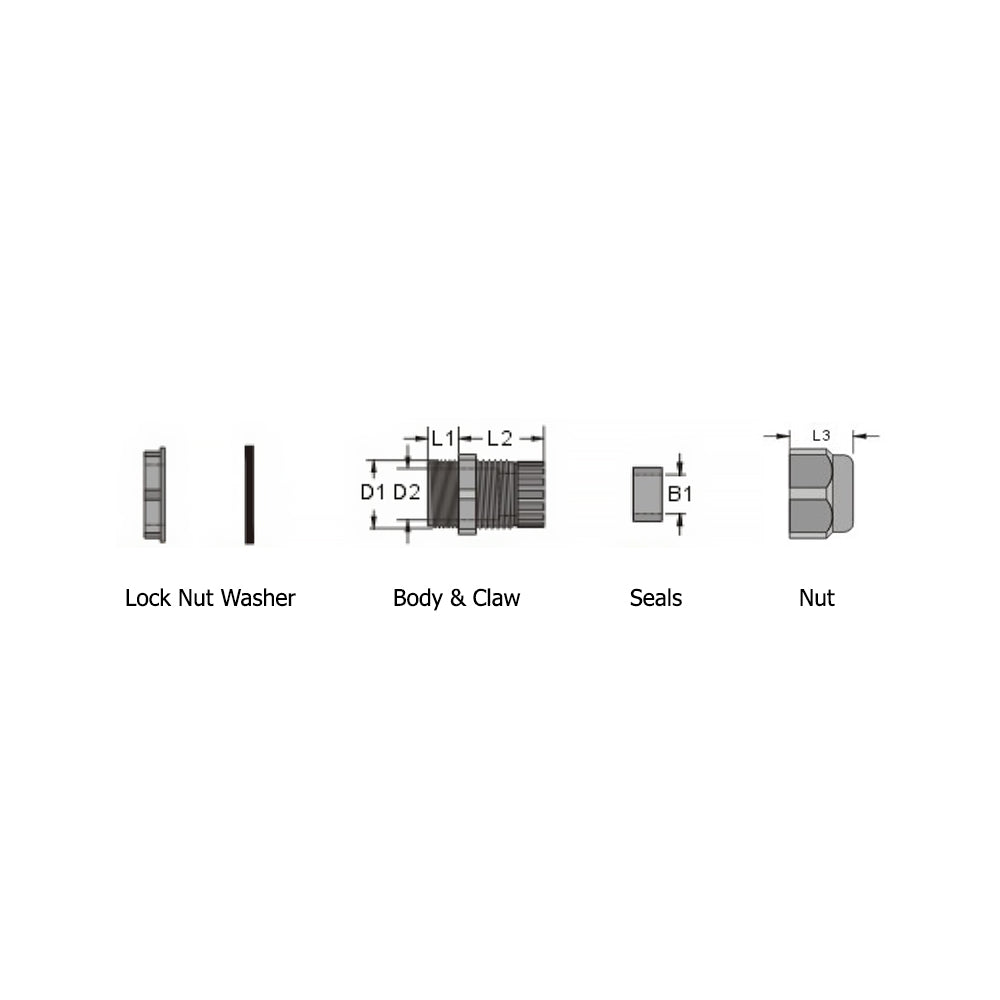

Dimensions (mm)
|
D1
|
D2
|
B1
|
L1
|
L2
|
L3
|
25.0mm
|
18.0mm
|
17.1mm
|
10.0mm
|
30.0mm
|
20.0mm
|
0.98in
|
0.71in
|
0.67in
|
0.39in
|
1.18in
|
0.78in
|
|
Flammability Rating |
UL94V-2 |
IP68 Rated |
Yes |
Approvals
|
UL |
Yes |
RoHS |
Yes |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
0.2 lbs [0.09kg] |
