Description

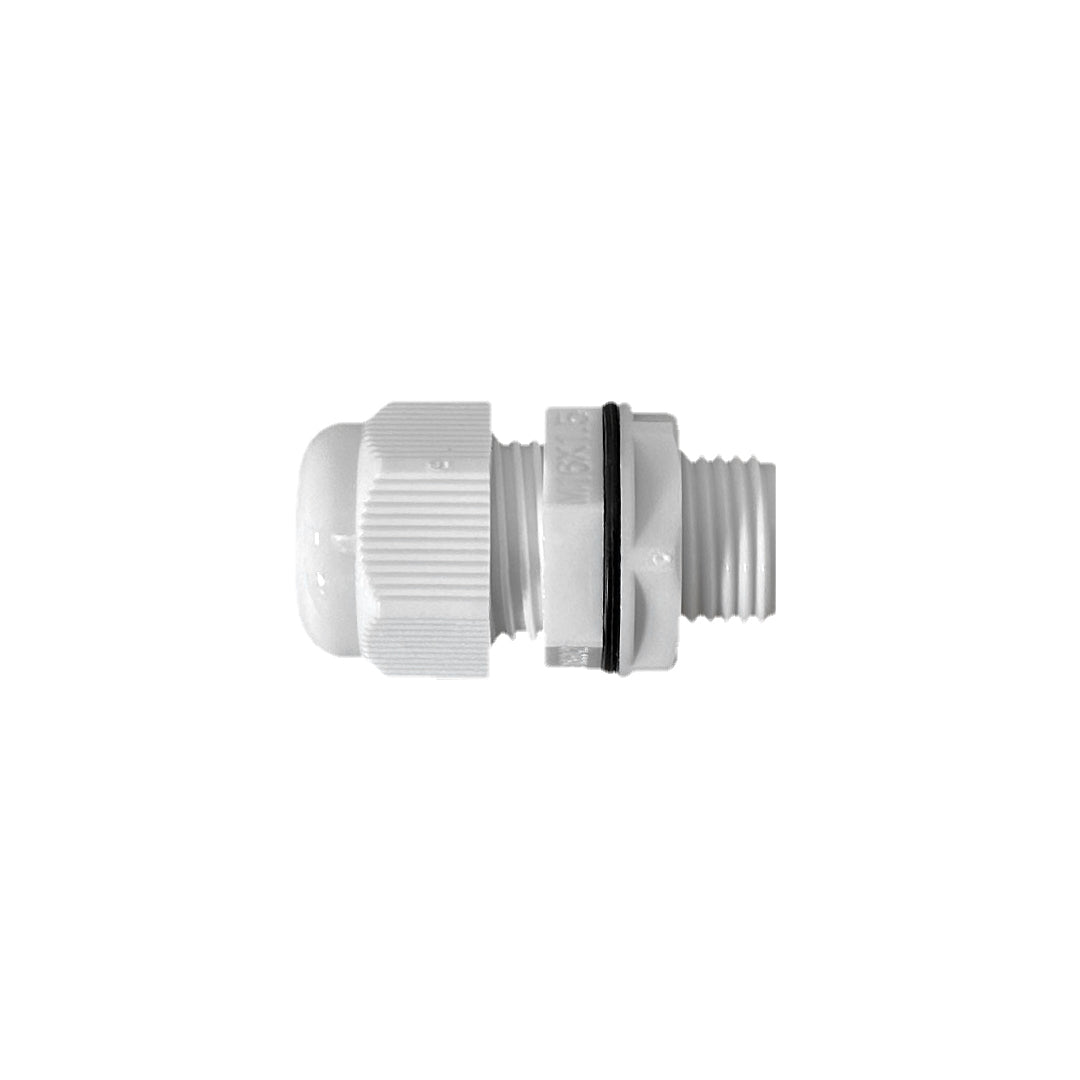

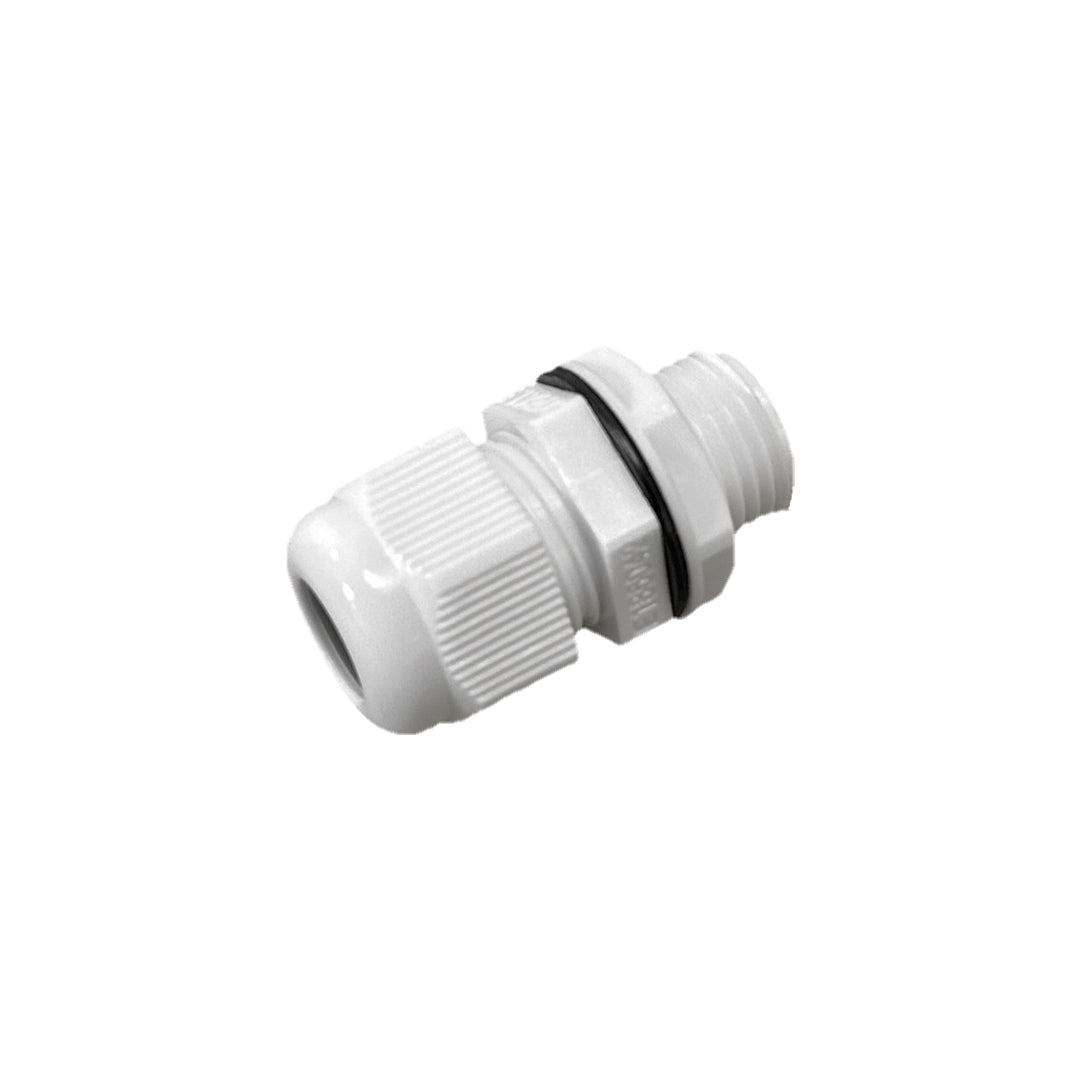

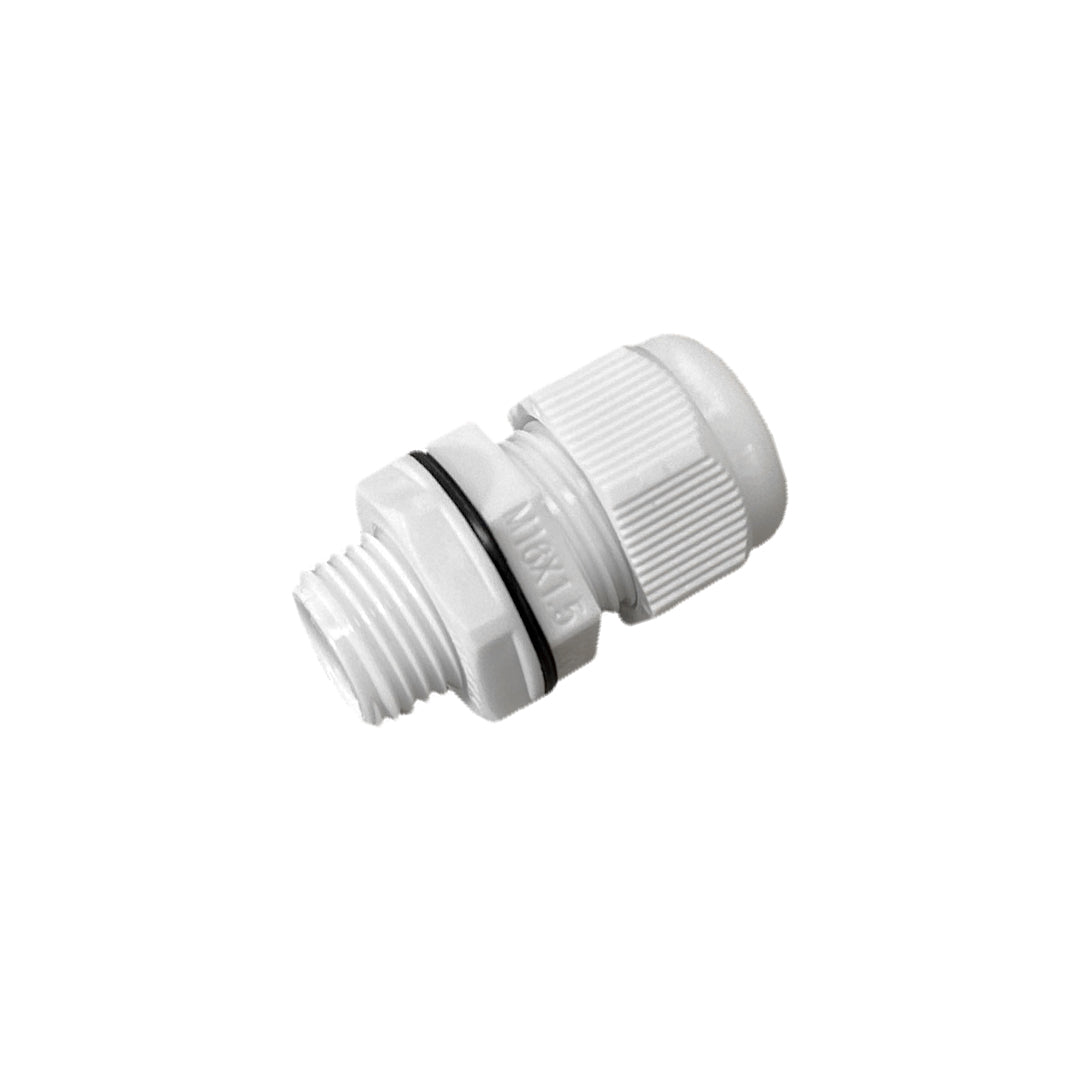

This cable gland has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
| Physical Characteristics | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black / White | ||||||||||||||||||
| Material | Nylon 66 | ||||||||||||||||||
| Thread | M16xP1.5 | ||||||||||||||||||
| Mounting Hole | 16.0 ~ 16.3 mm[0.63 ~ 0.64 inches] | ||||||||||||||||||
| Cable Range | 5 ~ 10 mm[0.20 ~ 0.39 inches] | ||||||||||||||||||
|

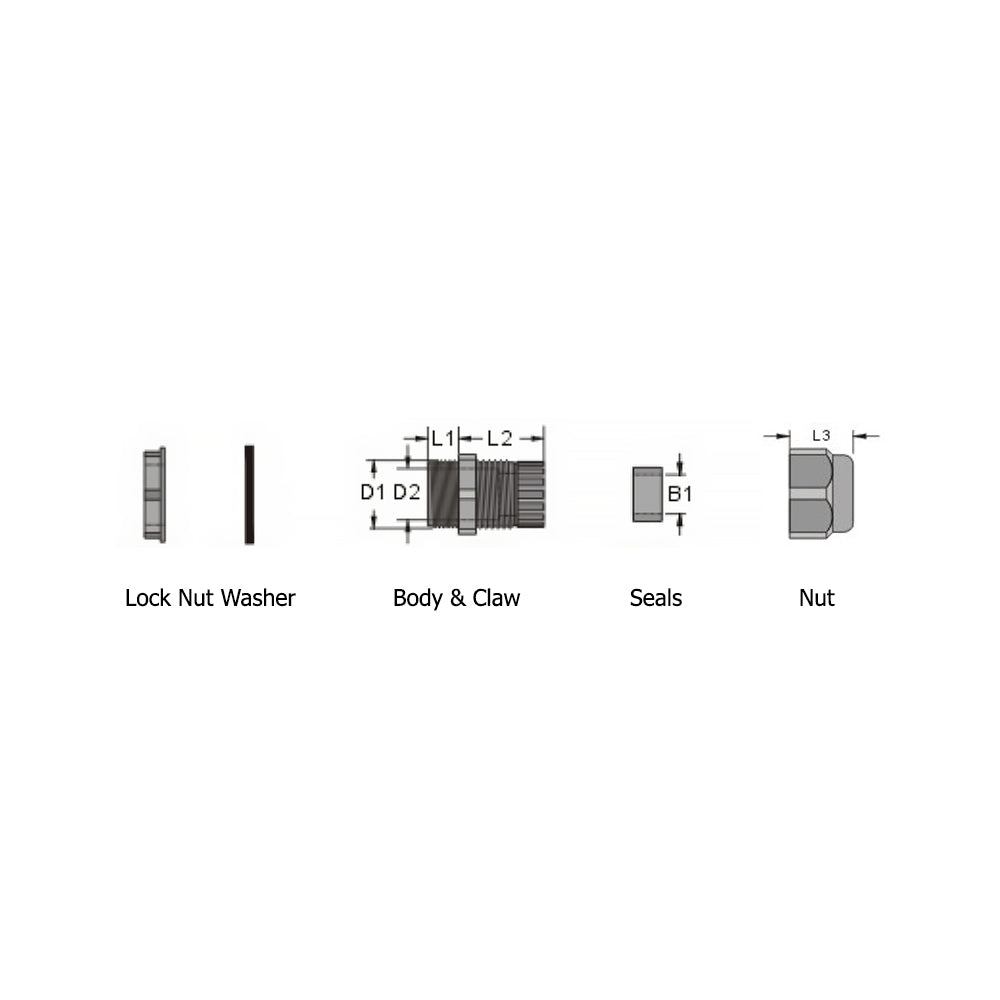

Dimensions (mm) |
|
||||||||||||||||||
| Flammability Rating | UL94V-2 | ||||||||||||||||||
| IP68 Rated | Compliant | ||||||||||||||||||
| Approvals | |||||||||||||||||||
| UL | Compliant | ||||||||||||||||||
| RoHS | Compliant | ||||||||||||||||||
| Packaging Information | |||||||||||||||||||
| Package Quantity | 1 | ||||||||||||||||||
| Product Weight | 0.2 lbs [0.09kg] | ||||||||||||||||||
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CG-M16-L | Black | 0.2 lb |
| CG-M16WH-L | White | 0.2 lb |
