Description

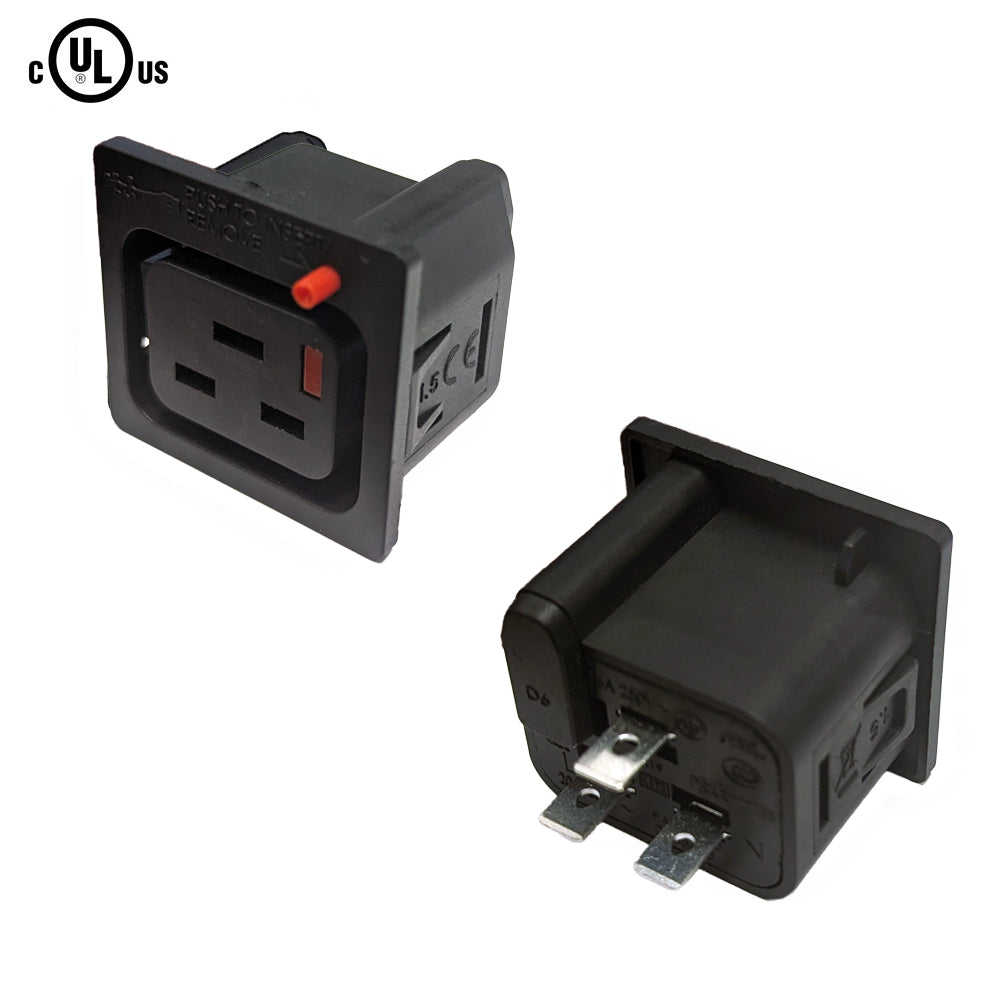

This power outlet has a locking female C19 connector on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C20 power cable to the locking C19 power outlet. Compatible with any C20 cable.
| Physical Characteristics | |
|---|---|
| Connection Type | Snap-in Mounting From Front |
| Color | Black |
| Material (Body) | Thermoplastic UL94V-0 |
| Connector Plating | Nickel |
| Rating | 16A/250VAC |
| Insulation Resistance | 10M (500VDC, 1Min.) |
| Dielectric Strength | 2KV (50Hz 1 Min) to Accessible Surfaces |
| Panel Mount | Yes |
| Panel Thickness | Black & White IEC320 Snap-in 1mm or 1.5mm |
| Solder/QC Dimensions | 6.3 x 0.8mm |
| Manufacturing Information | |
| IEC-Lock Part # | PA195015BK |
| Connectors | |
| C19 | Female |
| Solder/Quick Connect | Male |
| Approvals | |
| Certification | c(UL)us |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.05 lbs [0.02kg] |
