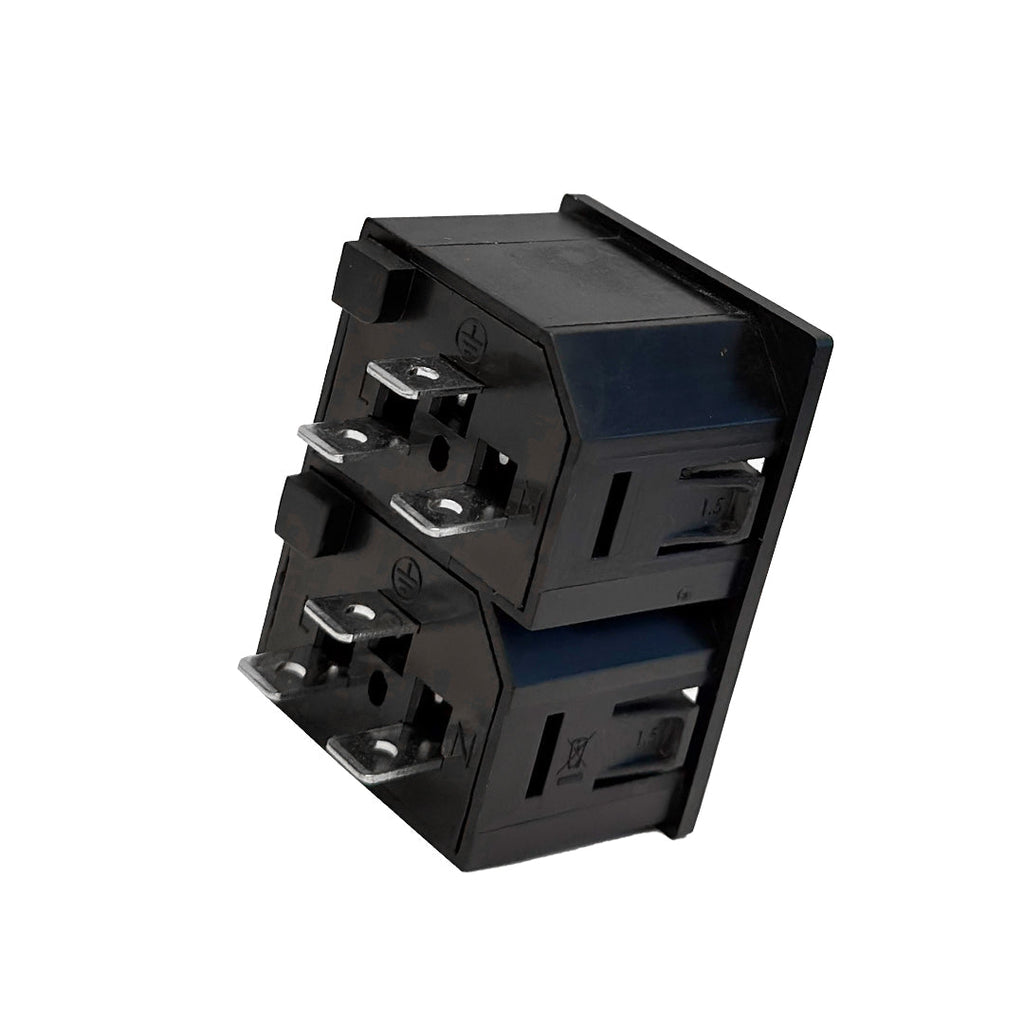

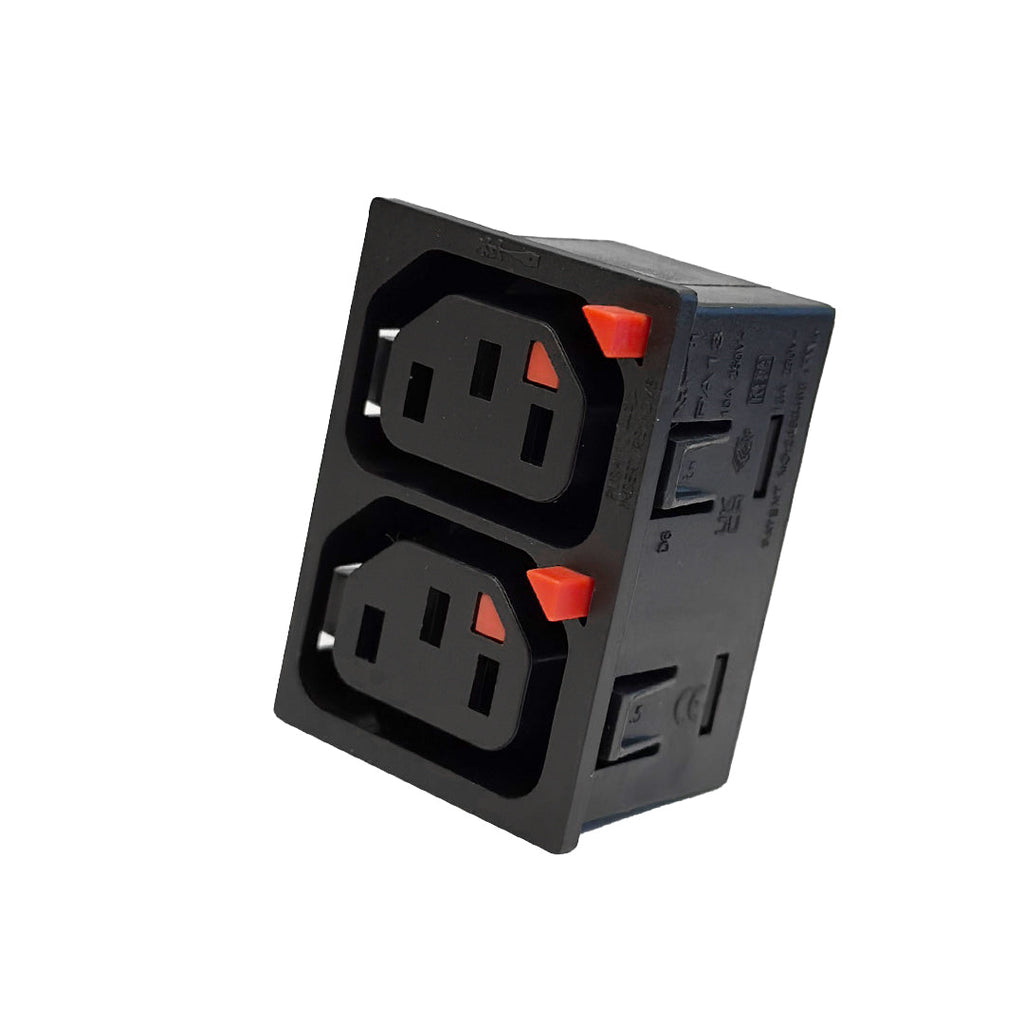

This power outlet has a locking female C13 connector on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.
| Physical Characteristics |
| Connection Type |
Snap-in Mounting From Front |
| Color |
Black |
| Material (Body) |
Black Thermoplastic UL94V-0 |
| Connector Plating |
Nickel |
| Rating |
10A/250VAC |
| Insulation Resistance |
10MΩ (500VDC, 1Min.) |
| Dielectric Strength |
2KV (50Hz 1 Min) to Accessible Surfaces |
| Panel Mount |
Compliant |
| Panel Thickness |
Black IEC320 Snap in 1.5mm Panel Thickness |
| Solder/QC Dimensions |
6.3 x 0.8mm |
| Temperature Rating |
20°C to + 70°C |
| Lock Retention |
>100N |
| Manufacturing Information |
| IEC-Lock Part # |
PA135015BK1S2R
|
| Connectors |
| C13 |
Female |
| Solder/Quick Connect |
Male |
| Approvals |
| Certification |
IEC /BS EN 60320-1: 2021
IEC /BS EN 60320-3
UL 60320-1
UL 60320-3
CSA C22.2 60320-1-19
CSA C22.2 60320-3
|
| CE |
Compliant
|
| Packaging Information |
| Package Quantity |
1 |
